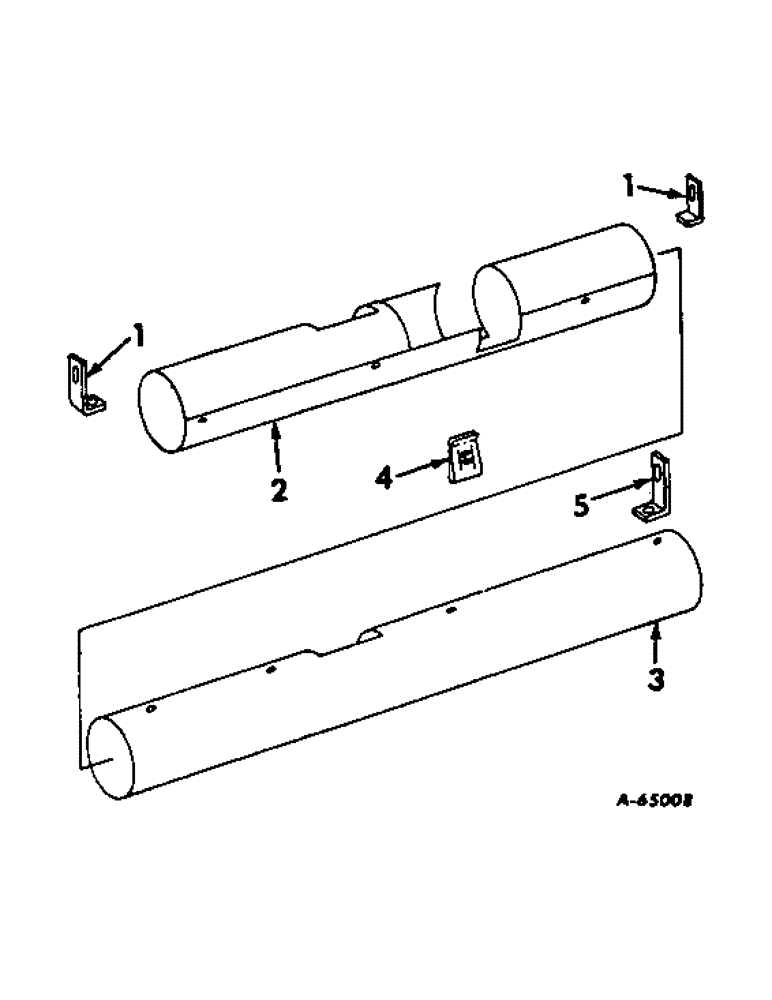

Запчасти Case IH 715 (07-10) - DRIVE TRAIN, FINAL DRIVE SHAFT SHIELD, S/N 26000 AND BELOW Drive Train

1

568810R1

CLIP, final drive shaft shield

6шт.

271506

DISC

7/16-20 znd hex

1шт.

193490

SCREW, 7/16 x 4-1/4 znd hex-hd cap

1шт.

21029R1

WASHER

15/32 x 1 x 11 ga

1шт.

2

588802R1

SHIELD, final drive shaft LH

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

588803R1

SHIELD, final drive shaft RH

1шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

564791R1

SPRING NUT

1/4 speed

7шт.

5

634978R1

CLIP, final drive shaft LH shield

6шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.
