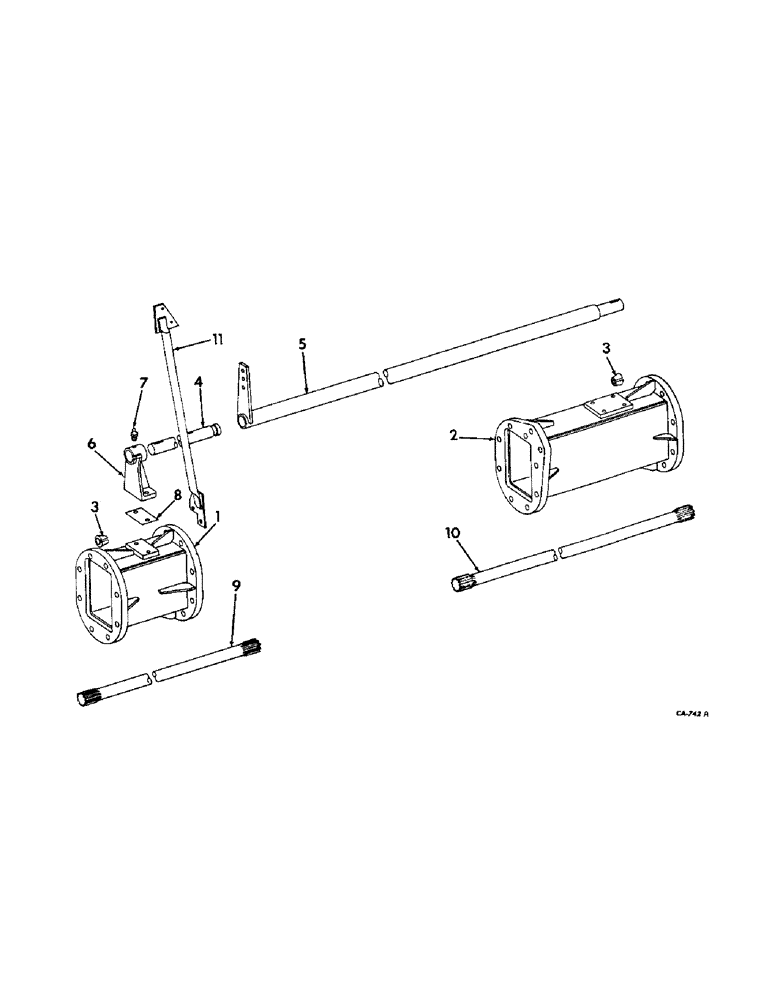

Запчасти Case IH 715 (07-09) - DRIVE TRAIN, MAIN AXLE 120 IN. TREAD EXTENSION, FOR USE W/OPERATORS PLAT. EXTENSION Drive Train

1

173227C1

EXTENSION ASSY, main axle LH, serial no. 26000 and below, for 18.4-26 main wheel tires

1шт.

Ref #1 - 173227C1 is 14.54" 11/17/95

1шт.

1

173229C1

EXTENSION ASSY, main axle LH, for 18.4-26 main wheel for serial no. 26001 and above, for 23.1-26 main wheel tires

1шт.

Ref #1A - 173229C1 is 9.94" 11/17/95

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 X 2-1/4 hex-hd type 8

1шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/2 hex-hd type 8

1шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex type 8

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 znd int-tooth lock

1шт.

2

173228C1

EXTENSION ASSY, main axle RH, serial no. 26000 and below, for 18.4-26 main wheel tires

1шт.

Ref #2 - 173228C1 is 14.94 " 11/17/95

1шт.

2

190777C1

EXTENSION ASSY, main axle RH, for 18.4-26 main wheel for serial no. 26001 and above, for 23.1-26 main wheel tires

1шт.

Ref #2A - 190777C1 is 13.17" 11/17/95

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 znd hex-hd mach

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 hex-hd type 8

1шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/2 hex-hd type 8

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex

1шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex type 8

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

366866R1

RING

WASHER, 5/8 znd rib lock

1шт.

138557

WASHER,Int Tooth, 5/8"

5/8 int lock

1шт.

3

54700R1

DOWEL

L, main axle extension

8шт.

4

151248C1

SHAFT, wheel brake LH, serial no. 26000 and below, for 18.4-26 main wheel tires

1шт.

4

150426C1

SHAFT, main axle extension LH, for 18.4-26 main wheel for serial no. 26001 and above, for 23.1-26 main wheel tires

1шт.

5

151246C91

PIPE ASSY, wheel brake RH torque, serial no. 26000 and below, for 18.4-26 main wheel tires

1шт.

5

190825C1

PIPE ASSY, wheel brake RH torque, for 18.4-26 main wheel for serial no. 26001 and above, for 23.1-26 main wheel tires

1шт.

6

150428C1

HOUSING, wheel brake LH pivot

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NF str lub

1шт.

8

150427C1

STRAP, wheel brake LH pivot housing

4шт.

9

173167C1

SHAFT, axle drive LH, serial no. 26000 and below, for 18/4-26 main wheel tires

1шт.

9

173166C1

SHAFT, axle drive LH, for 18/4-26 main wheel for serial no. 26001 and above, for 23/1-26 main wheel tires

1шт.

10

173171C1

SHAFT, axle drive RH, serial no. 26000 and below, for 18.4-26 main wheel tires

1шт.

10

190827C1

SHAFT, axle drive RH, for 18.4-26 main wheel for serial no. 26001 and above, for 23.1-26 main wheel

1шт.

11

177483C1

BRACE ASSY, main axle extension

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk-crg

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 hex-hd type 8

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex type 8

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22264R1

WASHER

.406 x 1 x 7 ga

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22245R1

WASHER, .531 x 1 x 7 ga

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.
