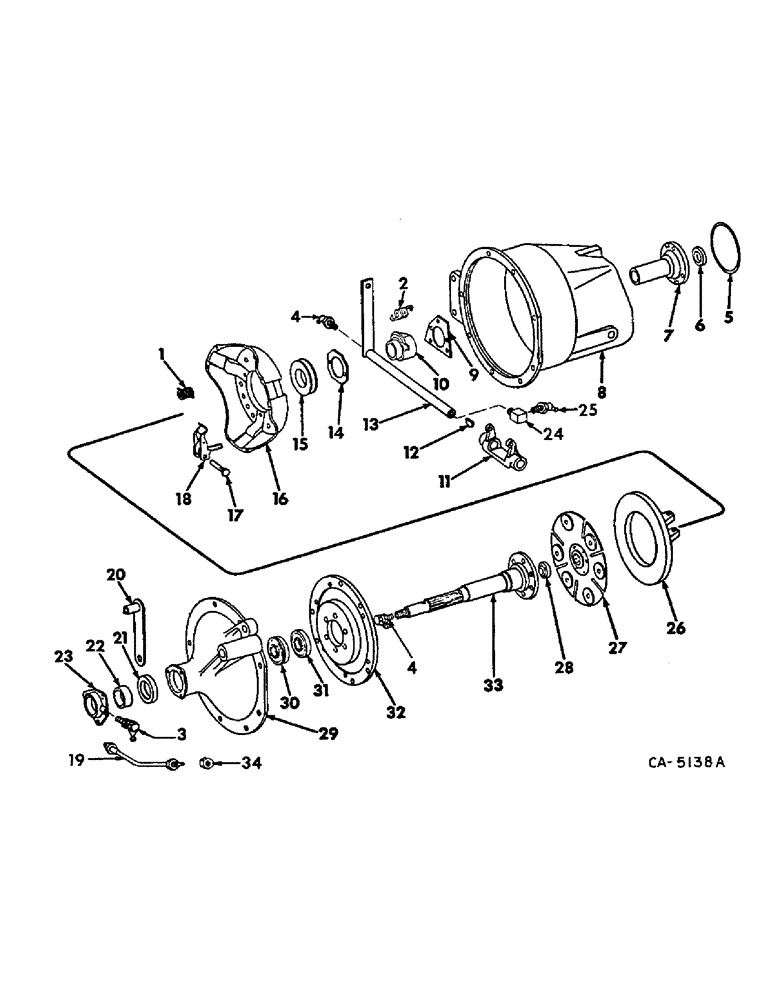

Запчасти Case IH 715 (07-07) - DRIVE TRAIN, CLUTCH AND CLUTCH HOUSING Drive Train

1

402524R1

SPRING

clutch

12шт.

2

806239R1

BUSHING

SPRING, clutch release bearing carrier

2шт.

3

19583R91

FITTING, 1/8-27 90 deg angle lub

1шт.

4

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg angle lub

2шт.

5

24807R1

O-RING,Rect, 4.25" ID x 4.5" OD, Cl 5

Clutch shaft bearing cap Rect, 4.25" ID x 4.5" OD, Cl 5

1шт.

6

184097C1

OIL SEAL

input shaft LH bearing oil

1шт.

7

573996R2

CAP, clutch shaft bearing

1шт.

27033R1

SCREW,Locking, 3/8"-16 x 1 3/8", G8

BOLT, 3/8 x 1-3/8 PHC p/t type 8

1шт.

8

574946R1

HOUSING, clutch

1шт.

26315R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

7/16 x 1-1/4 PHC P/T type 8

1шт.

9

379456R1

NO LONGER SERVICED

ANCHOR, clutch release bearing carrier inner

1шт.

10

584361R2

SLEEVE CYLINDER

CARRIER, clutch release bearing

1шт.

11

584392R1

NO LONGER SERVICED

YOKE, clutch release

1шт.

560171R1

SCREW, clutch release shaft set wire, 11 in. long-order from bulk stock

1шт.

12

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

3/16 x 7/8 Woodruff no. 11

1шт.

13

574906R91

SHAFT W/ARM, clutch release

1шт.

14

379463R1

ANCHOR

clutch release bearing carrier outer

1шт.

15

362028R92

BALL BEARING,52.39mm ID x 90.86mm OD x 20.5mm W

clutch release

1шт.

16

102317HA

LARGE PLATE

PLATE, back

1шт.

ITEM NO# 16 AND #26 ARE NSS. NEED TO ORDER A PART NO# 533702R91 PLATE ASSY - ITEM NO# 34B.

1шт.

17

29774HB

PIN

lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

18

43919HEX

LEVER

PACKAGE, clutch lever, consists of, (3) block 65820H, (3) cap 52406R1, (3) lever 91942R1, (3) nut 103026 (3) pin 80950H, (6) roller 86025H, (3) screw 65819H (3) spring 91941R1

1шт.

19

188654C91

HOSE

input shaft bearing lube, belt drive

1шт.

20

627387R91

SUPPORT W/SPACER, axle LH rear

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8 x 3 znd sq-nk crg

1шт.

18840R1

BOLT

3/4 x 2-3/4 znd hex hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex-hd mach

1шт.

280954

NUT,3/4"-10, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

21

380378R91

OIL RESERVOIR

SEAL, clutch housing cover oil

1шт.

22

633435R1

BUSHING

SPACER, propulsion sheave hub

1шт.

23

379937R1

CAP

clutch housing cover bearing

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

24

586983R1

ELBOW, lub fitting adapter

1шт.

25

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 45 deg angle lub

1шт.

26

102318HA

PLATE, pressure

1шт.

ITEM NO# 16 AND #26 ARE NSS. NEED TO ORDER A PART NO# 533702R91 PLATE ASSY - ITEM NO# 34B.

1шт.

27

533703R91

DISC

ASSY, clutch driven, 10 in.

1шт.

28

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING, clutch pilot

1шт.

29

379450R1

COVER, clutch housing

1шт.

103026

NUT,3/8"-24, G5

1шт.

560172R1

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

SCREW, 3/8-24 x 1-1/2 hex-hd

1шт.

30

ST341

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, input shaft outer

1шт.

31

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

input shaft inner

1шт.

32

379449R1

PLATE

clutch mounting

1шт.

102637

NUT,1/2"-13, G5

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

33

379448R1

SHAFT

transmission input

1шт.

23261R1

LOCK NUT,1"-14, GC

NUT, 1-14 elastic stop

1шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga

1шт.

34

581873R1

TUBE NUT,4.8 mm Length

lube hose, belt drive

1шт.

533702R91

LARGE PLATE

PLATE ASSY, clutch pressure, consist of, (1), lever, package 43919HEX, (3), pin 107762, (3), pin, lever 29774HB, (1), plate, back 102317HA, (1), plate 102318HA, (12) spring, 402524R1

1шт.

181340

BOLT,Hex, 5/16" - 24 x 1 1/8", Gr 5

SCREW, 5/16-24 x 1-1/8 hex-hd cap

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

1шт.
