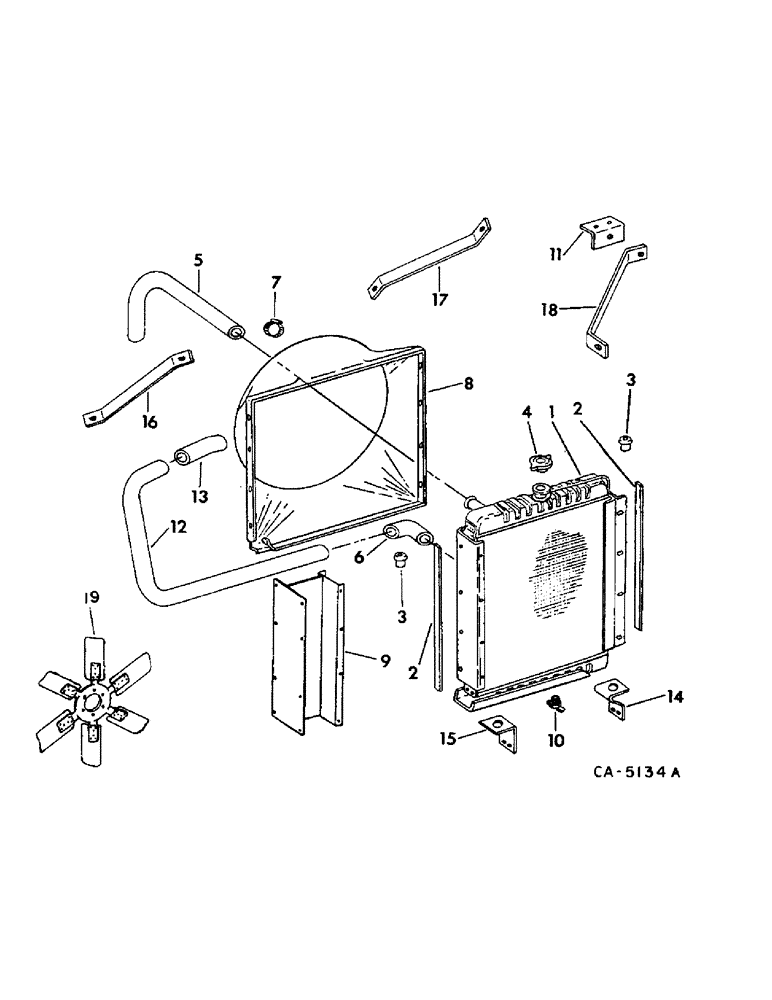

Запчасти Case IH 715 (06-03) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

400734R3

RADIATOR

ASSY, less pressure cap cock, 1/4 drain

1шт.

86982771

VALVE

COCK, 1/4 drain

1шт.

2

GASKET, radiator baffle, use 35.5 in. from 4 ft. length marked 73222C1

2шт.

3

400159R1

BUMPER

MOUNT, radiator vibration

2шт.

16873R1

BOLT,Short NK, 7/16"-14 x 2 1/4", G2

7/16-18 x 2-1/4 znd sq-nk crg

1шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, , ESNA 7/16"-14, GB

1шт.

20609R1

WASHER

15/32 x 1-3/4 x 11 ga C-Z

1шт.

4

530874R1

CAP

radiator pressure

1шт.

5

107678C1

RADIATOR HOSE,2.00" ID x 12.00"

2.00" mm ID X 12.00", Inlet

1шт.

6

680514R1

LARGE HOSE

HOSE, radiator oulet

1шт.

7

995221R1

CLAMP

radiator hose

6шт.

8

400134R2

SHROUD

fan

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 h/hd tap

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

9

533816R1

SPACER ASSY, radiator, combines w/belt drive

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 GA C-Z

1шт.

10

86982771

VALVE

COCK, radiator drain

1шт.

11

190452C1

PLATE, radiator brace

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

107684C1

TUBE

radiator outlet

1шт.

13

107689C1

RADIATOR HOSE,2.00" ID x 4.50"

Water Pump Inlet 2.00" ID x 4.50"

1шт.

14

190731C1

SUPPORT, radiator left

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 type 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

15

190735C1

ANGLE, radiator right

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1-4 type 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

16

190736C1

SUPPORT, radiator left

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

190737C1

SUPPORT, radiator right

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

190738C1

SUPPORT, radiator brace

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

5/16 x 1-1/8 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

19

121647C2

FAN

BLADE ASSY, fan

1шт.
