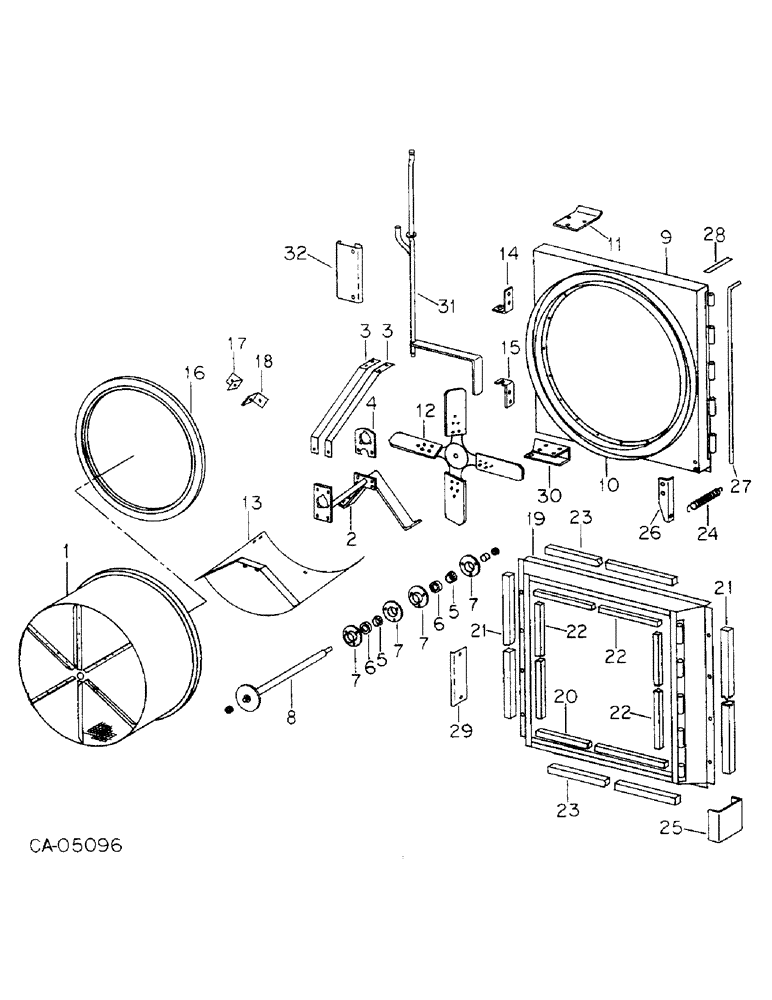

Запчасти Case IH 715 (06-01) - COOLING, ROTARY SCREEN Cooling

1

159702C91

SCREEN

SIEVE ASSY, radiator rotating fan

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

21352R1

RIVET,Tr Hd, 3/16" x .281", Alum.

3/16 x 9/32 pln al t/hd s/t

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

2

152806C91

SUPPORT ASSY, radiator screen brg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss, hd

1шт.

3

154885C1

BRACE

radiator screen brg support

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

4

153570C1

BRACKET

radiator screen brg support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

5

468390R91

BEARING, BALL,0.6255" ID x 40 mm OD x 0.75"

BEARING ASSY, radiator rotating sieve

2шт.

6

468391R11

COLLAR

W/SET SCREW, lkg

2шт.

7

661147R1

FLANGED BEARING

rotating sieve brg

4шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

8

159703C91

ROD

ASSY, radiator rotating sieve

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 ext pln tooth lock

1шт.

619856R1

WASHER

406 x 1.000 x .056

1шт.

9

190996C91

SHROUD ASSY, rotary air, includes ref. no. 10

1шт.

10

161420C1

RING

rotary screen bush

1шт.

161421C1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW, rotary screen brush ring

1шт.

11

188585C1

SUPPORT, shroud guide

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

12

161207C91

FAN

ASSY, 4 blade

2шт.

13

152909C91

DEFLECTOR ASSY, radiator screen

1шт.

14

188509C1

ANGLE, rotary screen upper latch

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

15

188508C1

ANGLE, rotary screen lower latch

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

16

161010C91

BRUSH ASSY.

BRUSH ASSY, rotary screen, includes ref. nos. 17 and 18

1шт.

17

164616C1

ANGLE

CLIP, rotary screen brush short

1шт.

18

164617C1

ANGLE

CLIP, rotary screen brush long

1шт.

19910R1

LOCK NUT

no. 10 cad p/t lock type 5

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10 x 1 znp p/hds mach

1шт.

19

190990C1

ADAPTER ASSY, rotary, includes ref. nos. 20 thru 23

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

194621C1

SEALING STRIP

SEAL, sta-foam, 26.2 x 1.0 x .38

1шт.

21

318106R1

SEAL, sta-foam, 28 x 1.0 x .38

2шт.

22

153495C1

SEALING STRIP

SEAL, sta-foam, 28.5 x 1.0 x .38

3шт.

23

155771C1

SEAL

sta-foam, 36 x 1.0 x 1.0

2шт.

24

61084D

SPRING

1шт.

25

188513C1

CHANNEL, rotating screen

1шт.

26

188512C1

ANGLE, rotary screen spring

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

27

188515C1

ROD, rotary screen hinge

1шт.

28

461678R1

SEAL

TAPE

5шт.

29

188510C1

SUPPORT, rotary screen latch

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

30

188507C1

CHANNEL, rotary screen lever

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

31

188502C2

LEVER ASSY, rotary

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

32

188511C1

PLATE, rotary screen latch pivot

1шт.

21886R1

HEADED PIN,1/4" x 1"

PIN, 1/4 x 1. hd type 1

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.
