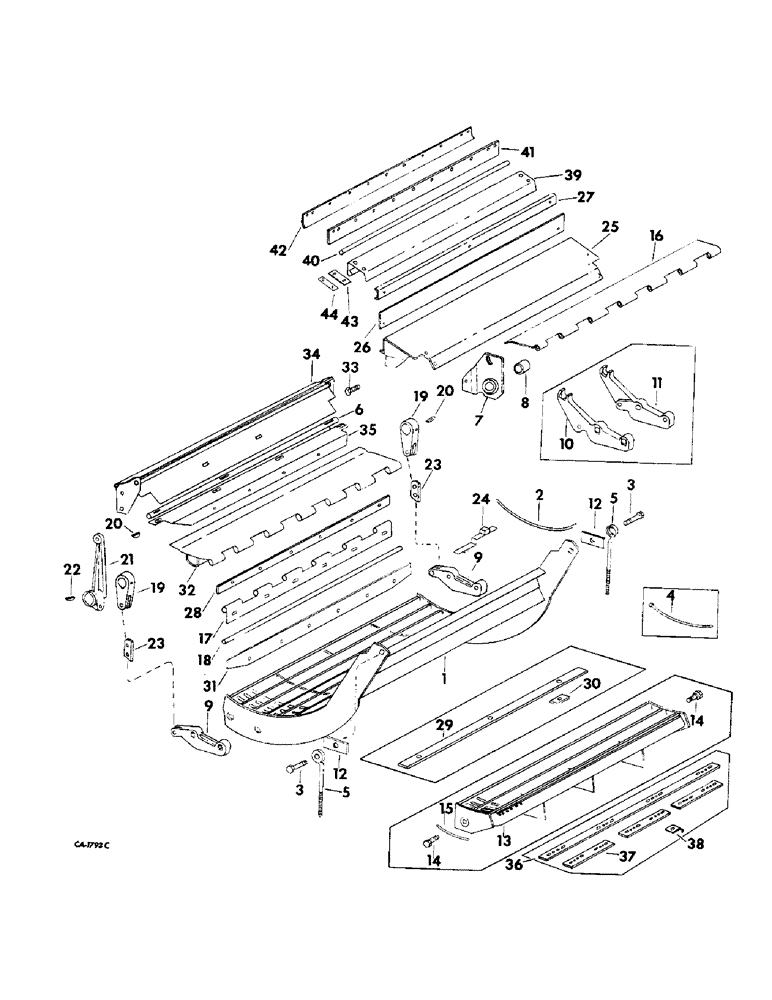

Запчасти Case IH 715 (21-19) - THRESHING CYLINDER AND CONCAVE, CONCAVE AND RELATED PARTS (14) - THRESHING

1

633566R93

CONCAVE

ASSY, low wire for windrow special, includes ref. no. 2

1шт.

1

174557C91

CONCAVE

ASSY, high wire, not windrow special, includes ref. no. 2

1шт.

2

564023R1

ELECTRICAL WIRE

ROD, concave, low wire

46шт.

2

174556C1

ELECTRICAL WIRE

ROD, concave, high wire

42шт.

3

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, concave

2шт.

21434R1

NUT,5/8"-11, G8

5/8 hex type 8

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

4

565571R1

ELECTRICAL WIRE

ROD, concave half, low wire, parts accessory, for use w/bar and wire concave

48шт.

5

564031R1

BOLT,Adj, 1/2" - 13 x 7.62", Cl 5

concave rear adjusting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

607895R1

WASHER

.531 x 1.000 x .105

1шт.

6

170926C2

SHAFT

concave adjusting

1шт.

7

170927C1

BRACKET ASSY, concave leveling, includes ref. no. 8

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 hex-hd

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 1/2 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-16 x 12 ga C-Z

1шт.

8

157560C1

BUSHING

concave leveling bracket hub

1шт.

9

158004C2

LEVER

concave front support, not windrow special

2шт.

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 plow type 8

1шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

10

157931C1

LEVER, concave front support LH, windrow special

1шт.

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 plow type 8

1шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

11

157932C1

LEVER, concave front support RH, windrow special

1шт.

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, 5/8 x 2-1/4 plow type 8

1шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.

12

565572R1

SEALING STRIP

concave rear adjusting bolt slot

2шт.

13

634169R92

EXTENSION ASSY, concave, low wire, includes ref. no. 15, windrow special

1шт.

181696

BOLT, 1/2-NF x 1 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

14

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, concave, windrow special

2шт.

21434R1

NUT,5/8"-11, G8

5/8 type 8

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

366866R1

RING

WASHER, 5/8 rib lock

1шт.

589068R1

WASHER

.656 x 1.250 x .090

1шт.

15

634174R1

ROD, concave extension, windrow special

46шт.

16

634176R1

EXTENSION

PLATE, concave front extension, windrow special

1шт.

17

629683R1

HINGE

concave front, not rice or spike tooth cylinder

1шт.

181693

SUPPORT

SCREW, 1/2-20 x 3/4 C-Z hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

18

589386R1

ROD

concave front extension

1шт.

19

157569C3

ARM

concave front control

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, CLEVIS, 1/2" x 1.360"

1шт.

542503R1

SCREW, 5/16 x 3/8 soc-hd cup-pt

1шт.

20

124554

O-RING

5/16 x 1 Woodruff

2шт.

21

170934C2

LEVER

concave control

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff B

1шт.

23

157871C2

BAR

concave front support

2шт.

24

634626R91

SUPPORT

GAGE ASSY, concave and cylinder check

1шт.

25

171549C2

SUPPORT

ASSY, feeder seal, windrow special, not edible bean

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

26

171553C1

SEAL

feeder pivot, windrow special, not edible bean

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 znp p/hds mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

568473R1

CHANNEL, feeder pivot seal, windrow special, not edible bean

1шт.

28

632403R1

BAR

RETAINER, concave front extension, corn and soybean, not edible bean

1шт.

29

654923R1

BAR, concave filler, for use w/low wire and for high wire concave w/3/16 in. wires

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3587H

13/32 x 9/16 x 16 ga

1шт.

30

585209R1

WASHER, concave filler bar bolt, for use w/low wire and for high wire concave w/3/16 in. wires

1шт.

31

632068R1

BAR

RETAINER, concave rod front, high wire

1шт.

32

174847C1

EXTENSION

ASSY, concave front, grain and rice, not edible bean

1шт.

33

152257C2

BOLT, concave adjusting bracket right, grain and rice, not edible bean

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

34

177395C1

HINGE

ASSY, feeder bottom door, not edible bean

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

35

174859C1

SUPPORT ASSY, grain pan front seal plate extension, grain and rice, not edible bean

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

36

174547C92

STRIP

ASSY, concave filler, includes ref. no. 38, for use w/high wire concaves w/1/4 in. wires

1шт.

37

174550C92

STRIP

ASSY, concave filler, short, includes ref. no. 38, for use w/high wire concaves w/1/4 in. wires

1шт.

38

174549C1

CLIP

concave filler strip, for use w/high wire concaves w/1/4 in. wires

36шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 pln but/hd sol

1шт.

39

177430C1

DOOR

feeder top, not windrow special

1шт.

39

177605C1

DOOR, feeder top, for windrow special

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

40

179926C1

ROD, feeder top door hinge, for windrow special

1шт.

40

589982R1

ROD, feeder top door hinge, not windrow special

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

41

177432C2

DOOR SEAL

feeder top door

1шт.

42

177433C1

BACKING, feeder top door seal

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

43

177428C1

DOOR SEAL

top door side, not windrow special

2шт.

43

177606C1

SEAL, top door side, for windrow special

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

44

177429C1

STRIP

seal backing, not windrow special

2шт.

44

177607C1

STRIP, seal backing, for windrow special

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
