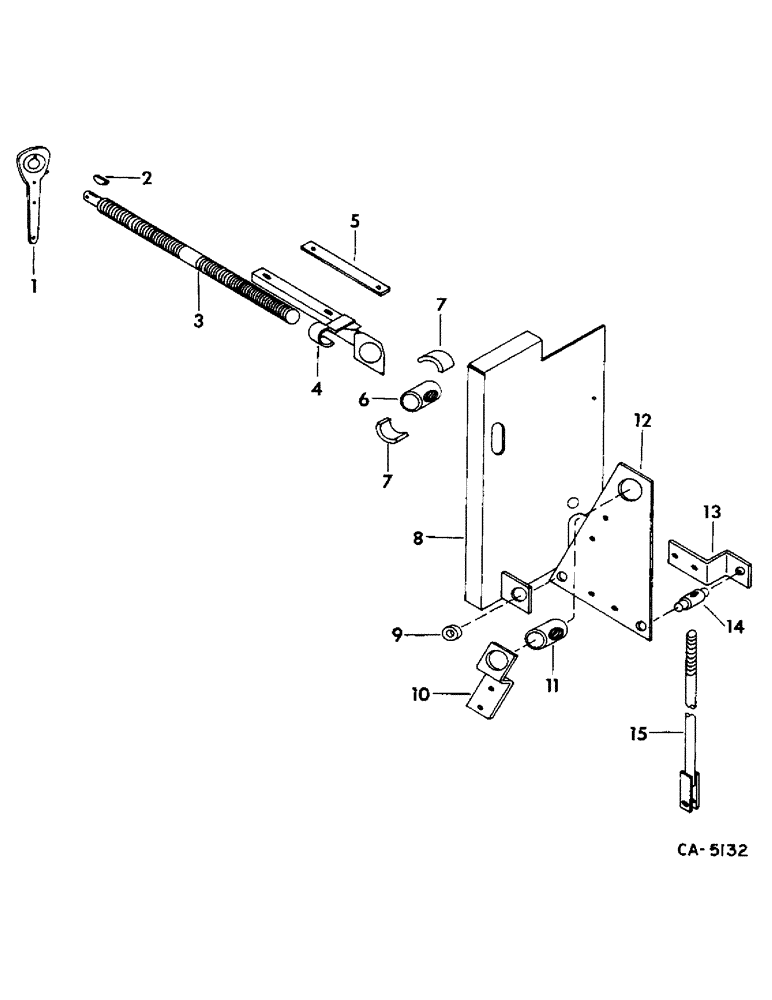

Запчасти Case IH 715 (21-18) - THRESHING CYLINDER AND CONCAVE, CONCAVE CONTROL (14) - THRESHING

1

170282C1

HANDLE

adjusting

1шт.

2

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

3

195748C1

SHAFT, control adjusting

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

4

190964C2

SUPPORT

ASSY, concave indicator

1шт.

5

190963C1

BAR, concave indicator

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

195743C1

PIVOT

control front

1шт.

7

188516C1

STRIP, control trunnion

2шт.

8

SUPPORT ASSY, shift lever, refer to group 7 under transmission gear shift and linkage

1шт.

9

195971C1

SPACER, control pivot

1шт.

10

195739C1

SUPPORT, trunnion inner clip

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

195747C1

PIVOT, control rear upper

1шт.

12

195970C2

PLATE

control

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21759R1

WASHER

.656 x 2.000 x .105

1шт.

13

195740C1

SUPPORT, trunnion outer clip

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

632663R1

PIVOT, control rear lower

1шт.

15

190968C1

ROD ASSY, control lower

1шт.

426099

NUT,3/4"-16, G5

3/4-NF type 5

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

PIN, 3/8 x 1-11/32 C-Z rod end

1шт.
