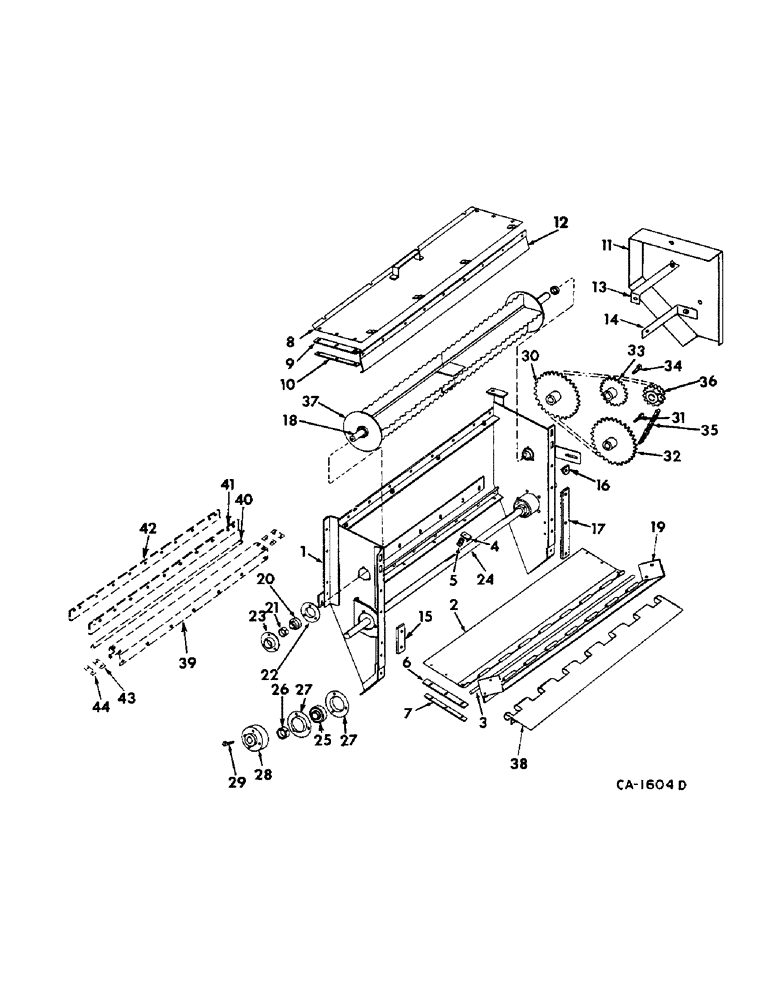

Запчасти Case IH 715 (21-16) - THRESHING CYLINDER AND CONCAVE, FEED BEATER, DRIVE AND STONE RETARDER, WINDROW SPECIAL (14) - THRESHING

1

634154R92

SUPPORT ASSY, feeder pivot

1шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 x 1-1/2 type 8

1шт.

21333R1

NUT,3/8"-16, G8

3/8 type 8

1шт.

21330R1

NUT,1/2"-13, G8

1/2 type 8

1шт.

935736R1

NUT, WING

NUT, 5/16 wing

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 type 8

1шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 type 8

1шт.

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

366864C1

LOCK WASHER,1/2"

1/2"

1шт.

2

174598C1

DOOR ASSY, stone retarder

1шт.

3

174600C1

ROD, stone retarder door hinge

1шт.

4

634187R1

CLIP, stone retarder door

5шт.

5

7422T

SPRING

stone retarder door clip

5шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16 x 2-1/4 crg type 1

1шт.

9411638

LOCK NUT,5/16"-18, GA

NUT, 5/16 CAD p/t lock type 1

1шт.

619855R1

WASHER

.344 x .750 x .054

1шт.

6

634541R1

SEAL, stone retarder door

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

634542R1

STRIP, stone retarder door seal

2шт.

8

634178R91

COVER ASSY, feeder extension

1шт.

9

634569R1

SEAL, feeder extension cover

2шт.

10

634570R1

STRIP, feeder extension cover seal

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 type 1

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

190962C1

SHIELD ASSY, feeder drive chain

1шт.

12

634366R1

DEFLECTOR, feed beater

1шт.

13

190960C1

SUPPORT ASSY, feeder drive shield

1шт.

159808C1

NUT, 5/16 wing

1шт.

14

188601C1

ANGLE ASSY, shield support

1шт.

159808C1

NUT, 5/16 wing

1шт.

15

156173C1

BAR, feeder pivot support angle rear left

1шт.

16

156174C1

BLOCK, feeder pivot rear support angle stiffener right

1шт.

9418646

NUT,7/16"-14, G8

7/16 znd hex type 8

1шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

7/16 x 1-1/2 type 8

1шт.

366863C1

LOCK WASHER

WASHER, 7/16 znd rib lock

1шт.

17

156175C1

BAR, feeder pivot support angle rear right

1шт.

18

634195R1

SHAFT, feed beater

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

1шт.

19

174596C1

RETARDER ASSY, stone

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 plow type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING, feed beater shaft

2шт.

21

564853R11

COLLAR

W/SET SCREW, locking

2шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

22

571424R1

FLANGE

feed beater shaft brg inner

2шт.

125872R1

BOLT, 5/16 x 1 crg type 1

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

23

563401R1

FLANGED BEARING

FLANGE, feed beater shaft brg outer

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

174281C1

JACKSHAFT, feeder

1шт.

25

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ball feeder jackshaft, optional w/150194C91

2шт.

25

150194C91

BEARING

feeder jackshaft ball, optional w/485259R91

2шт.

26

455104R11

COLLAR

W/SET SCREW, locking, optional w/588076R11

2шт.

26

588076R11

COLLAR

W/SET SCREW, locking, optional w/455104R11

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 C/PT znp hdl/s set

1шт.

27

617863R1

FLANGED BEARING

feeder jackshaft brg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

28

571442R1

HUB CAP

HUB, feeder driven pulley

1шт.

18783R1

BOLT,Hex, 3/8"-16 x 2 1/2", G2

3/8 x 2-1/2 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

29

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib

1шт.

30

177608C1

SPROCKET ASSY.

SPROCKET ASSY, feeder pivot driven, 34 T

1шт.

31

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib

1шт.

32

634545R91

SPROCKET ASSY.

SPROCKET ASSY, feed beater drive, 35 T

1шт.

33

634191R91

SPROCKET ASSY.

SPROCKET ASSY, feed beater driven, 22 T

1шт.

34

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 2 gib

1шт.

35

CHAIN ASSY, feed beater drive roller, use 69 links from 10-ft roll marked 611362R91, one connecting link 574532R91 and two offset connecting links 612612R91

1шт.

36

582389R91

DRIVE SPROCKET

SPROCKET, feed beater drive chain tightener, 15 T

1шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 znd sw-nk crg

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22858R1

SQ HOLE WASHER,41/64" x 1 1/4" x .105", Sq Hole

21/32 sq x 1-1/4 x 12 ga C-Z

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

21782R1

WASHER

.656 x 1.500 x .054

1шт.

37

634196R91

BEATER ASSY, feed

1шт.

38

177602C1

EXTENSION ASSY, feeder

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

39

DOOR, feeder top, refer to this group under concave and related parts

1шт.

40

ROD, feeder top door hinge, refer to this group under concave and and related parts

1шт.

41

SEAL, feeder top door, refer to this group under concave and related parts

1шт.

42

BACKING, feeder top door seal, refer to this group under concave and related parts

1шт.

43

SEAL, top door side, refer to this group under concave and related parts

1шт.

44

STRIP, seal backing, refer to this group under concave and related parts

1шт.
