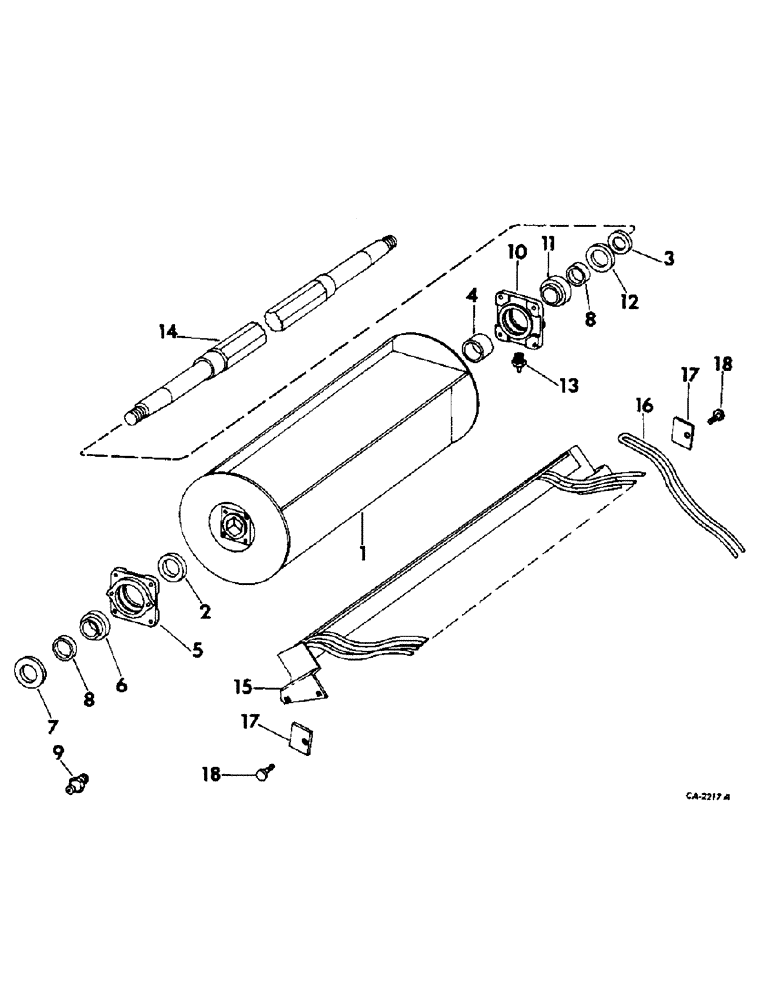

Запчасти Case IH 715 (21-13) - THRESHING CYLINDER AND CONCAVE, CYLINDER BEATER, STANDARD (14) - THRESHING

1

170696C1

BEATER

BEARING ASSY, cylinder

1шт.

2

629712R1

SPACER

cylinder beater shaft inner LH

1шт.

3

631406R1

SPACER

cylinder beater shaft RH

1шт.

4

25046R1

SPACER

cylinder beater shaft inner RH

1шт.

5

939625R11

CAGE

HOUSING W/BRG AND SEAL, beater shaft LH, includes ref. nos. 6 and 7

1шт.

6

632036R91

BALL BEARING,1.938" ID x 90 mm OD x 1.9375"

cylinder beater shaft

1шт.

7

939627R91

SEAL

SEAL, cylinder beater shaft bearing

1шт.

8

618032R11

COLLAR

W/SET SCREW, cylinder beater

1шт.

9

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 30 deg angle lub

1шт.

10

171234C11

HOUSING

W/BRG & SEAL, beater shaft RH, includes ref. nos. 11 and 12

1шт.

11

939626R91

BEARING

cylinder beater shaft

1шт.

12

939627R91

SEAL

SEAL, cylinder beater shaft bearing

1шт.

13

17295R91

LUBE NIPPLE,90 Degree, 1/4" NPT x 1" lg

FITTING, 1/4-18 PTF 65 deg angle

1шт.

14

171235C21

SHAFT

W/NUTS, cylinder beater

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-NF P/T lock type 5

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

1шт.

23040R1

WASHER

1.656 x 2.250 x .105

1шт.

20644R1

WASHER

1.656 x 2.250 x .054

1шт.

583200R1

WASHER, 1-31/32 x 3 x 11 ga

1шт.

PO27915

WASHER, 2-13/32 x 2-13 16 x 18 ga

1шт.

15

170980C1

GRATE ASSY, cylinder beater finger

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .105

1шт.

16

170983C1

FINGER

beater grate

16шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

568276R1

SEAL, cylinder beater grate adjuster slot

2шт.

18

152257C2

BOLT, cylinder beater finger grate mounting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
