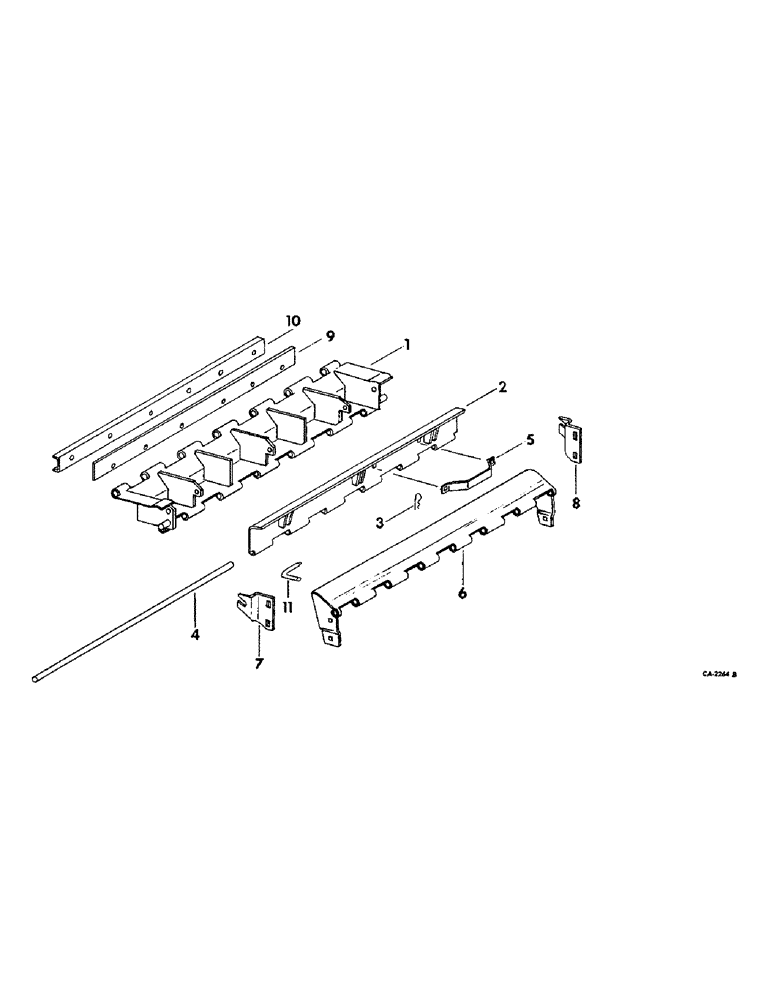

Запчасти Case IH 715 (21-12) - THRESHING CYLINDER AND CONCAVE, STONE RETARDER (14) - THRESHING

Refer to group 23 under concave and related parts for addtional stone retarder parts

1шт.

1

174589C1

TROUGH

THROUGH ASSY, stone retarder

1шт.

2

174585C1

DOOR

ASSY, stone retarder

1шт.

23067R1

PIN, 5/16 x 7/8 std-hd

1шт.

3

585614R1

PIN

retaining

3шт.

4

171299C1

ROD

stone retarder door hinge

1шт.

5

166351C1

HANDLE, stone retarder door

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

177398C1

HINGE

ASSY, feeder bottom door

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 crg type 1

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

7

171334C1

BRACKET

retarder pivot LH

1шт.

8

171335C1

BRACKET

retarder pivot RH

1шт.

9

172759C1

SEAL

stone retarder

1шт.

10

172762C1

REINFORCEMENT

REINFORCMENT, stone retarder seal

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

11

174601C1

PIN

retaining

3шт.
