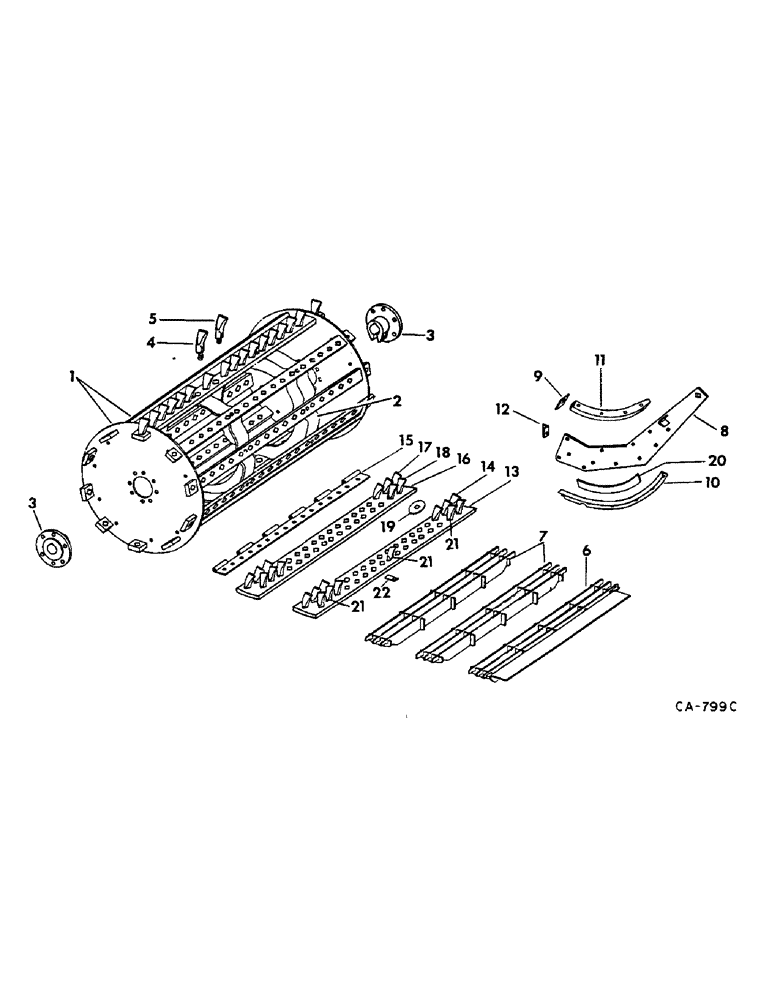

Запчасти Case IH 715 (21-04) - THRESHING CYLINDER AND CONCAVE, CYLINDER, SPIKE TOOTH (14) - THRESHING

1

172227C92

CYLINDER ASSY, less shaft, includes ref nos 2 thru 5

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach, for balance

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach, for balance

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach, for balance

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

2

567891R1

HEAD CYLINDER CENTER

2шт.

104118

RIVET, 3/8 x 1-5/8 pln but hd sol

1шт.

3

172123C1

HUB, cylinder

2шт.

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

1/2 flange lock type 8

1шт.

104116

RIVET, 3/8 x 1-3/8 B-HD

1шт.

200100R1

SCREW, 1/2 x 2-3/4 hex-hd type 8

1шт.

4

155992C2

TOOTH

cylinder middle, 16 not rice, 20 for rice

1шт.

NLS

NO LONGER SERVICED

9/16 pln type 5

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

5

155993C2

TOOTH

cylinder

160шт.

102638

9/16 pln type 5

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

6

574461R91

CONCAVE ASSY, bar rear

1шт.

7

574437R91

CONCAVE ASSY, bar front

2шт.

8

567901R11

SUPPORT ASSY, concave LH

1шт.

8

567902R11

SUPPORT ASSY, concave RH

1шт.

23056R1

BOLT, 3/8 x 7/8 plow type 1

1шт.

634122R1

BOLT,5/8"-11 x 2", G8, Full Thd

5/8 x 2 pln plow type 8

1шт.

441452R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT, 5/8 x 2 crg type 5

1шт.

633661R1

CARRIAGE BOLT,#3, 5/8" - 11 x 3"

BOLT, 5/8 x 3 plow type 8

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20511R1

WASHER, 5/8 med lock

1шт.

21796R1

WASHER

.656 x 1.000 x .054

1шт.

9

567908R1

BAR

CLIP, concave locking

2шт.

10

568137R1

RETAINER, concave lower LH

1шт.

10

568138R1

RETAINER, concave lower RH

1шт.

11

568135R1

SUPPORT

RETAINER, upper LH

1шт.

11

568136R1

SUPPORT

RETAINER, upper RH

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 type 5

1шт.

120376

NUT,5/16"-18, G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

568139R1

ANGLE

DEFLECTOR, concave LH

4шт.

12

568140R1

ANGLE

DEFLECTOR, concave RH

4шт.

13

155985C1

CONCAVE, rear, grain and edible bean

1шт.

14

155993C2

TOOTH

concave rear, grain and edible bean

32шт.

124583

BRAKE SHOE

NUT, 9/16 hex

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

15

172556C1

HINGE, concave front extension

1шт.

16

155985C1

CONCAVE, front

1шт.

17

155992C2

TOOTH

concave front, long

16шт.

124583

BRAKE SHOE

NUT, 9/16 hex

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

18

155993C2

TOOTH

concave front, short

19шт.

124583

BRAKE SHOE

NUT, 9/16 hex

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

19

936476R1

SQ HOLE WASHER

concave tooth, 51 used grain, 19 used rice

1шт.

20

587764R1

SHIM

concave adjusting

8шт.

21

155992C2

TOOTH

concave rear, grain and edible bean

3шт.

124583

BRAKE SHOE

NUT, 9/16 hex

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

22

469808R1

BAR, concave rear spacer, grain and edible bean

3шт.
