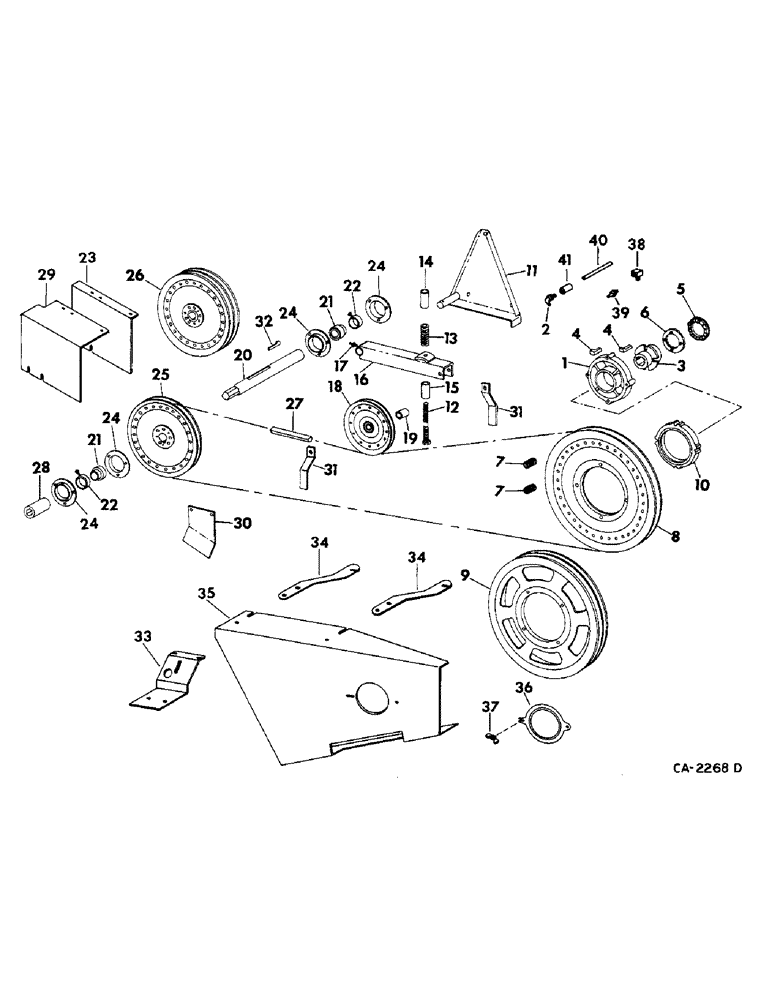

Запчасти Case IH 715 (33-06) - FEEDER, FEEDER JACKSHAFT DRIVE (13) - FEEDER

1

179031C2

HUB

feeder driven pulley, not windrow

1шт.

1

176556C1

HUB

feeder driven pulley, for windrow

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20903R1

BOLT,Hex, 3/8" - 16 x 5 1/4", Gr 5

3/8 x 5-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg, for rice

1шт.

3

179029C1

HUB CAP

HUB, feed conveyor slip clutch, not windrow

1шт.

4

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 2-1/2 gib

2шт.

5

179030C1

RATCHET

feeder slip clutch outer, not windrow

1шт.

6

179032C1

RATCHET

feeder slip clutch inner, not windrow

1шт.

27350R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8 x 4-1/2 sq-nk crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

614452R1

WASHER

13/32 1-1/4 x 11 ga

1шт.

Q3500

WASHER

21/32 x 1-1/8 x 14 ga

1шт.

7

584007R1

SPRING

feed conveyor slip clutch, not windrow

6шт.

8

176564C1

PULLEY

feeder jackshaft drive, 16-3/4 in. OD, single belt

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

3/8 x 4-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

176574C1

PULLEY

feeder jackshaft drive, 16-3/4 in. OD, double belt

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20903R1

BOLT,Hex, 3/8" - 16 x 5 1/4", Gr 5

3/8 x 5-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

176555C1

SPACER

feeder driven pulley hub, not windrow special

1шт.

11

176545C1

SUPPORT

ASSY, feeder jackshaft drive tightener pivot

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 x 1 lock

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

12

176548C1

BOLT,Hex, 1/2" - 13

feeder jackshaft drive tightener adjuster

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

21883R1

WASHER

.531 x 1.75 x .09 znd

1шт.

608081R1

WASHER

.21/32 x 1-3/4 x 11 ga znd

1шт.

13

523267R1

SPRING

adjuster bolt, single belt

1шт.

13

PO3A

SPRING

adjuster bolt, double belt

1шт.

14

176569C1

SPACER

adjuster bolt spring, single belt

1шт.

14

176580C1

SPACER

adjuster bolt spring, double belt

1шт.

15

176544C2

SPACER

adjustable bolt spring inner

1шт.

16

176549C1

ARM

ASSY, jackshaft drive tightener pivot

1шт.

17

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self tap. lub

1шт.

18

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, feeder jackshaft drive tightener, 8-3/4 in. OD, single belt

1шт.

18

176579C1

IDLER

ASSY, feeder jackshaft drive tightener, 8 in. OD, double belt

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex

1шт.

21275R1

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

SCREW, 5/8 x 6-1/2 hex-hd cap

1шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8 x 7-1/2 hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

131016

WASHER

.66 x 1.3 x .10 znd

1шт.

19

657114R1

SPACER,3/4" X-Strng Pipe x 2 3/8"

3/4 x 2.375 extra strong pipe

1шт.

20

176560C1

SHAFT

JACKSHAFT, feeder

1шт.

21

611583R91

BALL BEARING

BEARING, feeder jackshaft

2шт.

22

517645R11

COLLAR

W/SET SCREW, feeder jackshaft

2шт.

23

187255C1

SHIELD, feeder jackshaft driven pulley

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

24

180955C1

FLANGED BEARING,0.375"

FLANGE, feeder jackshaft bearing grooved

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

25

176562C1

PULLEY

feeder jackshaft driven, 13-1/2 in. OD, single belt

1шт.

26

176572C1

PULLEY

feeder jackshaft, 13-1/2 in. OD, double belt

1шт.

27

176565C1

BELT,0.879" W x 174.99" L

V-BELT , Feeder jackshaft drive, Single belt, Not rice w/34-in. main wheels 0.879" W x 174.99" L

1шт.

27

176577C1

SET OF BELTS

Feeder jackshaft drive, Double belt for rice w/34 in. main wheels

1шт.

27

176566C1

BELT

V-BELT, Feeder jackshaft drive, Double belt

1шт.

28

176537C2

SPLINED COUPLING,28.83mm ID x 44.45mm OD x 203.2mm L

COUPLING, feeder jackshaft drive

1шт.

517843R1

COTTER PIN

PIN, QA cotter

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2-3/8 znd std-hd

1шт.

29

187256C1

SHIELD, feeder jackshaft driven pulley

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

30

179433C1

PLATE, jackshaft driven pulley guard

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

31

197110C1

GUIDE

belt, double belt

2шт.

32

Q1401

KEY, 3/8 x 1-3/4 sq. tapered, single belt Gib, 3/8" Sq x 1 3/4" Tap

1шт.

32

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib, double belt

1шт.

33

196392C1

SUPPORT, feeder drive shield lower, not rice

1шт.

34

196393C1

SUPPORT, feeder drive shield upper, not rice

2шт.

35

188597C1

SUPPORT, feeder drive, not windrow special

1шт.

35

188598C1

SUPPORT, feeder drive, for windrow special

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

36

188315C1

DOOR

feeder drive shield cover, not rice

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 type 1

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 p/t lock type 5

1шт.

37

935735R1

WING NUT

drive shield cover door wing, not rice

1шт.

38

20204R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/8-27 x 1/4-28 90 deg, not windrow special

1шт.

39

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8-27 str, not windrow special

1шт.

40

192042

NIPPLE, LUBE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE, 1/8 x 1-1/2 pipe, for rice

1шт.

41

192086

COUPLING,1/8" NPT, Fem

1/8 pipe, for rice

1шт.
