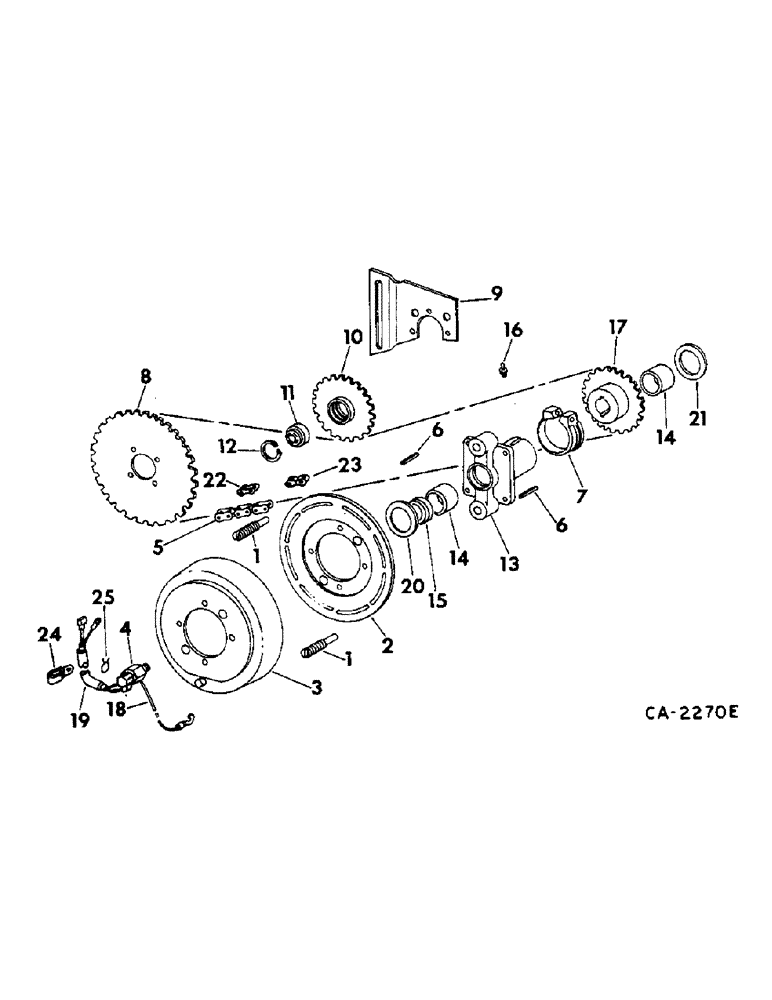

Запчасти Case IH 715 (33-04) - FEEDER, FEEDER DRIVE, CHAIN TYPE (13) - FEEDER

1

160309C1

STUD

feeder drive clutch lockout

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

2

172283C1

ARMATURE

ASSY, electric clutch

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

178689C1

MAGNET

electric clutch

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

122177C1

HARNESS

BRUSH HOLDER ASSY

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

CHAIN ASSY, feeder drive, not windrow special, use 97 links from 10 ft roll marked 654437R91

1шт.

5

CHAIN ASSY, feeder drive, for windrow special, use 99 links from 10 ft roll marked 654437R91, 1 connecting link 654438r91

1шт.

6

586879R1

KEY

5/16 x 2 sq parallel

2шт.

7

170695C1

CLAMP, feeder clutch hub

1шт.

21161R1

BOLT,Hex, 3/8"-16 x 3 3/4", G2

3/8 x 3-3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

175972C1

SPROCKET ASSY.

SPROCKET, feeder driven, 32 T, not windrow special

1шт.

8

170690C1

SPROCKET, feeder driven, 33 T, for windrow special

1шт.

8

188696C91

SPROCKET, feeder driven, 38 T, slow speed, for grain

1шт.

8

935867R1

SPROCKET, feeder driven, 38 T, slow speed, for edible bean

1шт.

9

170694C1

BRACKET, feeder drive chain tightener

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21041R1

WASHER

17/32 x 2 x 16 ga C-Z

1шт.

10

589538R91

SPROCKET ASSY.

SPOCKET ASSY, feeder drive chain tightener, 17 T

1шт.

11

580095R92

BEARING ASSY,0.8755" ID x 52 mm OD x 1.21875"

BEARING, feeder drive tightener

1шт.

22861R1

BOLT, 7/8 x 3 znd sq-nk crg

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

131047

WASHER,7/8"

7/8"

1шт.

21714R1

WASHER

.906 x 1.500 x .105

1шт.

607890R1

WASHER

1-7/32 x 1-3/4 x 16 ga

1шт.

12

555602R1

RING

tightener sprocket bearing snap

1шт.

13

179091C91

HUB ASSY, feeder drive clutch, includes ref. nos. 14 and 15

1шт.

14

392680R91

NEEDLE BEARING

clutch hub

2шт.

15

158109C91

SEAL

bearing

2шт.

16

19619R91

FITTING

1/4-28 NF x 1.64 str lub

1шт.

17

170691C1

SPROCKET ASSY.

SPROCKET ASSY, feeder drive, 23 T

1шт.

18

179650C1

ELECTRICAL WIRE

WIRE ASSY W/TERMINAL, brush holder

1шт.

19

179651C1

CABLE

ASSY, brush holder

1шт.

20

U14294

WASHER

1-15/16 x 2-7/8 x 16 ga

4шт.

21

24971R1

WASHER, 1.906 x 3.250 x .105

3шт.

22

1396D

DRAG LINK

LINK, roller, slow speed, for edible bean, for grain

2шт.

23

24973R1

LINK

connecting, slow speed, for edible bean, for grain

2шт.

24

132112H1

CLAMP,9/16", 3/8" Bolt

brush holder wire

1шт.

120376

NUT,5/16"-18, G5

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

25

317683R1

HOSE CLAMP,#10, 5/8", Spring

CLAMP, brush holder cable

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 ext-int tooth lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
