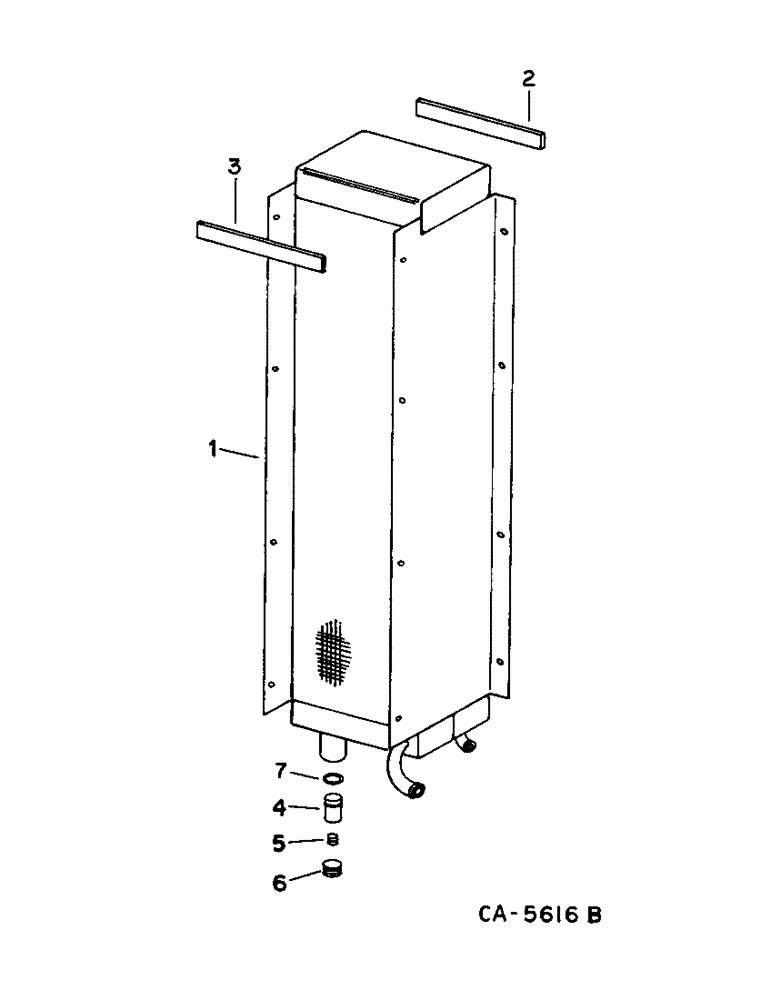

Запчасти Case IH 715 (10-37) - HYDRAULICS, OIL COOLER, HYDROSTATIC DRIVE (07) - HYDRAULICS

1

131041C92

COOLER ASSY.

COLLER ASSY, oil

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 h/hd tap

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

530461R1

STRIP, seal

1шт.

3

530461R1

STRIP, seal

1шт.

4

146547C1

VALVE

CARTRIDGE, check valve

1шт.

5

61222C1

SPRING

1шт.

6

146548C1

PLUG

1шт.

7

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 x 1 x 1/16

1шт.
