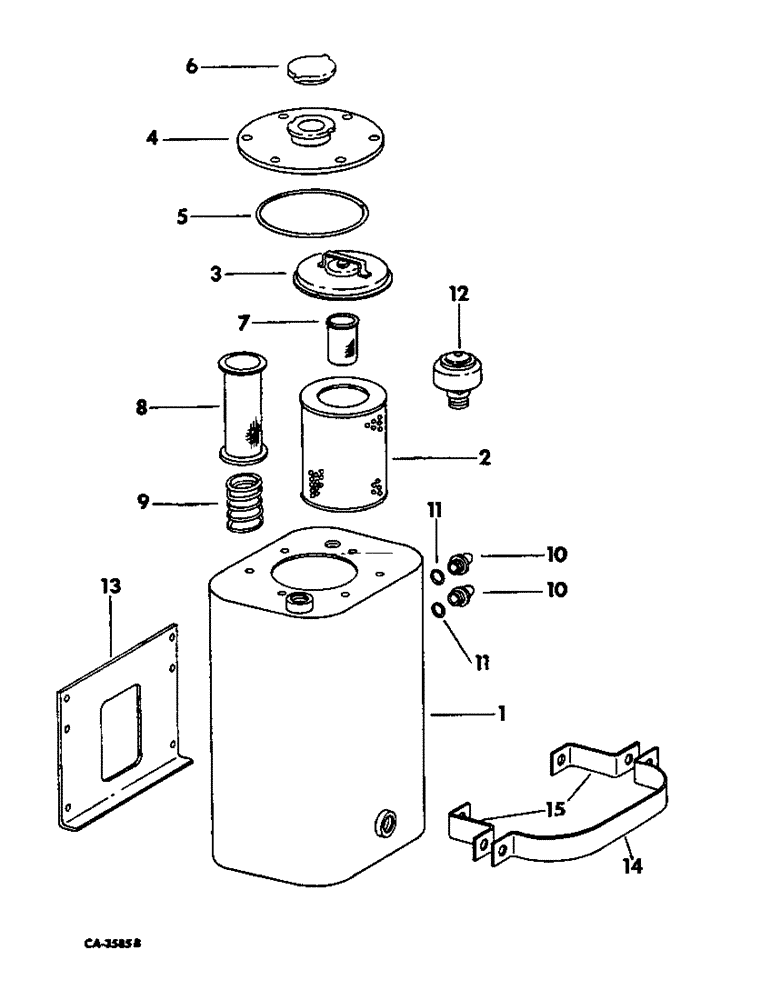

Запчасти Case IH 715 (10-36) - HYDRAULICS, HYDRAULIC RESERVOIR, HYDROSTATIC DRIVE (07) - HYDRAULICS

196824C91

TANK

RESERVOIR ASSY, includes ref. nos. 1 thru 11, optional W/183991C91

1шт.

183991C91

HYD TUBE

RESERVOIR ASSY, includes ref. nos. 1 thru 11, optional W/196824C91

1шт.

1

BODY, reservior, not serviced separately, order 183991C91 and 196824C91 reservoir

1шт.

2

386120R91

FILTER CARTRIDGE

ELEMENT ASSY

1шт.

3

173131C1

COVER ASSY

LID ASSY, filter

1шт.

4

179491C1

COVER

ASSY, optional W/1301115C1

1шт.

4

1301115C1

COVER ASSY

optional W/179491C1

1шт.

5

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

cover, optional W/3042933R1

1шт.

5

3042933R1

O-RING,-437, 70 Duro, 5.975" ID x .275" Thk

cover, optional W/21295R1

1шт.

6

361705R91

COVER

CAP ASSY, cover

1шт.

7

179489C1

FILTER, ENGINE OIL

FILTER, cover

1шт.

8

173929C1

STRAINER ELEMENT

STRAINER, port

1шт.

9

173930C1

SPRING

port

1шт.

10

244600R92

SIGHTGLASS

GLASS, hydraulic oil level sight

2шт.

11

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

oil level right glass

2шт.

12

923745C91

BREATHER ASSY.

BREATHER ASSY, filter

1шт.

13

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

938017R91

NUT, 5/16 flange lock

1шт.

14

180154C1

STRAP

SUPPORT

1шт.

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 hex-hd flange

1шт.

938017R91

NUT, 5/16 flange lock

1шт.

15

180153C1

STRAP

2шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/6 x 3/4 znp hex-hd flange lock

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
