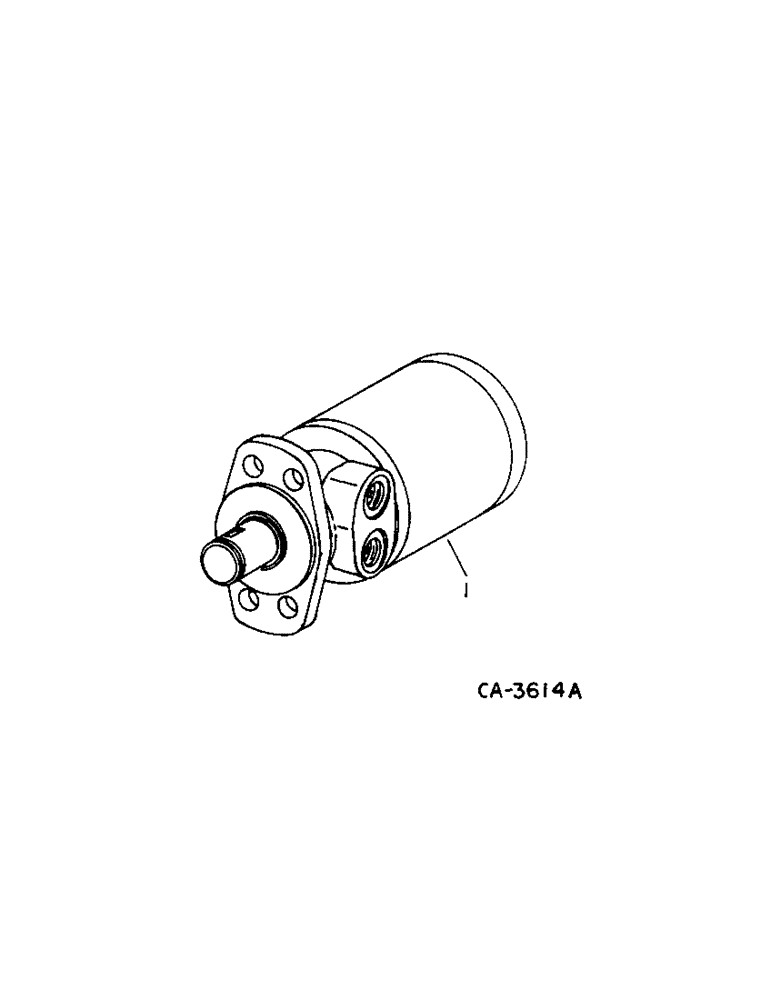

Запчасти Case IH 715 (10-35) - HYDRAULICS, HYDRAULIC REEL DRIVE MOTOR (07) - HYDRAULICS

1

173828C91

MOTOR, HYDRAULIC

reel drive

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 type 1

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

607895R1

WASHER

.531 x 1.000 x .105

1шт.

174397C2

SEAL KIT

KIT, hydraulic reel drive motor service, consists of (1) ring, bonded, (1) ring, retaining, (2) ring, seal, (1) seal, (1) seal, dirt, (1) spacer

1шт.
