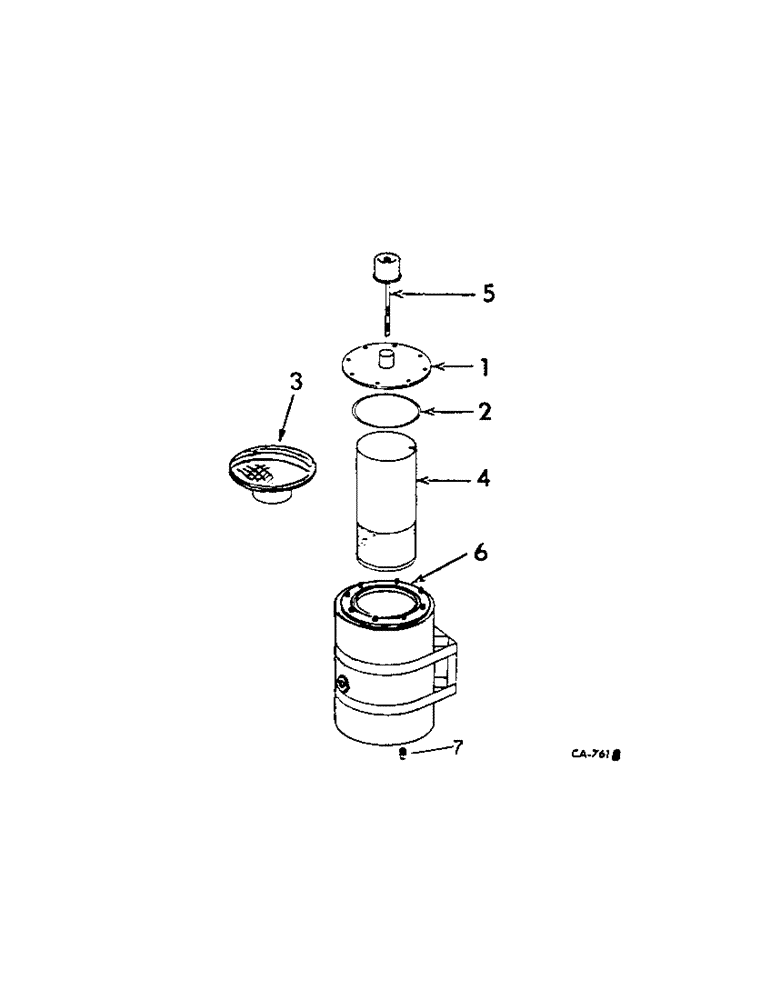

Запчасти Case IH 715 (10-35[1]) - HYDRAULICS, HYDRAULIC RESERVOIR, BELT DRIVE (07) - HYDRAULICS

156395C91

RESERVOIR

ASSY, hydraulic oil, includes ref. nos. 1 thru 6

1шт.

164420C1

BOLT, 3/8 x 1-1/4 hex-hd lock

1шт.

1

163646C91

COVER

ASSY

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

2

22760R1

O-RING,6.725" ID x 7.275" OD x 0.275"

seal

1шт.

3

386121R92

VALVE

ASSY

1шт.

4

386120R91

FILTER CARTRIDGE

CARTRIDGE ASSY, filter

1шт.

5

567521R91

CAP

BREATHER CAP AND DIPSTICK

1шт.

6

BODY, reservoir, not serviced separately, order 156395C91, reservoir assy

1шт.

7

444699

PLUG,Hex Soc, 3/8"-18

3/8 NPT

1шт.
