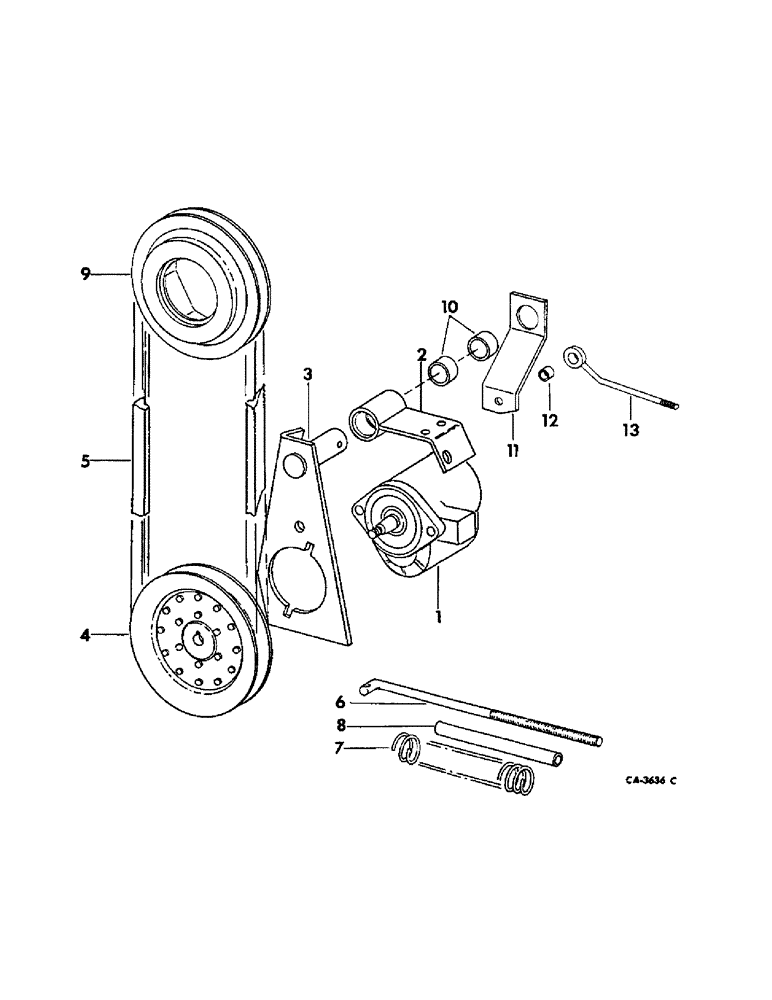

Запчасти Case IH 715 (10-32) - HYDRAULICS, HYDRAULIC LIFT PUMP, NOT HYDRAULIC REEL DRIVE (07) - HYDRAULICS

1

190872C91

PUMP

ASSY, hydraulic lift, Cessa

1шт.

1

196691C91

PUMP

ASSY, hydraulic lift, Webster

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 crg type 1

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

2

190782C92

SUPPORT

PIVOT ASSY, hydraulic pump, includes ref. no. 10

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20729R1

NUT,3/8"-16, G5, LH

3/8 znd hex LH thrd

1шт.

178373R1

WASHER

.531 x 1.000 x .56

1шт.

632019R1

LOCK WASHER,3/8"

L.H. 3/8"

1шт.

3

190780C2

SUPPORT

ARM ASSY, hydraulic pump

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

4

190778C1

PULLEY

ASSY, hydraulic pump driven, 8.5 in. OD

1шт.

5

190779C1

BELT,0.879" W x 59.19" L

V-BELT , Hydraulic pump drive 0.879" W x 59.19" L

1шт.

6

179324C1

ROD, lift pump tightener spring, serial no. 26000 and below

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

614452R1

WASHER

.41 x 1.25 x .12

1шт.

7

PO32

SPRING, hydraulic pump tightener

1шт.

8

M42518

SPACER, tightener spring

1шт.

9

190734C1

PULLEY, hydraulic lift pump, 7 in. OD

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

hub

2шт.

11

188733C1

SUPPORT

pump arm, serial no. 26001 and above

1шт.

12

173249C1

SPACER

pump arm support, serial no. 26001 and above

1шт.

13

188741C2

ROD

pump tightener spring, serial no. 26001 and above, replaces 188740C1 rod

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD p/t lock type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

168318C93

SEAL KIT

ASSY, seal repair for 190872C91 pump assy consists of (2) ball 7/32 dia. steel, (1) diaphragm, (1) gasket, back-up, (1) gasket, protector, (1) o-ring, (1) seal, diaphragm, (1) seal, shaft, (2) spring

1шт.

178385C2

SEAL KIT

ASSY, seal repair, for 196691C91 pump assy, consists of (1), gasket, (2) key, square, (1) plate, wear, (1) ring, retaining, (1) ring, sealing, (1) seal, load, (1) seal, oil, (1) seal pre-load, (8) washer, flat

1шт.
