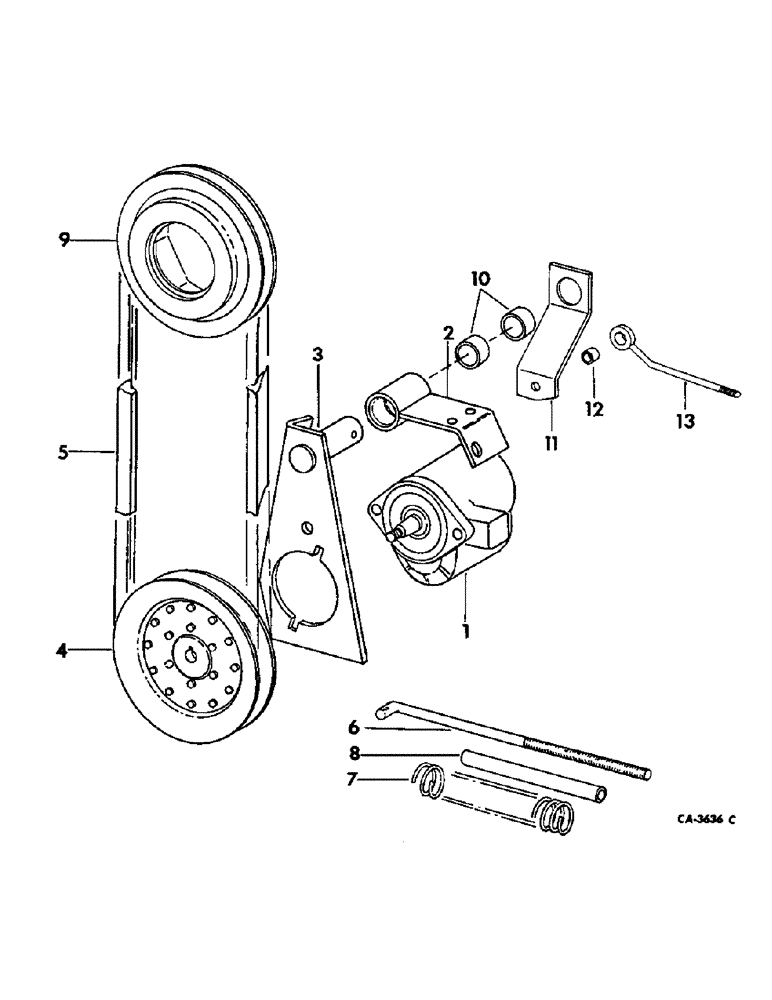

Запчасти Case IH 715 (10-31) - HYDRAULICS, HYDRAULIC LIFT PUMP, FOR HYDRAULIC REEL DRIVE (07) - HYDRAULICS

1

179376C91

PUMP

ASSY, hydraulic lift

1шт.

20729R1

NUT,3/8"-16, G5, LH

3/8 znd hex. LH thrd

1шт.

632019R1

LOCK WASHER,3/8"

L.H. 3/8"

1шт.

178373R1

WASHER

.531 x 1.000 x .056

1шт.

2

190728C92

PIVOT ASSY, hydraulic pump, includes ref. no. 10

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

190780C2

SUPPORT

ARM ASSY, hydraulic pump

1шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

591715R1

WASHER

1.031 x 1.500 x .054

1шт.

4

190778C1

PULLEY

ASSY, hydraulic pump driven, 8.5 in. OD

1шт.

5

190779C1

BELT,0.879" W x 59.19" L

V-BELT , Hydraulic pump spring 0.879" W x 59.19" L

1шт.

6

190956C1

ROD, lift pump tightener spring, serial no 26000 and below

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

20803R1

WASHER

.406 x 1.000 x 105

1шт.

7

190461C1

SPRING

hydraulic pump tightener

1шт.

8

190784C1

SPACER

tightener spring

1шт.

9

190734C1

PULLEY, lift pump drive, 7 in OD

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

hub

2шт.

11

188733C1

SUPPORT

pump arm, serial no. 26001 and above

1шт.

12

173249C1

SPACER

pump arm support, serial no. 26001 and above

1шт.

13

188741C2

ROD

pump tightener spring, serial no. 26001 and above

1шт.

170005C91

KIT

major repair consists of, (2) ball, 7/32 dia steel, (2) diaphragm, (2) gasket, (2) gasket back-up, (2) gasket protector, (2) plate thrust, (2) ring, (1) seal, (2) seal diaphragm, (2) spring

1шт.
