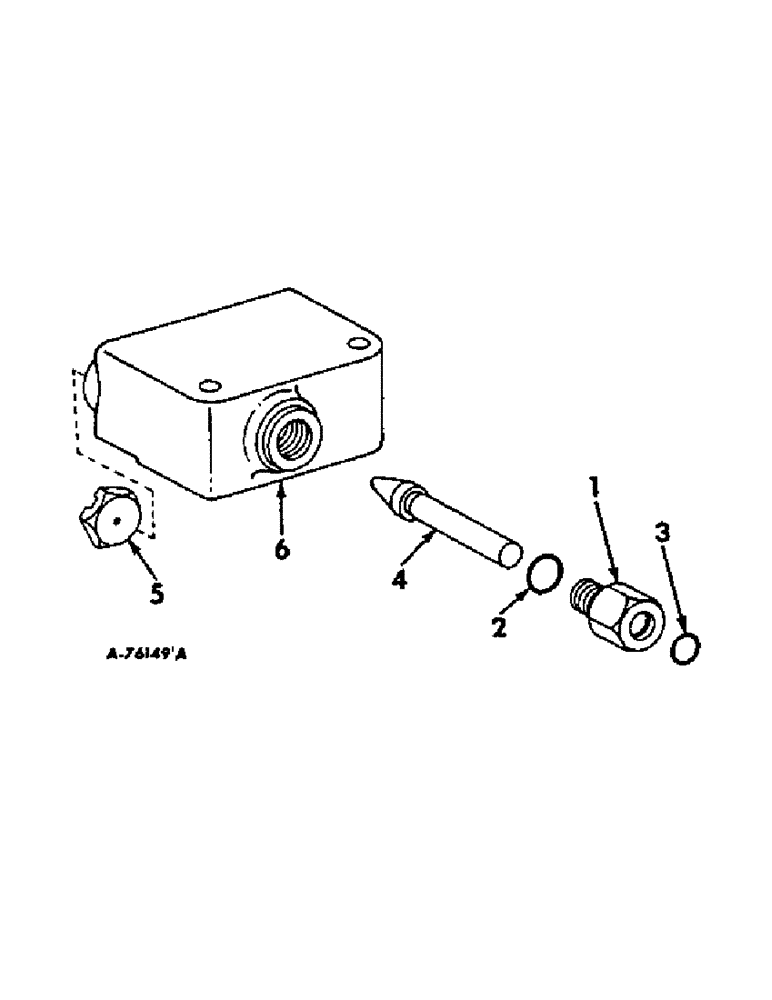

Запчасти Case IH 715 (10-29) - HYDRAULICS, HEADER AUTOMATIC FLOW CONTROL VALVE (07) - HYDRAULICS

155199C91

VALVE

ASSY, header automatic control

1шт.

1

937202R1

PLUG

metering pin

1шт.

2

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3/32 x 1/2 ID

1шт.

3

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3/32 x 3/8 ID

1шт.

4

937204R1

PIN

metering

1шт.

5

937201R1

PLUG

VENT

1шт.

6

BODY, not serviced separately order 155199C91 valve assy

1шт.
