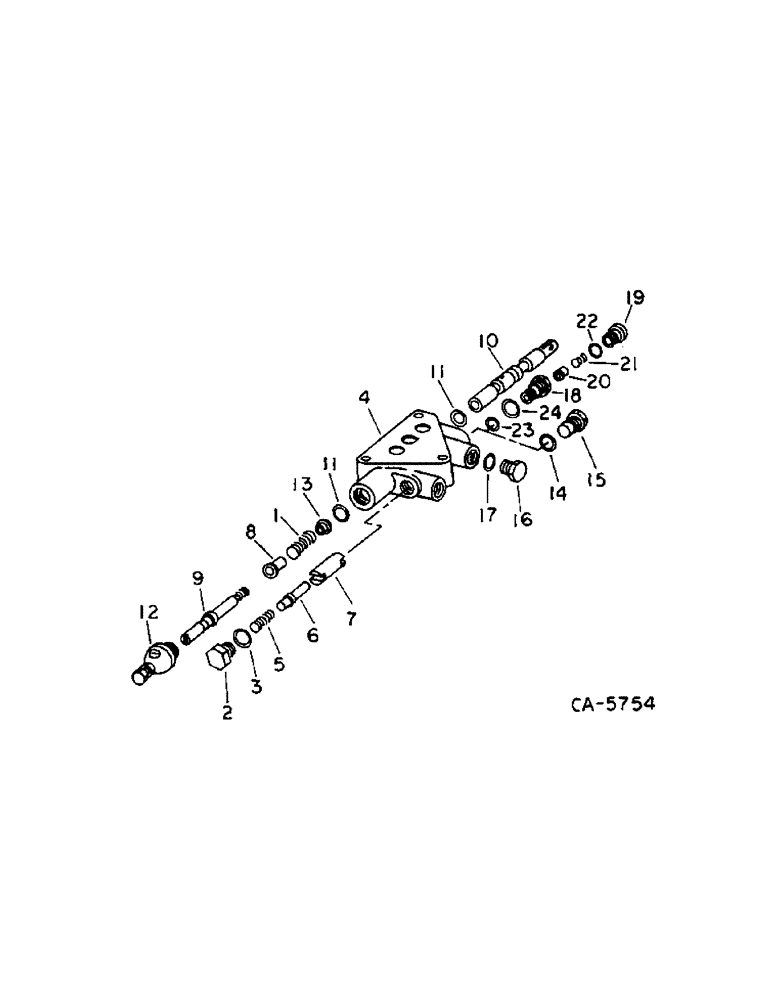

Запчасти Case IH 715 (10-27) - HYDRAULICS, HEADER LIFT VALVE (07) - HYDRAULICS

183656C91

VALVE

ASSY, 3 way, includes ref nos 1 thru 18

1шт.

1

588353R1

SPRING

spool centering

1шт.

2

159301C1

PLUG

1шт.

3

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32 class 5

1шт.

4

BODY, valve, not serviced separately order 183656C91

1шт.

5

159382C1

SPRING

lockout

1шт.

6

159380C91

VALVE

POPEET ASSY

1шт.

7

173859C1

PLUNGER

lockout

1шт.

8

937195R1

SPRING WASHER

spool spring

1шт.

9

937197R1

SCREW,1/4" - 20 x 2-5/16"

spool spring

1шт.

10

SPOOL, single acting, not services separately order valve assy, 183656C91

1шт.

11

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID class 5

2шт.

12

937198R91

CAP

ASSY

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-NF x 3/4 type 5

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

13

937194R1

SPRING WASHER

spool spring

1шт.

14

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 ID class 5

1шт.

15

588342R1

PLUG

hex, not for use w/AHC

1шт.

16

9410359

PLUG

3/4-16, not for use w/AHC

1шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

087 x 644 class 6, not for use w/AHC

1шт.

18

173827C91

VALVE

PLUG ASSY, check, includes ref nos. 19 thru 24 for use w/AHC

1шт.

19

PLUG, slotted, not serviced separately order plug assy, 173827C91

1шт.

20

387436R1

TAPPET

PLUGER, lift check

1шт.

21

387437R1

SPRING

lift check

1шт.

22

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3/32 x 1/2 class 5

1шт.

23

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3/32 x 3/16 class 5

1шт.

24

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 class 5

1шт.

159383C91

PACKAGE

KIT ASSY, consists of

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

310925R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

321956R1

GASKET

O-RING

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

159380C91

VALVE

POPPET ASSY

1шт.
