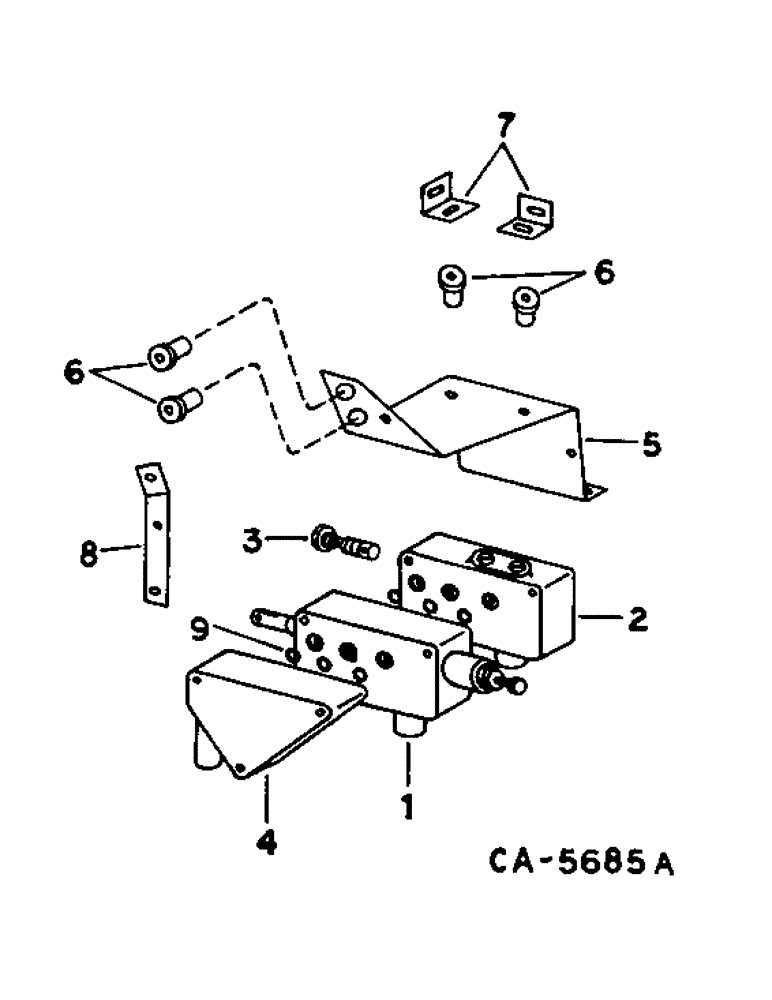

Запчасти Case IH 715 (10-26) - HYDRAULICS, HEADER LIFT VALVES (07) - HYDRAULICS

196813C91

VALVE ASSY, header lift, includes ref nos 1 thru 4

1шт.

1

VALVE ASSY, three way, replaces 170300C91 valve assy, refer to this group under header lift valve

1шт.

2

187892C93

VALVE

ASSY, LH port plate

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

3/32 x 1/16 class 5

2шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3/32 x 9/16 class 5

1шт.

3

167447C91

VALVE

ASSY, relief

1шт.

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/32 x 3/4 class 5

1шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32 class 5

1шт.

587585R1

WASHER

back-up

1шт.

4

166882C1

VALVE

RH end plate

1шт.

5

196618C1

SUPPORT, control valve

1шт.

6

198374C1

NUT

INSULATOR, vibration mount

4шт.

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

3/8 x 1-1/4 hex-hd lock

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178372R1

WASHER

.406 x 1.125 x .054

1шт.

7

196620C1

ANGLE, valve support bracket

2шт.

8

196666C1

SUPPORT, valve

1шт.

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd flange

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW, 3/8 x 3/4 hex-hd flange

1шт.

9

574069R1

O-RING,0.750" ID x .062"

1/16 x 3/4 class 5

6шт.

166883C91

PACKAGE

KIT ASSY, seal repair, consist of, includes 159383C9 kit, o-ring-252707R1, o-ring-350429R1, o-ring-350667R1, o-ring- 353221R1, o-ring-574069R1, washer, back up 673644R1

1шт.

159383C91

PACKAGE

KIT ASSY, consist of, o-ring-252739R1, o-ring-310925R1, o-ring- 321956R1, o-ring-352221R1, poppet assy-159380C91

1шт.
