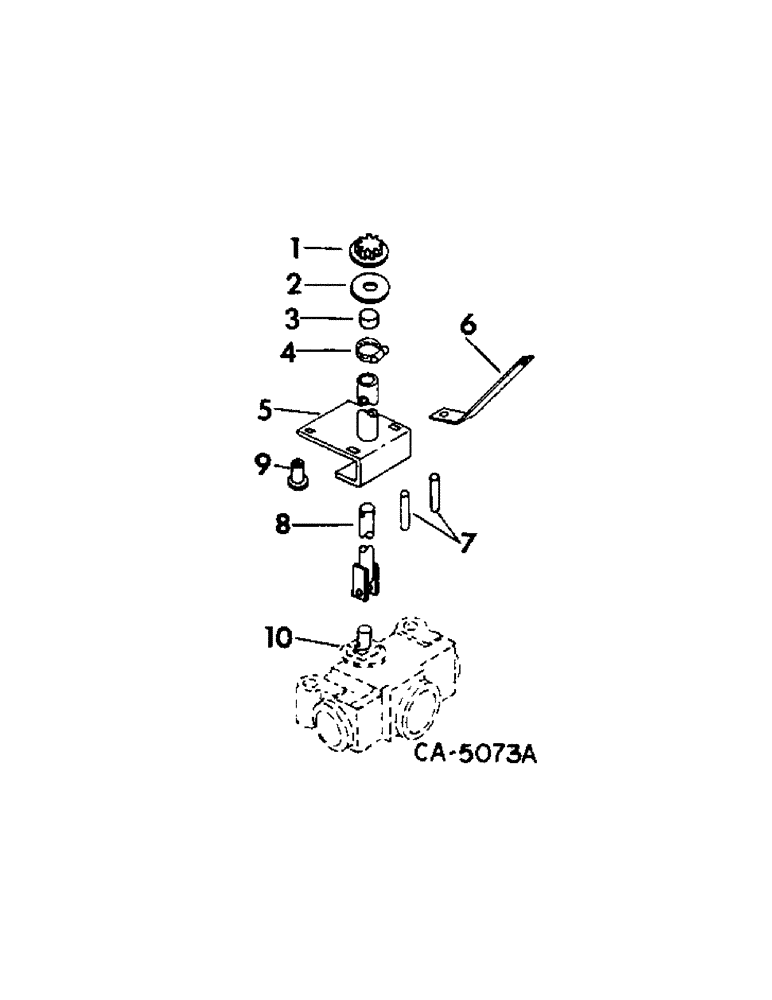

Запчасти Case IH 715 (10-25[1]) - HYDRAULICS, HYDRAULIC REEL DRIVE CONTROL (07) - HYDRAULICS

1

175844C1

KNOB

control

1шт.

2

175645C1

PLATE ASSY, product graphic

1шт.

3

401838R1

BUSHING

reel speed control

1шт.

4

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, plate

1шт.

5

196669C1

SUPPORT ASSY, divider, includes ref. no. 3

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

6

196667C1

BRACE, divider

1шт.

7

PO22778

SPACER,1/4" Pipe x 2"

1/2 x 2 std pipe

2шт.

8

179656C1

ROD ASSY, control

1шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

9

198374C1

NUT

INSULATOR, vibration mount

4шт.

10

DIVIDER ASSY, flow, refer to this group under reel drive flow divider

1шт.
