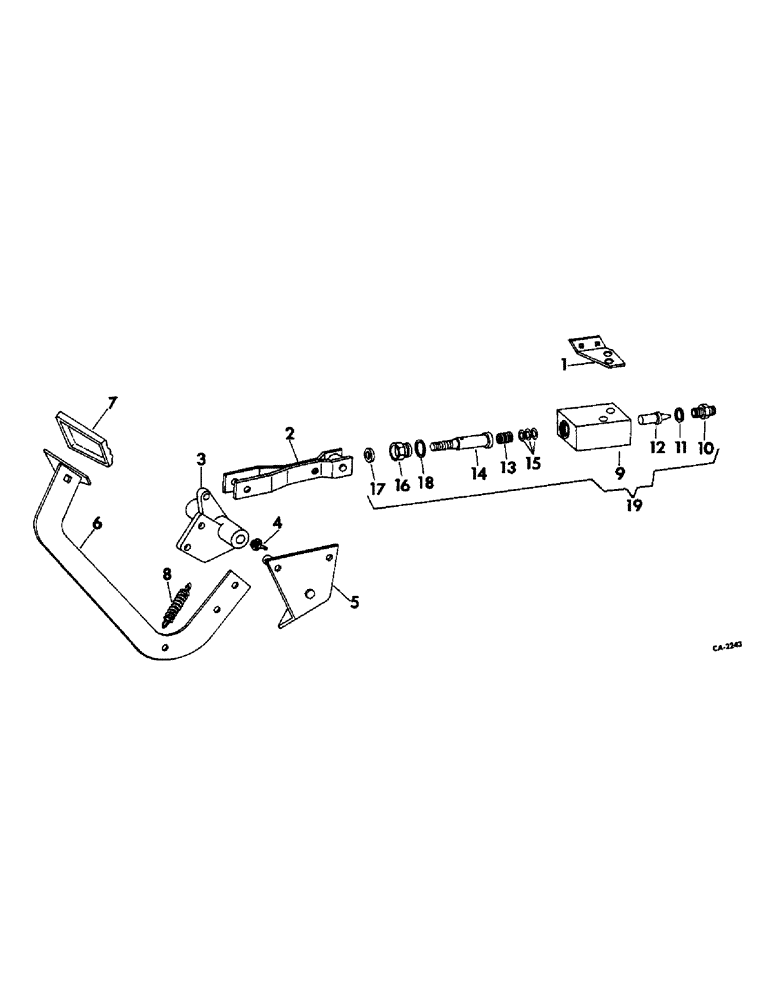

Артикул
Название
Примечание
Количество
1
164369C1
SUPPORT, foot-n-inch valve
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 crg type 1
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
2
164404C91
YOKE ASSY, foot-n-inch valve front
1шт.
121222
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
1шт.
138084
SPLIT PIN/SAFETY PIN
PIN, 3/8 x 1.060 clevis
1шт.
3
938870R1
PIVOT, foot-n-inch pedal
1шт.
4
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg
1шт.
5
174807C2
PIVOT ASSY, foot-n-inch pedal
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 type 1
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
21761R1
WASHER
.906 x 1.500 x .054
1шт.
6
939636R91
LEVER ASSY, foot-n-inch pedal
1шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 type 1
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
7
863426R1
PAD
foot-n-inch pedal rubber
1шт.
8
52635R1
SPRING
foot-n-inch pedal lever return
1шт.
9
BODY, valve, not serviced separately, order valve assy, 403347R91
1шт.
10
398709R1
SEAT
poppet valve
1шт.
11
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube
1шт.
12
398710R1
VALVE POPPET
VALVE, poppet
1шт.
13
403434R1
SPRING
valve
1шт.
14
398708R1
STOP
valve
1шт.
15
530575R91
SHIM KIT
PACKAGE, relief valve shims
1шт.
16
398707R11
GUIDE
ASSY, valve spring stop, includes ref. no. 17
1шт.
17
398701R91
OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk
oil
1шт.
18
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
for 5/8 OD tube
1шт.
19
403347R91
LOCK VALVE
VALVE ASSY, foot-n-inch, includes ref. nos. 9 thru 18
1шт.
18781R1
BOLT,Hex, 3/8"-16 x 2", G2
3/8 x 2 type 1
1шт.
120368
NUT,5/16"-24, G5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
Выбрано товаров: 35
