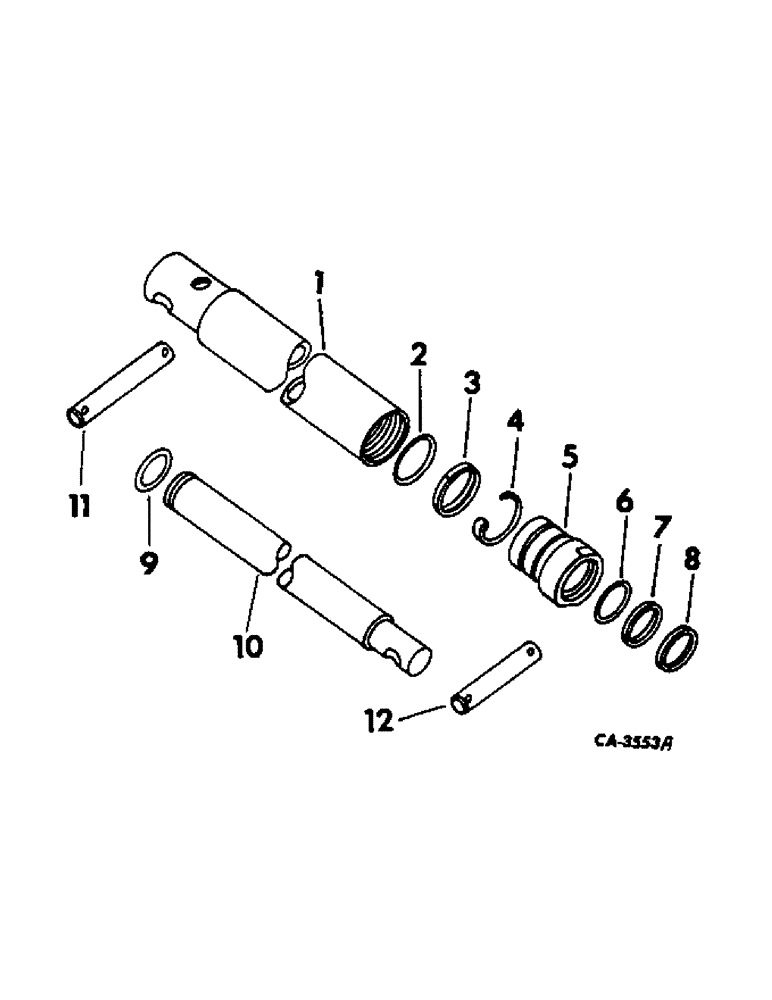

Запчасти Case IH 715 (10-22) - HYDRAULICS, FEEDER HYDRAULIC LIFT CYLINDER (07) - HYDRAULICS

59736C91

CYLINDER ASSY, platform hydra lift, single acting 2 in. bore 20 in. stroke 30 in. close length PSI 1,500

1шт.

1

59737C91

BODY ASSY, cylinder

1шт.

2

364306R1

O-RING,0.103" Thk x 2.237" ID, -140, Cl 5, 75 Duro

2-1/4 x 2-7/16 x 3/32 class 5

1шт.

3

59742C1

WASHER

backup front head

1шт.

4

59744C1

RING

retaining

1шт.

5

59740C1

HEAD, front

1шт.

6

464048R1

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

2 x 2-3/8 x 3/16 class 6

1шт.

7

387399R2

RING

backup piston rod

1шт.

8

59741C1

WIPER SEAL

WIPER, piston rod

1шт.

9

59743C1

STOP, piston rod

1шт.

10

59739C1

ROD, piston

1шт.

11

571181R1

PIN, header lift cylinder rear

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

12

573762R1

PIN,25.4mm OD x 130.97mm L

header lift cylinder front

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

59745C91

KIT

cylinder service, includes ref. nos. 2, 3, 4, 6, 7 and 8

1шт.
