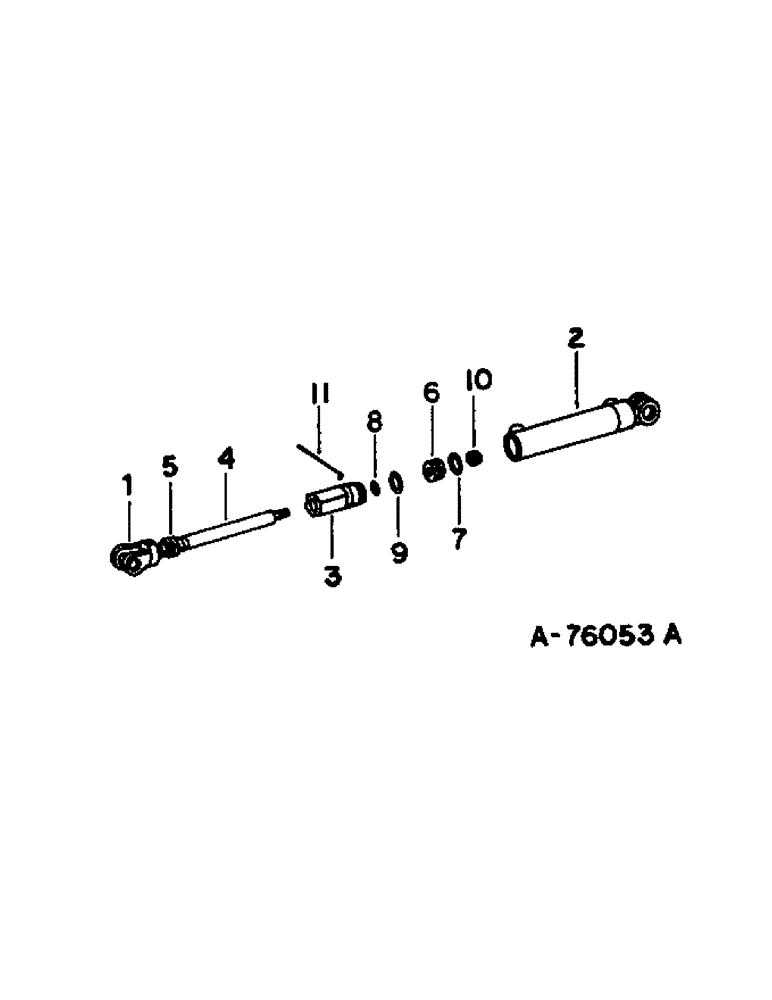

Запчасти Case IH 715 (10-22[1]) - HYDRAULICS, PROPULSION CONTROL CYLINDER, BELT DRIVE (07) - HYDRAULICS

387864R91

CYLINDER ASSY, propulsion control

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

21880R1

PIN

5/8 x 1.875 hd type 1

1шт.

589068R1

WASHER

.656 x 1.250 x .090

1шт.

22258R1

WASHER

.656 x 1.000 x .027

1шт.

1

381800R1

YOKE, piston rod

1шт.

591225R1

PIN,5/32" x 1 1/4", Coiled

1шт.

2

387865R91

TUBE,7.762" Length

ASSY

1шт.

3

381825R1

HEAD

1шт.

4

381826R11

PISTON ROD

ROD ASSY, includes ref. nos. 1 and 5

1шт.

5

384100R1

NUT

1/2 lock

1шт.

6

381828R1

PISTON

HEAD, piston

1шт.

7

384598R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

3/4 x 1 x 1/8

1шт.

8

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1/2 x 11/16 x 3/32

1шт.

9

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

1шт.

10

381829R1

NUT

5/16 lock

1шт.

11

381830R1

ELECTRICAL WIRE

RETAINER, cylinder head

1шт.
