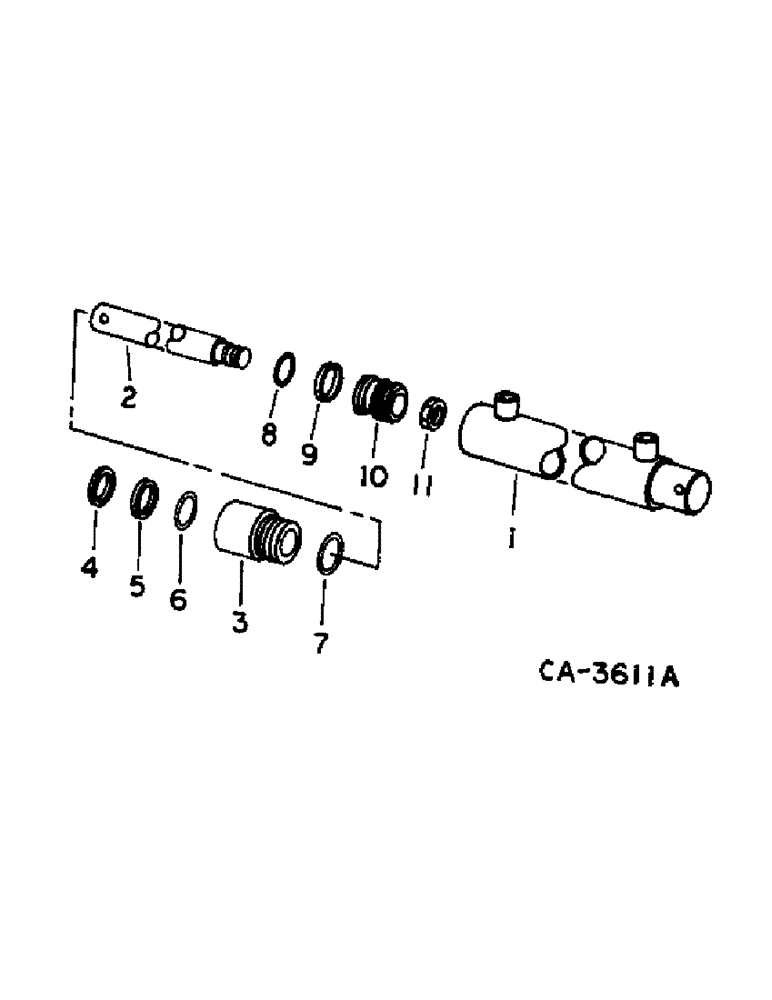

Запчасти Case IH 715 (10-21) - HYDRAULICS, HYRAULIC REEL LIFT CYLINDER, MASTER CYLINDER (07) - HYDRAULICS

547358R92

CYLINDER ASSY.

CYLINDER ASSY, master

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2.250 hd type 5

1шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2.750 hd type 1

1шт.

1

547328R2

BODY

ASSY, hydraulic cylinder

1шт.

2

547332R1

ROD

piston

1шт.

3

547384R1

CYLINDER HEAD

HEAD, front

1шт.

4

564808R91

WIPER

rod

1шт.

5

547385R1

WASHER

piston rod o-ring back up

1шт.

6

343905R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-3/8 x 1/8 class 6

1шт.

7

381885R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

1-3/8 x 1-9/16 x 3/32 class 6

1шт.

8

378031R1

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

1-3/16 x 1-3/8 x 3/32 class 5

1шт.

9

547383R1

SEAL

piston

1шт.

10

547333R1

PISTON

1шт.

11

548033R1

JAM NUT

NUT, lock

1шт.

547388R91

PACKAGE, REPAIR

KIT, hydraulic cylinder service, includes ref. nos. 4 thru 9

1шт.
