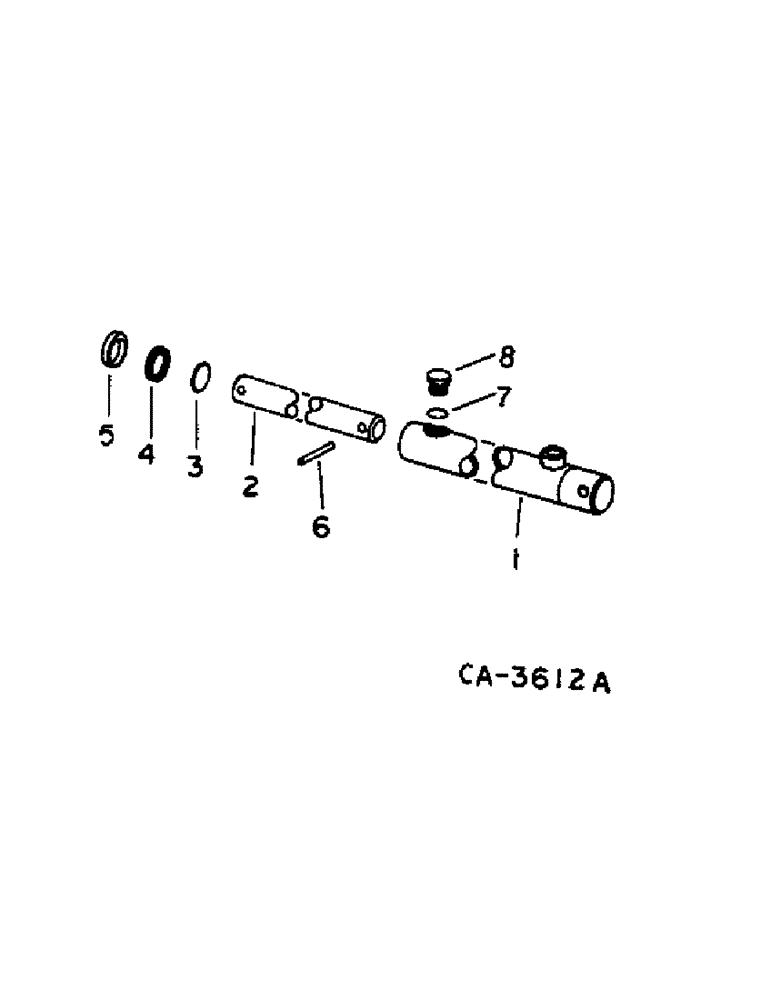

Запчасти Case IH 715 (10-21[1]) - HYDRAULICS, HYDRAULIC REEL LIFT CYLINDER, SLAVE CYLINDER (07) - HYDRAULICS

532763R91

CYLINDER

ASSY, slave

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

26204R1

HEADED PIN,1/2" x 2 1/4"

PIN, 1/2 x 2.250 hd type 5

1шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2.750 hd type 1

1шт.

1

532765R1

BODY

ASSY, hydraulic cylinder

1шт.

2

532771R1

ROD

piston

1шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8 class 6

1шт.

4

532854R1

SEAL,25.17mm ID x 31.52mm OD x 1.32mm Thk

back-up

1шт.

5

532773R1

WIPER SEAL

WIPER, rod

1шт.

6

532774R1

PIN

stop

1шт.

7

533145R1

RUBBER WASHER,5.59mm ID x 10.72mm OD x 1.37mm Thk

rubber bonded

1шт.

8

24535R1

SCREW

no. 10-24 x 1/4 hex-hd

1шт.

532531R91

PACKAGE, REPAIR

KIT, hydraulic cylinder service, includes ref. nos. 3, 4, 5 and 7

1шт.
