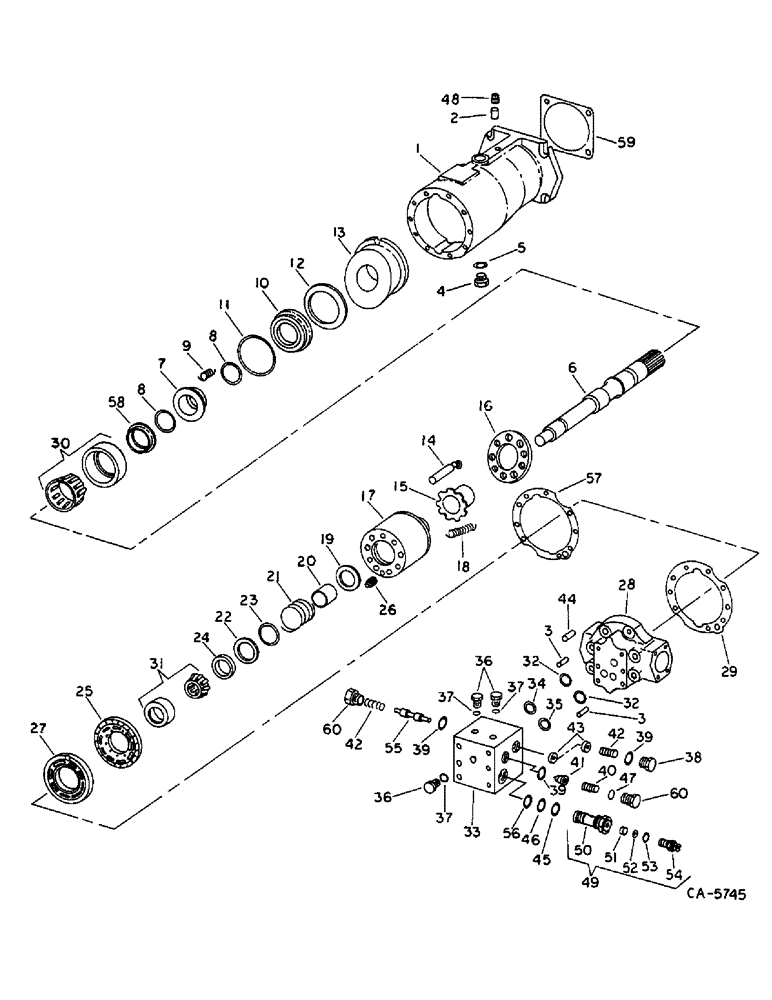

Запчасти Case IH 715 (10-19) - HYDRAULICS, HYDROSTATIC MOTOR (07) - HYDRAULICS

67809C91

REMAN-ENG OIL PUMP

MOTOR ASSY, hydrostatic, renewed, less ref no. 59

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

283856R1

WASHER

17/32 x 1 x 7 ga

1шт.

1

394148R1

HOUSING, hydrostatic motor

1шт.

2

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel

1шт.

3

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel

2шт.

4

9410360

PLUG

7/8-14 C-Z str-thd o-ring boss

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

6

404798R1

SHAFT

hyd motor drive

1шт.

7

SEAL, housing, not serviced separately order package assy, 403072R2

1шт.

8

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-/16 x 1-3/4 x 3/32

2шт.

9

393882R1

SPRING

drive shaft face seal

6шт.

10

393881R91

RETAINER

ASSY, drive shaft

1шт.

11

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8

1шт.

12

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face 3.346", Int, #334

1шт.

13

394152R1

PLATE

SWASHPLATE, hyd motor

1шт.

14

539256R1

PISTON ASSY

cylinder block

9шт.

15

394154R1

GUIDE

cylinder block piston

1шт.

16

394155R1

RETAINER

cylinder block piston

1шт.

17

71219C1

BLOCK ASSY.

BLOCK ASSY, piston cylinder

1шт.

18

71220C1

SPRING

slipper retainer

9шт.

19

394158R1

SEAT

piston cylinder block spring

1шт.

20

394159R1

GUIDE

BUSHING, drive shaft rear

1шт.

21

394194R1

SPRING

cylinder block

1шт.

22

394161R1

RETAINER

drive shaft rear

1шт.

23

21015R1

SNAP RING,#212, 2.217, Int, Spiral

RING, drive shaft rear

1шт.

24

394162R1

RING

cylinder block bearing plate

1шт.

25

404201R1

PLATE

cylinder block bearing

1шт.

26

394164R1

PIN

cylinder block bearing plate

1шт.

27

530768R1

LARGE PLATE

PLATE, cylinder block valve

1шт.

28

530729R1

CAP, motor end

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

394881R1

WASHER

13/32 x 11/16 x .106

1шт.

29

394170R1

GASKET

motor rear end cover

1шт.

30

394150R91

BEARING, ROLLER

BEARING ASSY, drive shaft front

1шт.

31

394166R91

BEARING ASSY,0.75" ID x 2.125" OD x 0.878, 0.625"

BEARING ASSY, drive shaft rear pilot

1шт.

32

393886R1

WASHER

WASHER, manifold valve

2шт.

33

529426R1

HOUSING

ASSY, manifold

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

1шт.

394880R1

WASHER

ASSY, 11/32 x 19/32 x

1шт.

34

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 x 1 x 1/16

1шт.

35

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

2шт.

36

9410356

PLUG

7/16-20 C-Z str thd o-ring boss

3шт.

37

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

38

394173R1

PLUG

manifold relief valve

1шт.

39

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

3шт.

40

531174R1

SPRING

manifold relief valve

1шт.

41

531175R1

PISTON

manifold relief valve

1шт.

42

394176R1

SPRING

manifold shuttle valve

2шт.

43

394177R1

WASHER

manifolod shuttle valve

2шт.

44

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel

1шт.

45

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 X 1-7/32 X 7/64

2шт.

46

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

2шт.

47

394279R91

KIT

PACKAGE, relief valve shim

1шт.

48

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

1шт.

49

402626R94

VALVE

ASSY, high pressure relief, includes ref. nos 50 thru 54

1шт.

50

BODY, not serviced separately order valve assy, 402626R94

1шт.

51

402629R1

BUSHING

ball guide

1шт.

52

17008R1

BALL,1/4" Dia

Chrome-Steel 1/4" Dia

1шт.

53

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

54

402630R2

CONNECTOR, ELEC

CONNECTOR, 37 deg flared tube special

1шт.

55

SPOOL, valve, not serviced separately order housing, 529426R1

1шт.

56

393887R1

BACK-UP RING

RING, relief valve back up

4шт.

57

404197R1

SHIM

shaft rear bearing, .010

1шт.

58

SEAL, shaft, not serviced separately order package assy 403072R92

1шт.

59

166506C1

GASKET,0.81mm Thk

hydrostatic motor

1шт.

60

63432C1

PLUG

manifold relief valve

2шт.

393884R91

KIT

PACKAGE, manifold valve housing seal, includes ref. no. 32, 34 and 35

1шт.

393885R91

GASKET KIT

PACKAGE, relief valve seal, includes ref. nos. 45, 46 and 56

1шт.

403072R92

O-RING KIT

o-ring and seal, includes ref. nos. 7, 8, 9, 11 and 58

1шт.

394171R91

VALVE

ASSY, manifold, includes ref nos. 33, 36 thru 42, 47 and 60

1шт.

138038C91

PACKAGE

KIT, cylinder block, includes ref. nos. 14, 15, 16, 18 thru 26

1шт.
