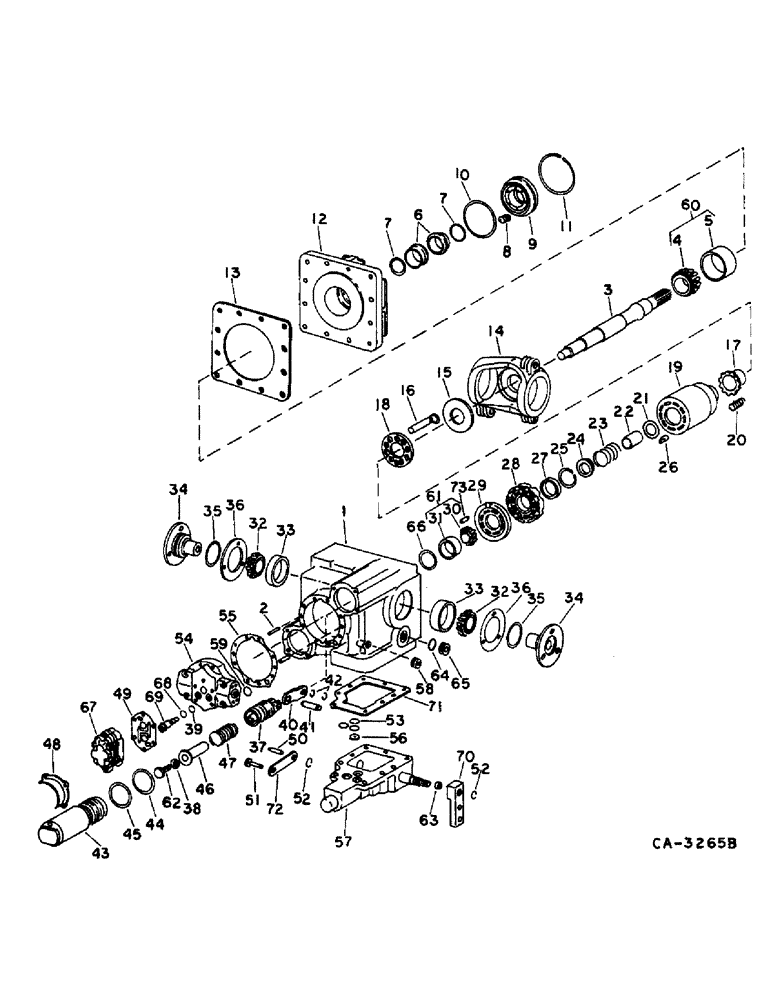

Запчасти Case IH 715 (10-17) - HYDRAULICS, HYDRAULIC TRANSMISSION PUMP, FOR HYDROSTATIC GROUND DRIVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
67863C92
REMAN-HYD PUMP
PUMP ASSY, ground drive, renewed
1шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8 type 5
1шт.
271725
SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5
5/8 X 2-1/2 type 5
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
614774R1
WASHER, 21/32 x 1-11/16 x 3/16
1шт.
1
394179R1
HOUSING
transmission pump
1шт.
2
21061R1
DOWEL,3/8" x 1/2"
PIN, 3/8 x 1/2 dowel
4шт.
3
394180R1
SHAFT
pump drive
1шт.
4
BEARING ASSY, drive shaft front cone not serviced separately order bearing assy, 394181R91
1шт.
5
BEARING, drive shaft front cup, not serviced separately order bearing assy, 394181R91
1шт.
6
403072R92
O-RING KIT
o-ring and seal, includes ref. no. 7, 8, and 10
1шт.
7
26078R1
O-RING,-129, Cl 7, 1.549" ID x .103" Thk
1-9/16 x 1-3/4 x 3/32
2шт.
8
393882R1
SPRING
drive shaft face seal retainer
6шт.
9
393881R91
RETAINER
ASSY, drive shaft face seal
1шт.
10
707220R1
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
3 x 3-1/4 x 1/8
1шт.
11
393883R1
SNAP RING,3.346", Int, #334
Ring, Snap, , drive shaft face seal 3.346", Int, #334
1шт.
12
394183R1
COVER, transmission pump front
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/4 pln type 5
1шт.
179850
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
3/8 x 2-3/4 pln type 5
1шт.
394881R1
WASHER
13/32 x 11/16 x .106
1шт.
13
394184R1
GASKET
transmission pump front cover
1шт.
14
394185R1
SWASHPLATE, transmission pump
1шт.
15
394186R3
PLATE
piston slipper thrust
1шт.
16
142484C1
PISTON ASSY.
PISTON ASSY, cylinder block, replaces 539252R1 piston assy
9шт.
17
394188R1
GUIDE
cylinder block piston slipper
1шт.
18
394189R1
RETAINER
cylinder block piston slipper
1шт.
19
133789C92
KIT
cylinder block consist of
1шт.
394188R1
GUIDE
retainer
1шт.
394193R1
BUSHING
GUIDE, spring
1шт.
394197R1
RING
PILOT, bearing plate
1шт.
527636R1
PIN
piston cylinder
1шт.
142484C1
PISTON ASSY.
PISTON ASSY
9шт.
399406R1
PLATE
bearing
1шт.
394189R1
RETAINER
slipper
1шт.
394195R1
RETAINER
spring
1шт.
21016R1
SNAP RING,#231, 2.413, Int, Spiral
RING, internal retaining
1шт.
394192R1
SEAT
spring
1шт.
532303R2
SPRING
cylinder block
1шт.
67789C1
SPRING
retainer
6шт.
20
67789C1
SPRING
piston cylinder block
6шт.
21
394192R1
SEAT
piston cylinder block spring
1шт.
22
394193R1
BUSHING
drive shaft rear spring
1шт.
23
532290R2
SPRING
cylinder block bearing plate
1шт.
24
394195R1
RETAINER
drive shaft rear spring
1шт.
25
21016R1
SNAP RING,#231, 2.413, Int, Spiral
RING, drive shaft rear spring retainer snap
1шт.
26
527636R1
PIN
cylinder block bearing plate
1шт.
27
394197R1
RING
cyl block bearing plate pilot
1шт.
28
399406R1
PLATE
cylinder block bearing
1шт.
29
530769R1
PLATE
cylinder block valve
1шт.
30
CONE ASSY, drive shaft rear pilot bearing, not serviced separately order bearing assy, 394200R91
1шт.
31
CUP, drive shaft rear pilot bearing, not serviced separately order bearing assy, 394200R91
1шт.
32
165963R91
BEARING
CONE ASSY, swashplate bearing
2шт.
33
560954R1
BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"
CUP, swashplate bearing
2шт.
34
393204R1
TRUNNION, swashplate bearing
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
394881R1
WASHER
13/32 x 11/16 x 106
1шт.
35
21003R1
O-RING,2.484" ID x 2.762" OD x 0.139"
2-1/2 x 2-3/4 x 1.8
2шт.
36
394205R91
SET
swashplate brg trunnion gasket
1шт.
37
537761R1
PISTON
servo
2шт.
38
394207R1
WASHER
servo piston bolt
2шт.
39
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
3/4 x 15/16 x 3/32
1шт.
40
549725R1
LINK
servo piston
2шт.
41
65797C1
PIN
servo link
4шт.
42
267805R1
RING
servo piston link pin snap
8шт.
43
403074R2
SLEEVE
servo piston
2шт.
44
327110R1
O-RING,-144, 90 Duro, 2.487" ID x .103" Thk
2-1/2 x 2-11/16 x 3/32
2шт.
45
21005R1
O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro
2-3/8 x 2-9/16 x 3/32
2шт.
46
394211R1
GUIDE
servo piston spring
2шт.
47
549726R1
SPRING
servo piston
2шт.
48
394213R1
RETAINER
servo piston sleeve
2шт.
536291R1
SCREW
10-24 x 3/8 hex-soc-hd
1шт.
49
533858R1
GASKET
charge pump
1шт.
50
394215R1
PIN
control valve link front
1шт.
51
404781R1
PIN
control valve link rear
1шт.
385180R1
WASHER
9/32 x 1/2 x .065
1шт.
52
21346R1
SNAP RING,#25, Ext, E-Type
Ring, Retaining, , control valve link pin #25, Ext, E-Type
2шт.
53
382997R1
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1/2 x 5/8 x 1/16
3шт.
54
530731R1
CAP
COVER, transmission pump rear end
1шт.
179847
BOLT,Hex, 3/8" - 16 x 2", Gr 5
1шт.
280161
BOLT,Hex, 3/8" - 16 x 3", Gr 5
1шт.
394881R1
WASHER
13/32 x 11/16 x .106
1шт.
55
394218R1
GASKET
trans pump rear end cover
1шт.
56
394219R1
PLUG
control valve orifice
1шт.
57
VALVE ASSY, control, refer to this group under hyd transmission pump control valve
1шт.
58
444687
PLUG,Hex Soc, 1/8"-27
Automotive, Pipe Hex Soc, 1/8"-27
1шт.
59
382997R1
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1/2 x 5/8 x 1/16
1шт.
60
394181R91
BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"
ASSY, drive shaft front
1шт.
61
394200R91
BEARING ASSY,1.0005" ID x 2.3442" OD x 0.923, 0.72"
ASSY, drive shaft rear
1шт.
62
537762R1
SCREW
1/4-20 1-5/8 nylon coated hex-hd cap
2шт.
63
404783R1
SPACER
control valve handle
1шт.
64
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube
3шт.
65
9410356
PLUG
7/16-20 hex-hd o-ring boss
3шт.
66
404780R1
SHIM
pump shaft rear bearing .010
1шт.
67
404777R92
PUMP, HYDRAULIC
PUMP ASSY, charge RH
1шт.
179809
BOLT,Hex, 1/4" - 20 x 3", Gr 5
1шт.
385180R1
WASHER
9/32 x 1/2 x .065
1шт.
68
371544R1
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
9/16 x 11/16 x 1/16
1шт.
69
394238R91
VALVE
ASSY, charge pump check
2шт.
70
404782R1
HANDLE
control valve shaft
1шт.
493-41026
LOCK WASHER,Ext Tooth, 1/4"
WASHER, 1/4 ext tooth lock
1шт.
71
394237R2
GASKET
control valve housing
1шт.
72
394214R1
LINK
control valve
1шт.
73
394825R1
DOWEL
PIN, 5/16 x 5/8 dowel
1шт.
Выбрано товаров: 106
