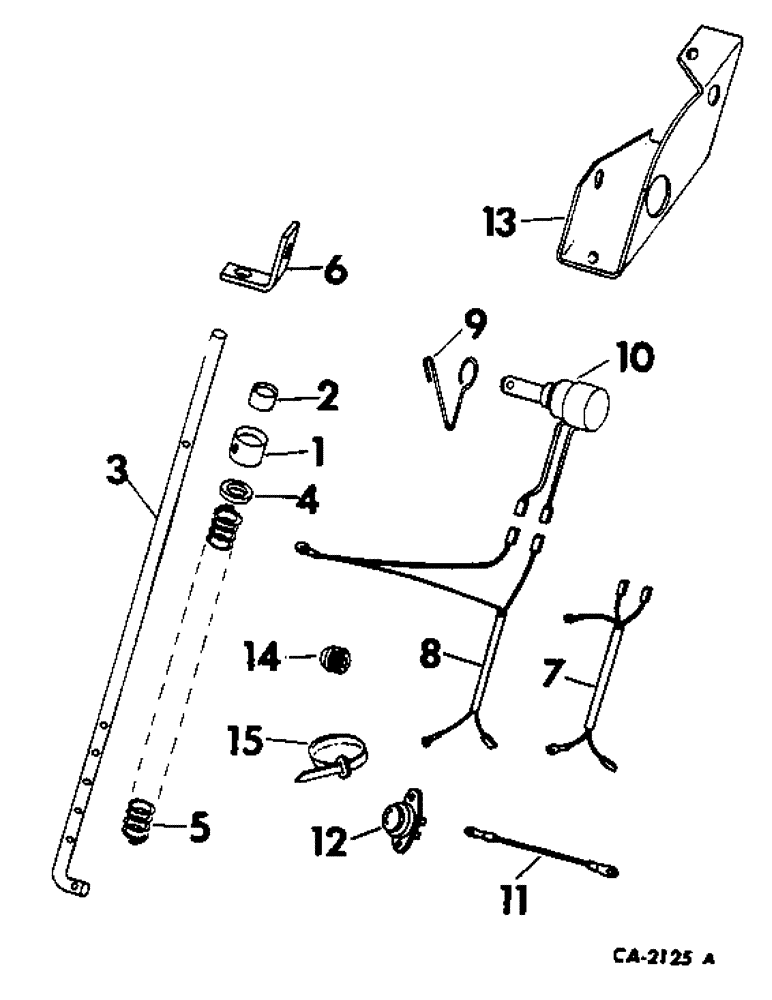

Запчасти Case IH 715 (10-15) - HYDRAULICS, REVERSE DRIVE LOCKOUT, NOT FOR 20 FT. HEADER WITH BOTTOM SHIELDS AND PICK UP REEL (07) - HYDRAULICS

1

175002C91

SLIDE W/ BUSHING, feeder switch, includes ref. no. 2

1шт.

436746

SCREW

NO. 10-NF x 1/4 znp p/hds mach

1шт.

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

2

175003C1

BUSHING

1шт.

3

175015C1

ROD, feeder switch

1шт.

586591R1

COTTER PIN

PIN, 1/8 qa

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

4

631833R1

WASHER, feeder switch rod fiber

1шт.

5

612871R1

SPRING

feeder switch rod

1шт.

6

179209C1

ANGLE, reverse lockout switch

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

7

196865C1

HARNESS ASSY, reverse lockout, belt drive

1шт.

8

196864C2

HARNESS ASSY, reverse lockout, hydrostatic drive

1шт.

9

175013C1

SPRING

solenoid extension

1шт.

10

175014C1

SOLENOID ASSY, lockout

1шт.

20117R1

PIN 1/8 x 1/2 CAD slt-spr

1шт.

11

175008C1

CABLE ASSY.

WIRE ASSY, push button switch to ground

1шт.

12

366317R93

SWITCH

SWICH ASSY, push button

1шт.

12

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

no. 10-32 sq

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10-NF x 1/2 znp p/hds mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

21742R1

WASHER

1.031 x 1.500 x .027

1шт.

13

COVER, hydrostatic speed lever, refer to group 7 under propulsion control, hydrostatic drive

1шт.

14

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

5/16 rubber

1шт.

15

702093C1

CABLE TIE

STRAP, wire tie

8шт.
