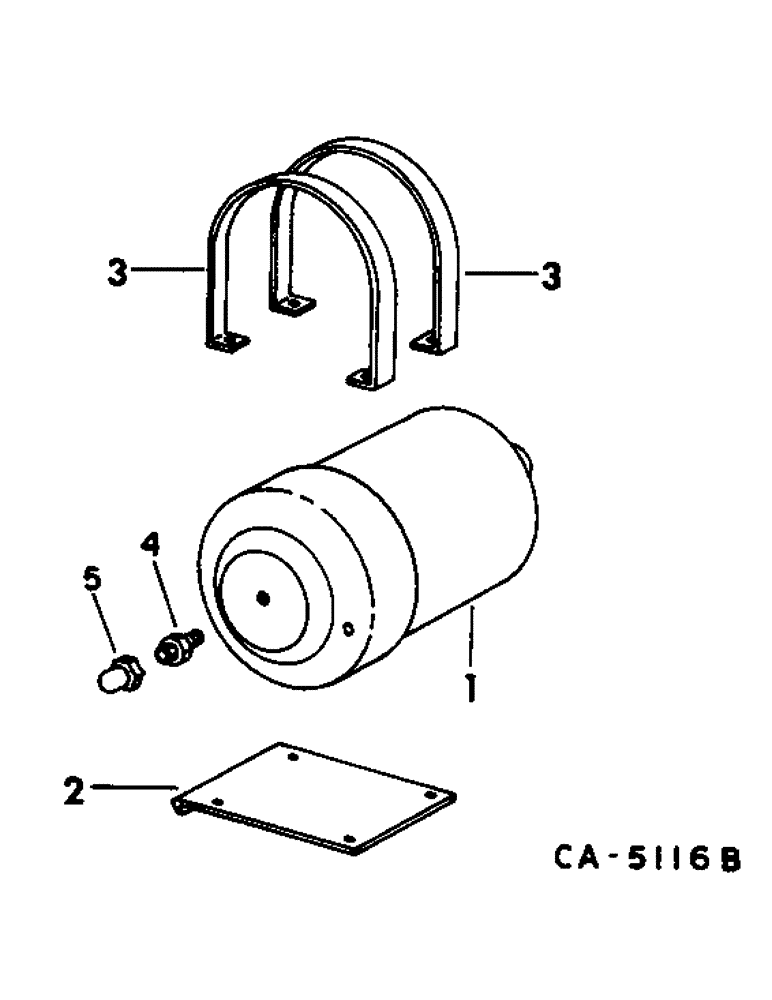

Запчасти Case IH 715 (10-14) - HYDRAULICS, ACCUMULATOR AND BRACKET (07) - HYDRAULICS

1

196811C91

ACCUMULATOR

ASSY, includes ref. nos. 4 and 5

1шт.

2

196678C1

SUPPORT ASSY.

SUPPORT, accumulator

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW, 3/8-16 x 1 lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

3

172133C1

SUPPORT

STRAP, accumulator mounting, bolt 5/16 x 1 hex-hd flange lock

2шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

4

172130C1

VALVE

ASSY

1шт.

5

172131C1

GUARD

valve

1шт.
