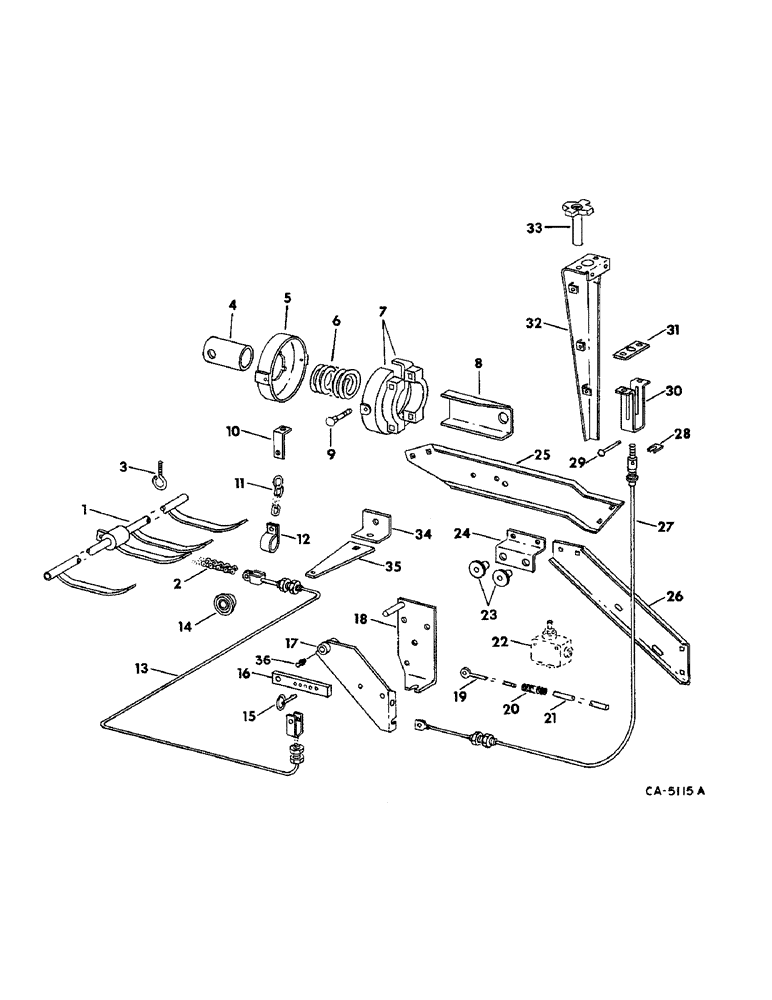

Запчасти Case IH 715 (10-12) - HYDRAULICS, AUTOMATIC HEADER CONTROL (07) - HYDRAULICS

1

178823C1

BAR ASSY.

BAR ASSY, finger, for 10, 13 and 15 ft header

1шт.

1

178825C1

BAR ASSY.

BAR ASSY, finger, for 16.5 17.5 and 20 ft headers

1шт.

2

174266C1

CHAIN (AG)

CHAIN, finger pivot

1шт.

3

159780C1

EYEBOLT,3/8" - 16 x 2.20", Full Thd

EYE BOLT, finger bar

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

4

179192C1

PIPE, header spring stop

2шт.

25765R1

WASHER, 2.062 x 2.938 x .164 PHC

1шт.

5

936778R2

FLANGE

helper spring front

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

6

159710C1

SPRING

header cylinder helper, for 13 ft header

2шт.

6

174211C1

SPRING, header cylinder helper, for 15, 16.5, 17.5 and 20 ft header

2шт.

7

936779R3

FLANGE, helper spring rear

4шт.

8

175733C2

SPACER, spring stop

2шт.

9

173932C1

BOLT,Spcl, 1/2" - 13 x 3 1/2"

helper spring flange

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

179435C1

ANGLE

chain anchor

2шт.

11

167570C1

CHAIN,203.2mm L

finger stop

2шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 slt-truss-hd

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

12

394133R1

FASTENER

CLAMP, cable support

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

13

174239C1

CABLE

height control lower, not w/34 in. tires

1шт.

13

174240C1

CABLE PULLING GRIP

CABLE, height control lower, for 34 in. tires

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

607895R1

WASHER

.531 x 1.000 x .105

1шт.

22042R1

WASHER

.531 x 2,000 x .105

1шт.

14

482635R2

ROLLER

header control chain idler, for floating cutter bar

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

607895R1

WASHER

.531 x 1.000 x .105

1шт.

22042R1

WASHER

.531 x 2.000 x .105

1шт.

15

174230C1

PIN

header control valve bar

1шт.

16

174244C1

BAR

header control valve

1шт.

17

196689C2

PIVOT

SUPPORT ASSY, pivot valve

1шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

18

196693C1

SUPPORT ASSY, valve pivot

1шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 type 1

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

19

198490C1

ROD

header control

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

20

391745R1

SPRING

valve pivot support

1шт.

21

196621C2

TUBE,0.402" ID, 0.5" OD, 6.88" Length

header control

1шт.

22

VALVE ASSY, automatic header control, refer to this group under automatic header flow control valve

1шт.

23

198374C1

NUT

INSULATOR, vibration mount

2шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

24

196694C1

SUPPORT ASSY, pivot

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

25

178841C2

SUPPORT, operators deck right, not window special

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

26

634149R1

SUPPORT, operators deck right, for window special

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 cgr type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

27

196688C1

CABLE

height control upper

1шт.

28

379187C1

CLIP

height control cable

1шт.

29

26618R1

SCREW

no. 10-24 x 2-1/2 cr

1шт.

19910R1

LOCK NUT

no. 10 cad p/t lock type 5

1шт.

120391

WASHER,#10

.219 x .500 x .036

1шт.

30

196664C1

SUPPORT, cable control

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

31

174213C1

BAR, screw base

1шт.

32

196663C2

COVER ASSY, instrument panel front

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 p/hds tap

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

33

174249C1

KNOB, height control cable

1шт.

34

179281C1

ANGLE, cable support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

35

179282C1

BRACKET

cable support

1шт.

36

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 selt-tap str lub

1шт.
