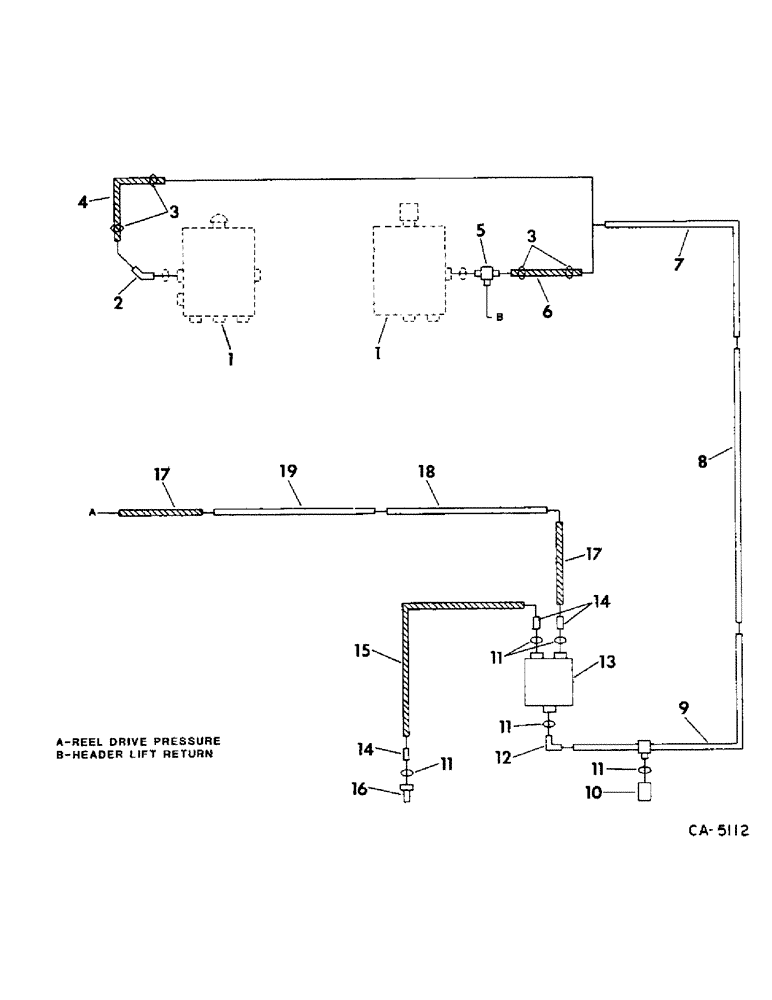

Запчасти Case IH 715 (10-07) - HYDRAULICS, HYDRAULIC DIAGRAM, REEL DRIVE, SEPARATOR PARTS (07) - HYDRAULICS

1

RESERVOIR ASSY, hydraulic oil, belt drive

1шт.

1

RESERVOIR ASSY, hydraulic oil, hydrostatic drive, refer to this group under hydraulic reservoir

1шт.

2

180230C1

ELBOW, 45 deg reel drive return, hydrostatic drive

1шт.

3

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, return upper hose

2шт.

4

HOSE ASSY, return upper, hydrostatic drive, use 8 in of 34 ID from bulk roll marked 180719C1

1шт.

5

196968C1

TEE, reel drive return, belt drive

1шт.

6

HOSE ASSY, return upper, belt drive, use 18 in. of 3/4 ID from from bulk roll marked 18719C1

1шт.

7

190881C1

TUBE ASSY, reel drive return rear

1шт.

8

187921C1

TUBE ASSY, return center

1шт.

9

187920C1

TUBE ASSY, return front

1шт.

10

395150R1

COUPLING, QUICK, FEM

COUPLING ASSY, self-sealing female

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

5шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 deg 7 8-14 37 deg flared

1шт.

13

DIVIDER ASSY, flow, refer to this group under reel drive flow divider

1шт.

14

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 x 3/4-16 37 deg flared

3шт.

15

195869C1

HOSE

ASSY, reel drive pressure

1шт.

16

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male

1шт.

17

587582R91

HOSE ASSY.

HOSE, pressure to flow control

2шт.

18

187922C1

TUBE ASSY, reel drive lower pressure

1шт.

19

190880C1

TUBE ASSY, reel drive upper lower

1шт.
