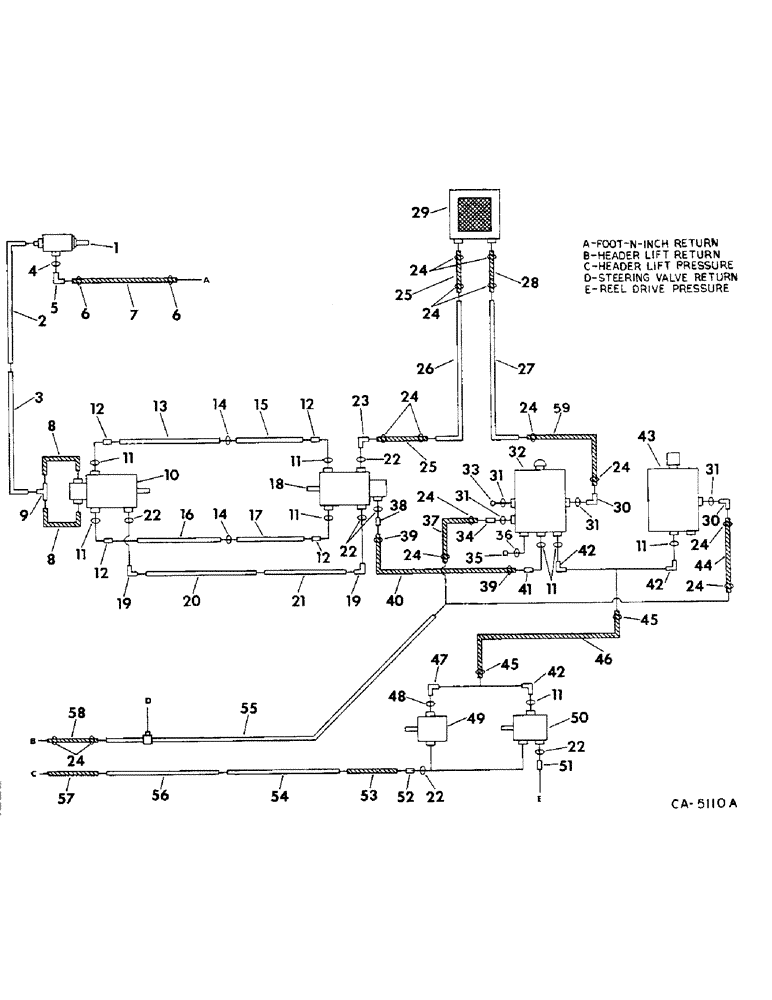

Запчасти Case IH 715 (10-03) - HYDRAULICS, HYDRAULIC DIAGRAM, HYDROSTATIC AND HEADER LIFT SYSTEM (07) - HYDRAULICS

1

VALVE ASSY, foot-n-inch, hydrostatic drive, refer to this group under foot-n-inch valve

1шт.

2

190853C2

TUBE ASSY, foot-n-inch upper, hydrostatic drive

1шт.

3

190865C1

TUBE ASSY, foot-n-inch lower, hydrostatic drive

1шт.

5

190854C1

ELBOW, 90 deg, hydrostatic drive

1шт.

6

244713R91

CLAMP, foot-n-inch return, hydrostatic drive, optional W 183699C1

1шт.

6

183699C1

CLAMP,#6, 0.44/0.78 Type M Worm

foot-n-inch return, hydrostatic drive, optional W 244713R91

1шт.

7

474441R1

HOSE, foot-n-inch return, hydrostatic drive

1шт.

8

175760C1

HOSE ASSY.

HOSE ASSY, foot-n-inch, hydrostatic drive

2шт.

9

9402979

TEE,7/16"-20, 37 Degree

7 16-20 37 deg flared hydrostatic drive

1шт.

10

MOTOR ASSY, ground drive, hydrostatic drive, refer to this group under hydrostatic motor

1шт.

11

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. OD

8шт.

12

163915C1

FITTING

CONNECTOR, hydrostatic drive

4шт.

13

175328C92

TUBE,1" OD

ASSY, forward pressure lower, hydrostatic drive

1шт.

14

343906R1

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1-5/16 x 1-9/16 x 1/8, hydrostatic drive

2шт.

15

196952C92

TUBE

ASSY, forward pressure upper, hydrostatic drive

1шт.

16

175329C92

TUBE

ASSY, rearward pressure lower, hydrostatic drive

1шт.

17

196507C92

TUBE ASSY, rearward pressure upper, hydrostatic drive

1шт.

18

PUMP ASSY, ground drive, refer to this group under hydraulic transmission pump

1шт.

19

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

9/8-14 37 deg flared, hydrostatic drive

2шт.

20

190850C1

TUBE ASSY, bleed lower, hydrostatic drive

1шт.

21

171354C1

TUBE ASSY, bleed upper, hydrostatic drive

1шт.

22

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, hydrostatic drive

6шт.

23

173844C1

ELBOW

hydrostatic drive

1шт.

24

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, cooler hose, hydrostatic drive

14шт.

25

HOSE, pump to oil cooler, hydrostatic drive, use 18 in. of 5/8 ID from 50 ft roll marked 180719C1

2шт.

26

190864C1

TUBE ASSY, pump to oil cooler, hydrostatic drive

1шт.

27

190866C1

TUBE ASSY, oil cooler to reservoir, hydrostatic drive

1шт.

28

HOSE, oil cooler to reservoir, hydrostatic drive, use 25 in. of 3/4 ID from 25 ft. roll marked 180720C1

1шт.

29

COOLER, oil, hydrostatic drive, refer to this group under oil cooler

1шт.

30

387006R91

ELBOW

90 deg

2шт.

31

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 in., 1 used for belt drive, 3 used for hydrostatic drive

1шт.

32

RESERVOIR ASSY, hydrostatic, hydrostatic drive, refer to this group under hydraulic reservoir

1шт.

33

9410361

PLUG

3/4 in., hydrostatic drive

1шт.

34

470420R11

FITTING

CONNECTOR, header lift return, hydrostatic drive

1шт.

35

9410359

PLUG

1/2 in. drain, hydrostatic drive

1шт.

36

570282R1

O-RING, 1/2 in., hydrostatic drive

1шт.

37

HOSE, header lift return, hydrostatic drive, use 7 in. of 3/4 ID from 25 ft roll marked 180720C1

1шт.

38

387488R1

CONNECTOR, ELEC

CONNECTOR, hydrostatic drive

1шт.

39

330710R91

CLAMP, pump suction hose, hydrostatic drive

2шт.

40

HOSE, pump suction, hydrostatic drive, use 18 in. of 3/4 ID from 25 ft. roll marked 180721C1

1шт.

41

195622C1

PIN

CONNECTOR, charged pump suction, hydrostatic drive

1шт.

42

179379C1

ELBOW

90 deg. header lift suction

3шт.

43

RESERVOIR ASSY, hydraulic, belt drive, refer to this group under hydraulic reservoir

1шт.

44

HOSE, header lift return, belt drive, use in. of 3/4 ID from 25 ft. roll marked 180720C1

1шт.

45

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, header lift pump suction hose

2шт.

46

190851C2

HOSE

header lift pump suction

1шт.

47

178995C1

ELBOW

90 deg pump suction, for 190872C91 pump

1шт.

47

179379C1

ELBOW

90 deg pump suction, for 196691C91 pump

1шт.

48

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 in., for 190872C91 pump

1шт.

48

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in., for 196691C91 pump

1шт.

49

PUMP ASSY, hydraulic lift, Cessna

1шт.

49

PUMP ASSY, hydraulic lift, Webster, refer to this group under hydraulic lift pump, not hydraulic reel drive

1шт.

50

PUMP ASSY, hydraulic lift, refer to this group under hydraulic lift pump, for hydraulic reel drive

1шт.

51

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 x 3/4-16 37 deg flared

1шт.

52

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg flared

1шт.

53

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, header lift pressure

1шт.

54

190856C1

TUBE ASSY, header lift pressure upper

1шт.

55

190868C1

TUBE, header lift return

1шт.

56

190869C1

TUBE ASSY, header lift pressure lower

1шт.

57

155225C91

HOSE ASSY.

HOSE ASSY, header lift pressure

1шт.

58

HOSE, header lift return, use 12 in. of 3/4 ID from 25 ft. roll marked 18720C1

1шт.

59

HOSE, oil cooler to reservoir, use 18 in. of 3/4 ID from 25 ft. roll marked 18720C1

1шт.

4

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Hydrostatic drive

1шт.
