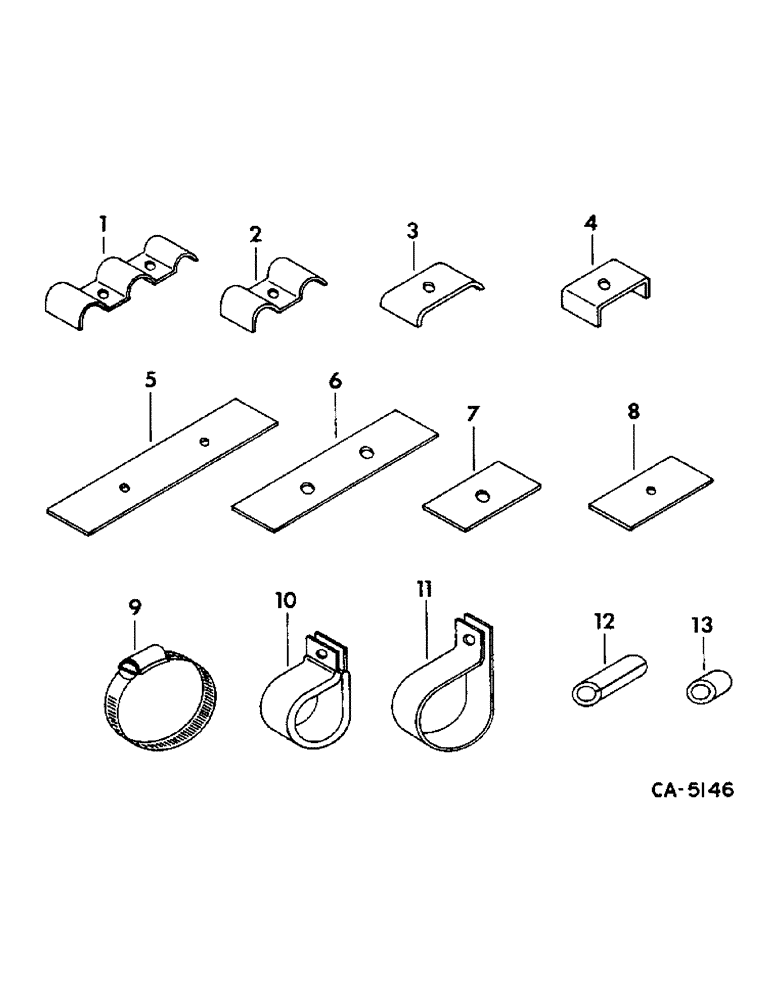

Запчасти Case IH 715 (10-02) - HYDRAULICS, HYDRAULIC CLAMPS AND STRIPS (07) - HYDRAULICS

1

150778C1

CLAMP, hydrostatic motor to pump upper tubes

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

2

157678C1

CLAMP

hydrostatic motor to pump lower tubes

1шт.

271501

SOCKET

NUT, 7/16 type 5

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

3

165602C1

CLAMP

foot-n-inch upper, reel lift and steering, for 3/8 OD tube

1шт.

3

165601C1

CLAMP

header lift cylinder, header lift upper oil cooler and reel drive lower pressure, for 5/8 OD tube

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 type 1

1шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 type 1

1шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 crg type 1

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 type 1

1шт.

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

5/16 x 1-1/4 slt-truss-hd

1шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 znp slt-truss-hd

1шт.

4

178816C1

CLIP

reel lift hose

4шт.

5

150780C1

STRAP

STRIP, hydrostatic motor to pump upper tubes, 7 in.

1шт.

6

150779C1

TUBE

STRIP, hydrostatic motor to pump upper tubes, 6 in.

1шт.

7

157679C1

STRIP, hydrostatic motor to pump lower tubes, 3.8 in.

1шт.

8

157783C1

STRIP, hydrostatic motor to pump lower tubes, 4 in.

1шт.

9

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, hydrostatic pump to oil cooler, oil coller to reservoir and header lift return hose

10шт.

9

279024R91

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP, header lift pump suction hose

2шт.

9

244713R91

CLAMP, foot-n-inch return hose, optional w/183699C

2шт.

9

183699C1

CLAMP,#6, 0.44/0.78 Type M Worm

foot-n-inch return hose, optional w/244713R

1шт.

9

333710R91

HOSE CLAMP,#16, 0.81/1.50 Type F Worm

SWITCH MOUNTING,, hydrostatic pump suction

2шт.

9

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, foot-n-inch lower

2шт.

10

27291R1

CLAMP

header lift hose

1шт.

10

567895R2

CLIP, header lift cylinder

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

5/16 x 3/4 znp hex-hd flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

11

394133R1

FASTENER

CLAMP, header lift suction hose

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

12

163489C1

STRIP

foot-n-inch upper and lower, for 1/4 OD tube

3шт.

12

163490C1

RUBBER INSULATOR

STRIP, reel lift and steering, for 3/8 OD tube

1шт.

12

163491C1

RUBBER INSULATOR

STRIP, reel drive, for 1/2 OD tube

4шт.

12

163492C1

RUBBER INSULATOR

STRIP, header lift upper, lower and return, header lift cylinder and oil cooler, for 5/8 OD tube

1шт.

12

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

header lift upper, lower and return, oil cooler, for 3/4 OD tube

5шт.

13

61851V

SPACER,1/4" Pipe x 3/4"

Reel lift hose clip 1/4" Pipe x 3/4"

4шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt truss hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.
