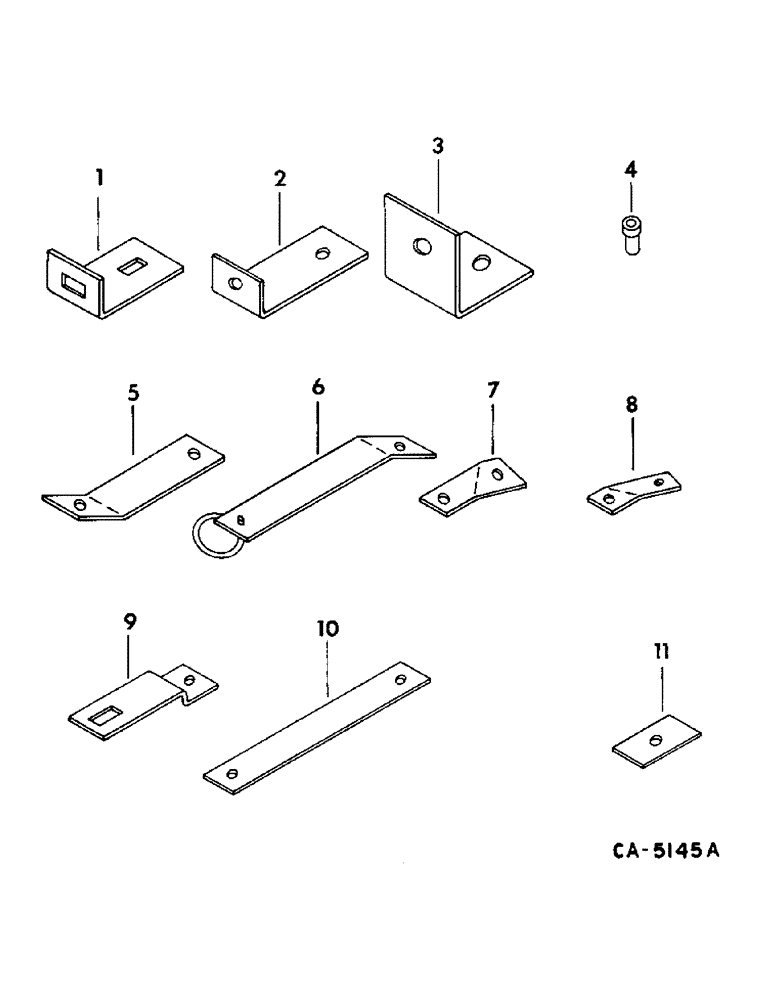

Запчасти Case IH 715 (10-01) - HYDRAULICS, HYDRAULIC BRACKETS (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
165599C1
BRACKET, header lift cylinder
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16 x 3/4 znp hex-hd flange lock
1шт.
2
171934C1
BRACKET, steering
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
2
187919C1
SUPPORT, reel drive tube
1шт.
541313R1
BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"
SCREW, 3/8 x 3/4 hex-hd flange
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
3
178986C1
BRACKET, flow control valve return and reel lift support
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 crg type 1
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
151446C1
SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"
5/16 x 1-1/4 slt-truss-hd
1шт.
4
198374C1
NUT
INSULATOR, vibration mount
5шт.
5
173142C1
STRAP, header lift cylinder
2шт.
6
173143C1
SUPPORT ASSY.
SUPPORT ASSY, header lift cyl
2шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 type 1
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
7
179248C1
BRACKET, foot-n-inch upper
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss hd
1шт.
8
187641C1
BRACKET, header lift cylinder and hydraulic oil cooler
1шт.
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
5/16 x 3/4 znp hex-hd flange lock
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
9
171946C1
BRACKET, header lift return
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 flange lock
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 znp slt-truss-hd
1шт.
10
178815C1
STRAP
reel lift hose support RH
1шт.
11
573186R1
PLATE
BRACKET, header lift lower
1шт.
Выбрано товаров: 30
