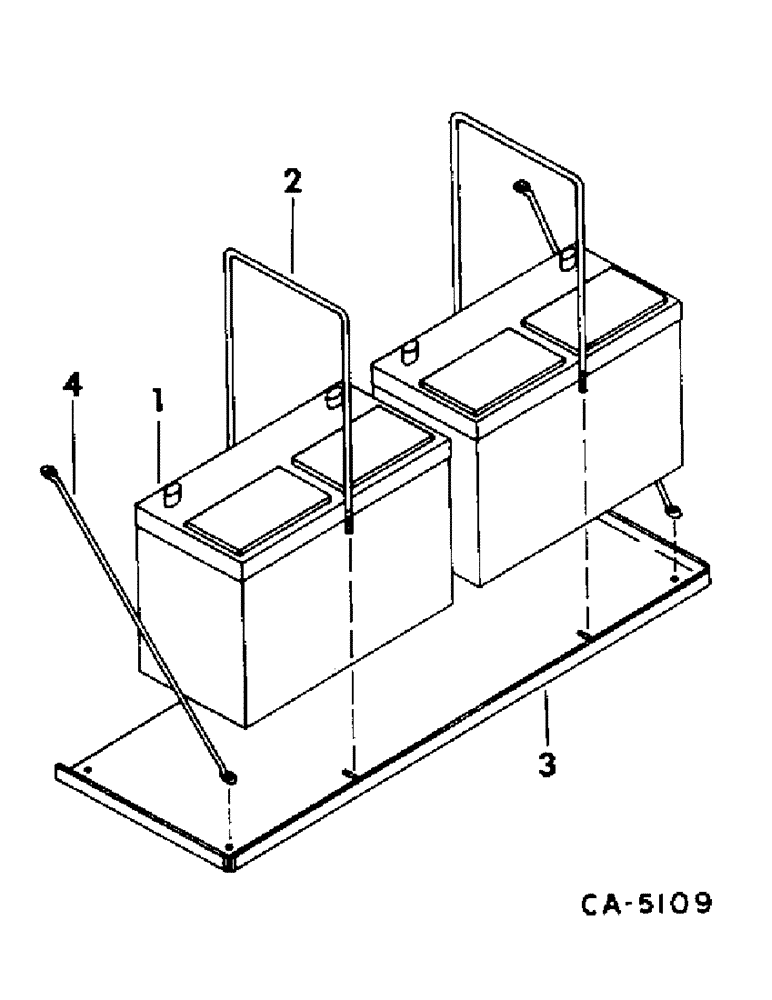

Запчасти Case IH 715 (08-13) - ELECTRICAL, BATTERY AND MOUNTING (06) - ELECTRICAL

1

IHMF24PF

DRY BATTERY

12 volt

2шт.

2

190837C1

BOLT,5/16" - 18 x 7.44" W x 8.80" L

battery clamp

2шт.

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD pt lock type 5

1шт.

3

190838C1

SUPPORT, battery

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

4

190839C1

ROD, battery support

2шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

21496R1

WASHER

344 x 750 x 105

1шт.
