Запчасти Case IH 715 (08-12) - ELECTRICAL, MONITOR CONTROL (06) - ELECTRICAL

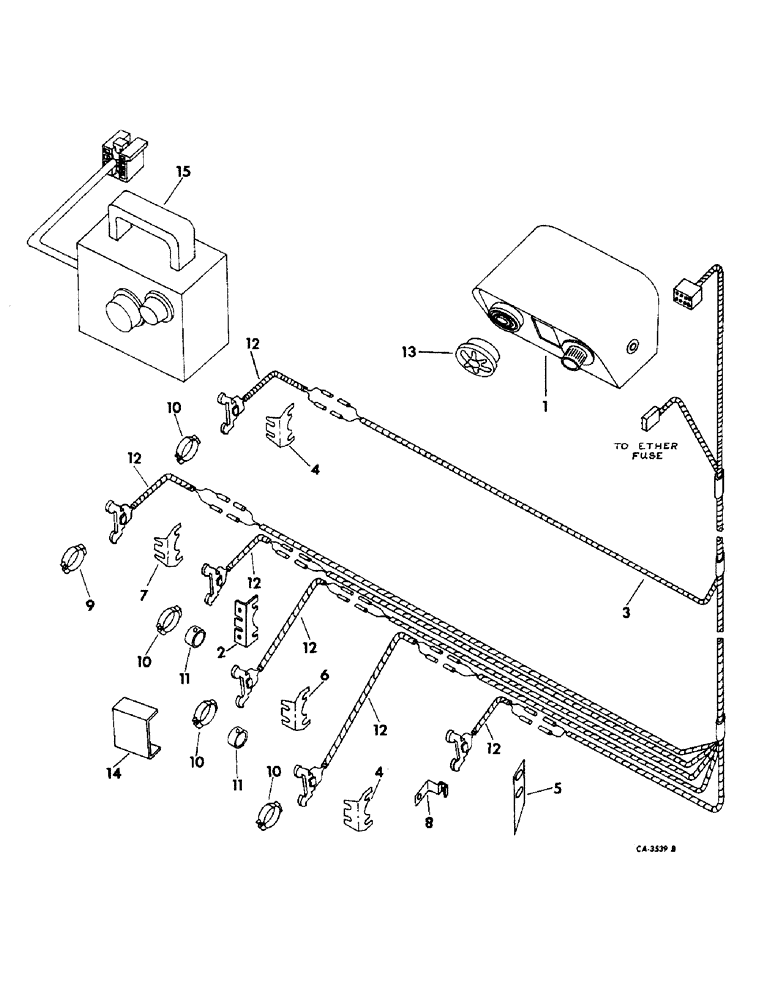

Схема запчастей Case IH 715 - (08-12) - ELECTRICAL, MONITOR CONTROL (06) - ELECTRICAL
10
13
15
11
12
1
12
12
7
10
10
12
11
14
12
8
2
3
12
9
5
10
6
4
4

Артикул

Название

Примечание

Количество

1

178786C2

CONTROL

CONSOLE ASSY, control

1шт.

2

187615C2

BRACKET

SUPPORT, tailings elevator sensor mounting

1шт.

3

178787C2

HARNESS

wiring

1шт.

4

178790C1

BRACKET

fan and straw walker sensor

1шт.

5

178791C1

BRACKET, shoe sensor mounting

1шт.

6

178794C1

BRACKET

grain elevators sensors mounting

1шт.

7

178796C1

BRACKET

straw chopper sensor mounting

1шт.

8

178797C1

MAGNET

ASSY, shoe sensor

1шт.

9

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET ASSY, straw chopper sensor

1шт.

10

178800C1

CLAMP

ASSY, sensor

4шт.

11

178801C1

COLLAR

grain and tailings elevator sensor

2шт.

12

178806C1

SWITCH

ASSY, reed

6шт.

13

178876C1

SUPPRESSOR

audible alarm

1шт.

14

187616C1

SUPPORT

tailings elevator sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

15

178755C1

TEST UNIT, monitoring

1шт.

Выбрано товаров: 17
