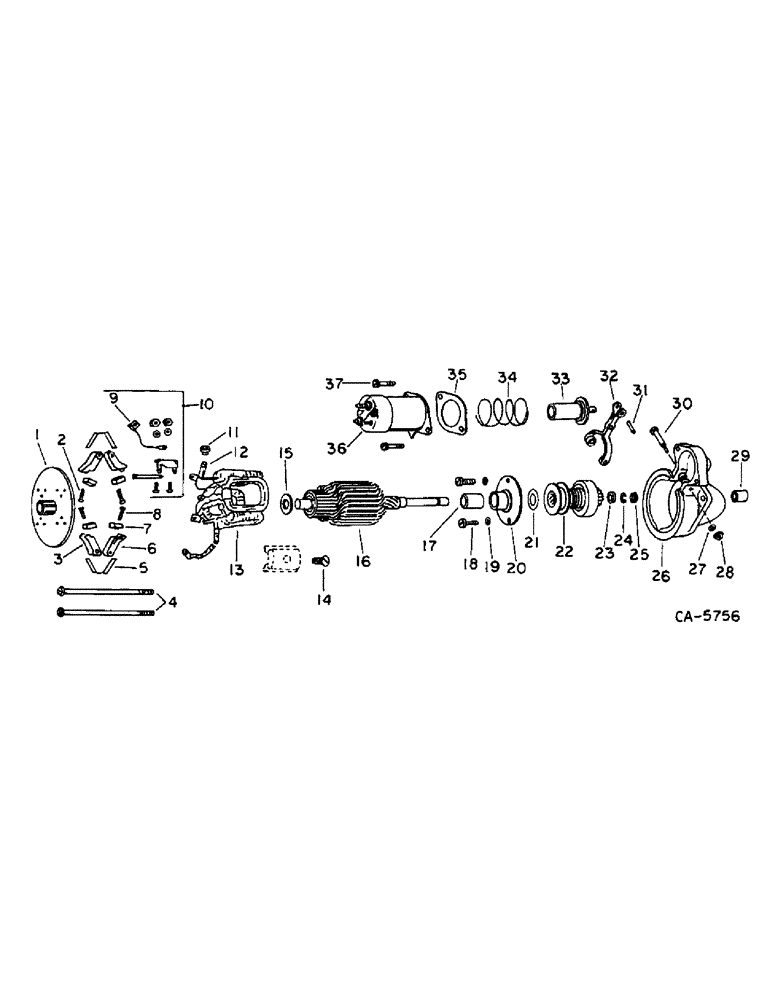

Запчасти Case IH 715 (08-11) - ELECTRICAL, CRANKING MOTOR (06) - ELECTRICAL

1109258

MOTOR

MOTOR ASSY, cranking, 121913C91

1шт.

104193A1R

REMAN-STARTER

Remanufactured Starter

1шт.

104193A1C

CORE-STARTER

Return Number

1шт.

1

1876364

FRAME

FRAME, commutator end

1шт.

1919851

WICK

WICK, commutator end frame

1шт.

2

1959514

SCREW

SCREW, brush insulated attaching

2шт.

3

1876359

HOLDER

HOLDER, brush ground

2шт.

4

1960908

BOLT (SPREADER)

BOLT, drive housing thru

2шт.

5

1945620

SPRING

SPRING, commutator brush

4шт.

6

1950546

HOLDER

HOLDER, brush insulated

2шт.

7

1946434

BRUSH, COMMUTATOR

BRUSH BRUSH, commutator

4шт.

8

274875

SHAFT

SPARE PART SCREW, brush ground attaching

2шт.

9

1876361

CABLE

LEAD, brush ground

2шт.

10

1876458

SUPPORT

PACKAGE, brush holder support

2шт.

11

1955946

GROMMET

GROMMET

1шт.

12

1876358

CONNECTING ROD

CONNECTOR

1шт.

13

1876367

COIL

COIL ASSY, field

1шт.

14

1968396

SCREW

SCREW, pole shoe

8шт.

15

1914842

WASHER

WASHER, commutator end brake

1шт.

16

1876366

ARMATURE

ARMATURE

1шт.

17

1894023

BUSHING

BRUSHING, center bearing brake plate

1шт.

18

1914580

SCREW

SCREW, center bearing brake plate

2шт.

19

1962276

WASHER

WASHER, center bearing brake plate

2шт.

20

820149

PLATE

PLATE, center bearing brake

1шт.

21

R15043

WASHER

WASHER, motor drive brake

1шт.

22

1877355

DRIVE

DRIVE, motor

1шт.

23

1928021

COLLAR

COLLAR, pinion stop retainer

1шт.

24

1928022

SNAP RING

RING, pinion stop

1шт.

25

1964410

COLLAR

SPARE PART COLLAR, pinion stop thrust

1шт.

26

1894024

HOUSING, drive end

1шт.

1916439

WICK

WICK, drive and housing oil

1шт.

27

9421424

LOCK WASHER

WASHER, shift lever pivot stud lock

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

NUT, shift lever pivot stud

1шт.

29

1862383

BUSHING

BRUSHING, drive end housing

1шт.

30

1932197

SCREW

STUD, shift lever pivot

1шт.

31

1894321

PIN

PIN, solenoid switch plunger

1шт.

32

1951567

LEVER

LEVER, shift

1шт.

33

1941113

PLUNGER

PLUNGER, solenoid switch

1шт.

34

1958679

SPRING

SPRING, solenoid plunger return

1шт.

35

1952427

GASKET

GASKET, solenoid switch

1шт.

36

1114458

SWITCH

SWITCH, solenoid, optional w/65478C1

1шт.

36

65478C1

SWITCH

SWITCH, solenoid, optional w/1114458

1шт.

37

9413260

SCREW, 1/4 x 1/2 fil-hd mach

2шт.
