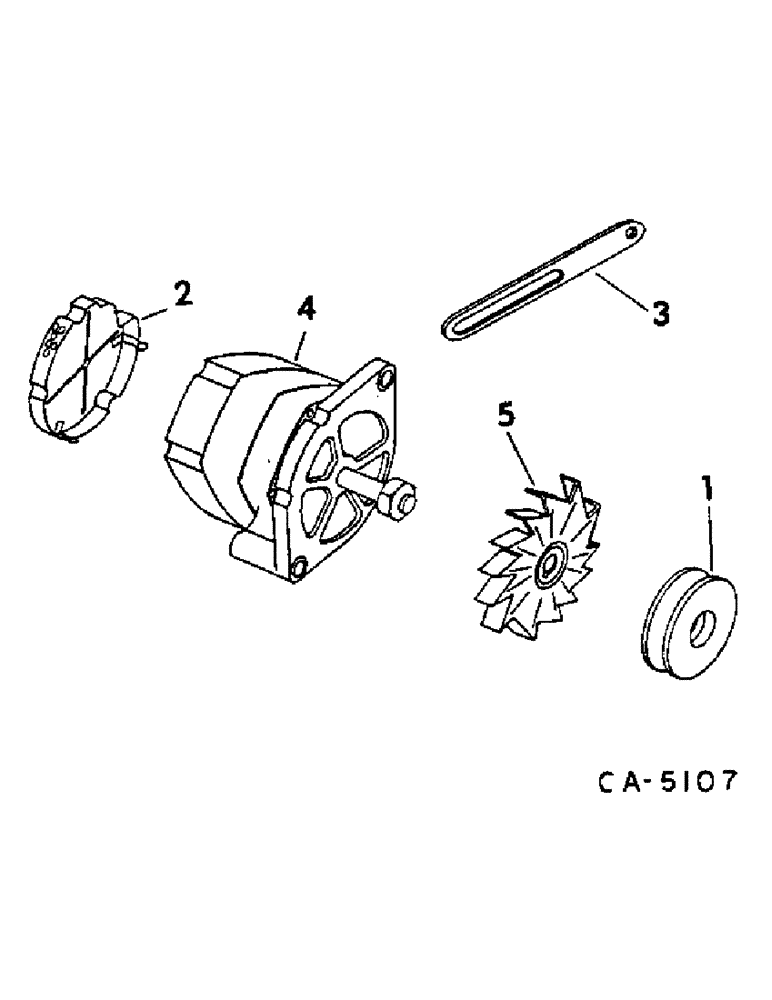

Запчасти Case IH 715 (08-10) - ELECTRICAL, ALTERNATOR GENERATOR AND MOUNTINGS (06) - ELECTRICAL

1

528173R1

PULLEY

alternator-generator

1шт.

2

1851153

SHIELD

COVER ASSY, alternator

1шт.

3

396359R2

BAR

BRACE, alternator-generator

1шт.

120376

NUT,5/16"-18, G5

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21496R1

WASHER

.344 x .750 x .105

1шт.

4

ALTERNATOR-GENERATOR, refer to this group under alternator- generator

1шт.

121743

CHAIN,#12 - 24

no. 12 mach screw type 1

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 PHC p/t lock type 5

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

5

221425R11

FAN, alternator-generator

1шт.
