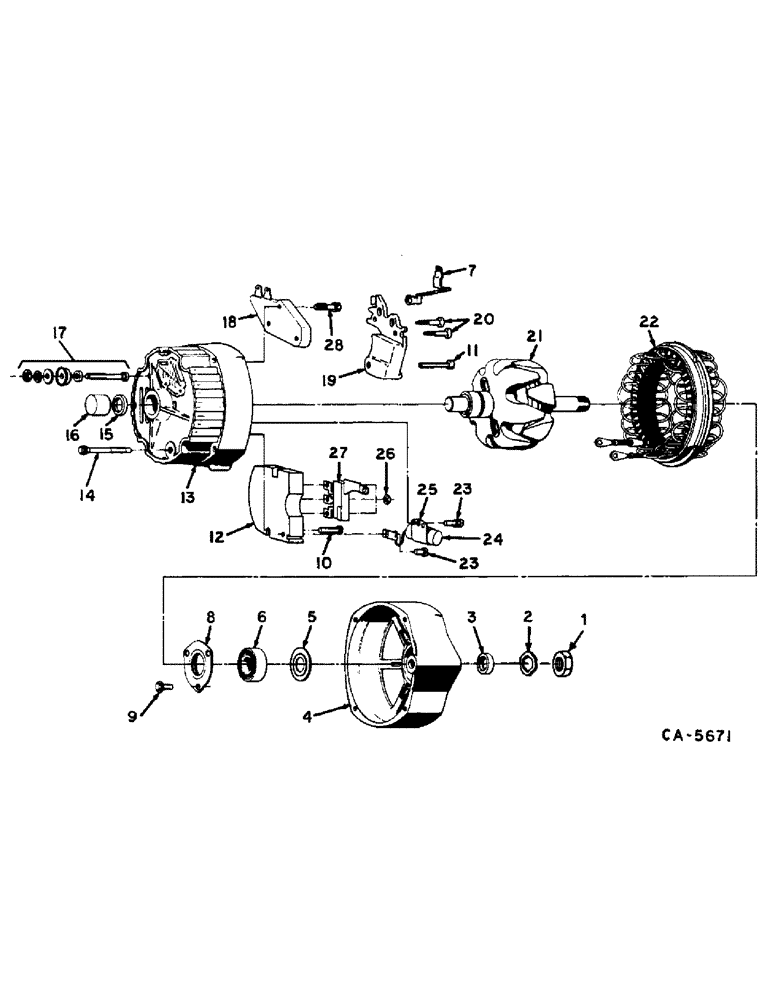

Запчасти Case IH 715 (08-09) - ELECTRICAL, ALTERNATOR GENERATOR, SERIAL NO. 24122 AND ABOVE (06) - ELECTRICAL

1103183

ALTERNATOR

ALTERNATOR-GENERATOR, -61 ampere

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number, Alternator

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

103802A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, 3/8 x 3 type 5

1шт.

225-14112

NUT,#12-24

NUT, no. 12 mach screw type1

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 PHC p/t lock type 5

1шт.

121744

ANGLE

Washer, Lock, #12

1шт.

1

1915172

NUT

NUT, drive shaft end

1шт.

2

1941978

WASHER

WASHER, drive end shaft lock

1шт.

3

A49733

COLLAR

COLLAR, drive end shaft

1шт.

4

1976808

FRAME

FRAME, drive end

1шт.

5

(Not used this application)

1шт.

6

1974861

BALL BEARING

BEARING, drive end ball

1шт.

7

1894568

ELEC CONNECTOR

TERMINAL, relay

1шт.

8

1971993

PLATE

PLATE, drive end ball bearing retainer

1шт.

9

1965104

HOSE

SCREW, bearing retainer plate attaching

3шт.

10

1876668

SCREW

SCREW, rectifier support

1шт.

11

1974020

SCREW

SCREW, brush holder pivot

1шт.

12

1891055

SUPPORT

SUPPORT, rectifier

1шт.

13

1975718

FRAME

FRAME, slip ring end

1шт.

14

1956975

BOLT

SCREW, frame attaching

4шт.

15

(Not used this application)

1шт.

16

1974862

BUSHING

BEARING, slip ring end roller

1шт.

17

1975471

PACKAGE

PACKAGE, battery terminal

1шт.

18

1116387H

VOLTAGE REGULATOR

REGULATOR, voltage

1шт.

19

1894559

HOLDER

HOLDER ASSY, brush and brush

1шт.

20

1876681

SCREW

SCREW ASSY, brush holder insulated

2шт.

21

1876163

ROTOR

ROTOR ASSY

1шт.

22

1894562

STATOR

STATOR ASSY

1шт.

23

1851612

SCREW

SCREW W/LOCK WASHER, capacitor bracket and lead attaching

2шт.

24

1971411

CAPACITOR

CAPACITOR ASSY

1шт.

25

1869573

BRACKET

BRACKET, capacitor mounting

1шт.

26

453996

NUT,#8-32

NUT, no. 8 hex type 1

3шт.

27

1971528

RECTIFIER

RETIFIER, diode trio

1шт.

28

1894586

SCREW

SCREW ASSY, brush holder ground

1шт.
