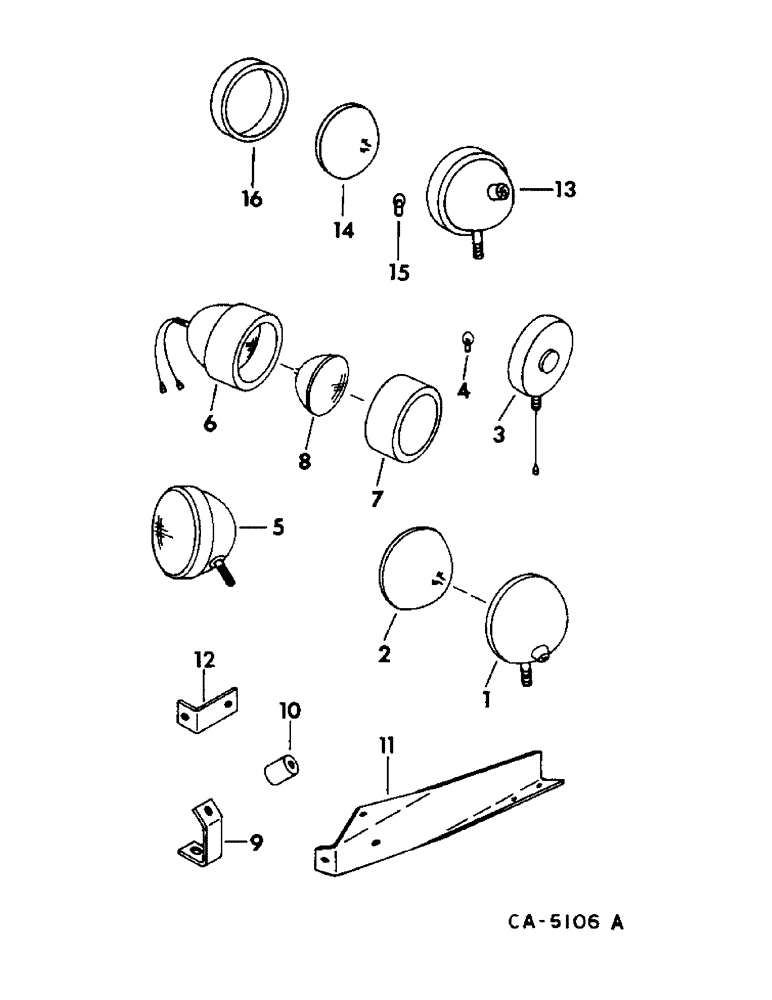

Запчасти Case IH 715 (08-06) - ELECTRICAL, LIGHTS, MOUNTINGS AND BRACKETS (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
376849R91
HEADLIGHT
LIGHTS ASSY, headlight, includes ref. no. 2
2шт.
120379
WASHER, 5/16 light lock
1шт.
366112R1
WASHER
.781 x 1.250 x .105
1шт.
2
373662R91
LAMP
UNIT ASSY, seal beam
2шт.
3
196978C91
LIGHT
ASSY, flasher, includes ref. no. 4
4шт.
120371
NUT,1/2"-20, G5
1шт.
394262R1
WASHER
.50 x 1.32 x .06 rubber
1шт.
4
9417866
BULB,C6, #1156, 12.8V
no. 1156
4шт.
5
391005R91
HEADLIGHT
LAMP ASSY, grain tank and unloader, headlights, 2, for use w/o cab
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
366112R1
WASHER
.781 x 1.250 x .105
1шт.
6
175569C91
HEADLAMP
LIGHT ASSY, for operators cab, includes ref nos. 7 and 8
2шт.
7
175570C1
SEAL RETAINER
RETAINER, light
2шт.
8
373662R91
LAMP
seal beam
2шт.
9
561915R1
BRACKET
grain tank, LH headlight, tail light and unloader lights
4шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
1шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 type 1
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 type 1
1шт.
120376
NUT,5/16"-18, G5
1шт.
23060R1
LOCK WASHER,Int Tooth, 5/16"
WASHER, 5/16 int tooth lock
1шт.
106969R1
WASHER
.344 x 1.250 x .054
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
10
49069D
SPACER
grain tank LH headlight tail light and unloader lights
1шт.
11
175389C2
SUPPORT, RH headlight
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 type 1
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
12
195823C1
ANGLE, flasher lights rear and LH front
3шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
1шт.
13
387729R92
LIGHT ASSY.
LIGHT ASSY, rear and tail, includes ref. no. 14 thru 16
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
14
371461R91
LENS
LAMP, seal beam
1шт.
15
455490
BULB,C-6, #1003, 12V, .94W
no. 1003
1шт.
16
676078R1
RETAINER
light
1шт.
Выбрано товаров: 36
