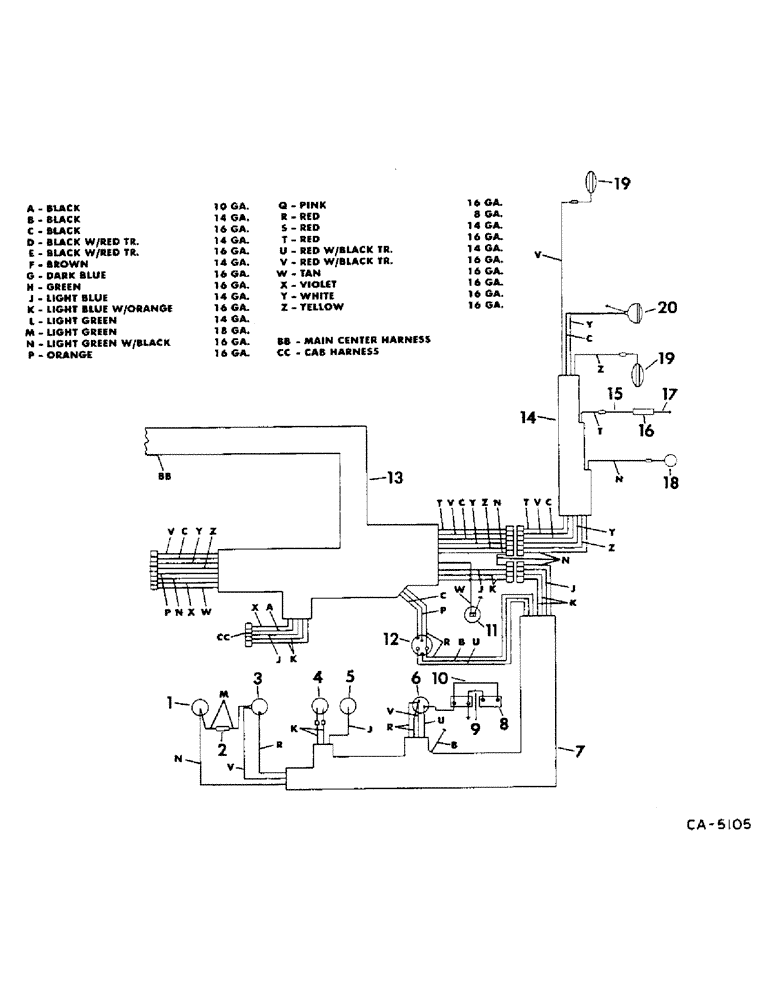

Запчасти Case IH 715 (08-04) - ELECTRICAL, WIRING DIAGRAM, REAR SECTION (06) - ELECTRICAL

1

SOLENOID, fuel injection pump, refer to eng-5 parts catalog section C

1шт.

2

548239R2

RECTIFIER

DIODE ASSY

1шт.

3

ALTERNATOR, generator, refer to this group under alternator generator

1шт.

4

SWITCH, hi-pressure, refer to group 13 under air conditioning

1шт.

5

CLUTCH ASSY, air conditioner, refer to group 13 under air conditioning

1шт.

6

MOTOR, cranking, refer to this group under cranking motor

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120622

NUT,#8-32

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180358

LOCK WASHER,Int Tooth, 3/8", Hvy

WASHER, 3/8 hvy-int tooth lock

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

107473C1

HARNESS ASSY, engine

1шт.

8

BATTERY, refer to this group under battery

1шт.

9

196994C1

CABLE

ASSY, Serial Range: battery-ground

1шт.

10

196995C1

CABLE

ASSY, battery to starting motor

1шт.

11

ETHER starting, refer to group 12 under ether starting

1шт.

12

121613C1

IGNITION SWITCH

SWITCH, magnetic rear, replaces 545756R switch

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

13

198033C1

HARNESS ASSY, main center

1шт.

14

198034C1

HARNESS ASSY, main rear

1шт.

15

198046C1

CABLE ASSY, switch to harness, for straw chopper

1шт.

16

574549R91

SWITCH ASSY, straw chopper

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 znp p/hds mach

1шт.

492-11006

LOCK WASHER,#6

Lock, #6

1шт.

NLS

NO LONGER SERVICED

.156 x .375 x .036

1шт.

17

167580C91

CABLE ASSY, switch to ground, for straw chopper, serial no. 26000 and below

1шт.

17

175008C1

CABLE ASSY.

WIRE, switch to ground, serial no. 26001 and above

1шт.

18

PUMP, fuel, refer to group 12 under fuel tank and connections

1шт.

19

LIGHT ASSY, flasher, refer to this group under lights

2шт.

20

LAMP ASSY, taillight, refer to this group under lights

1шт.
