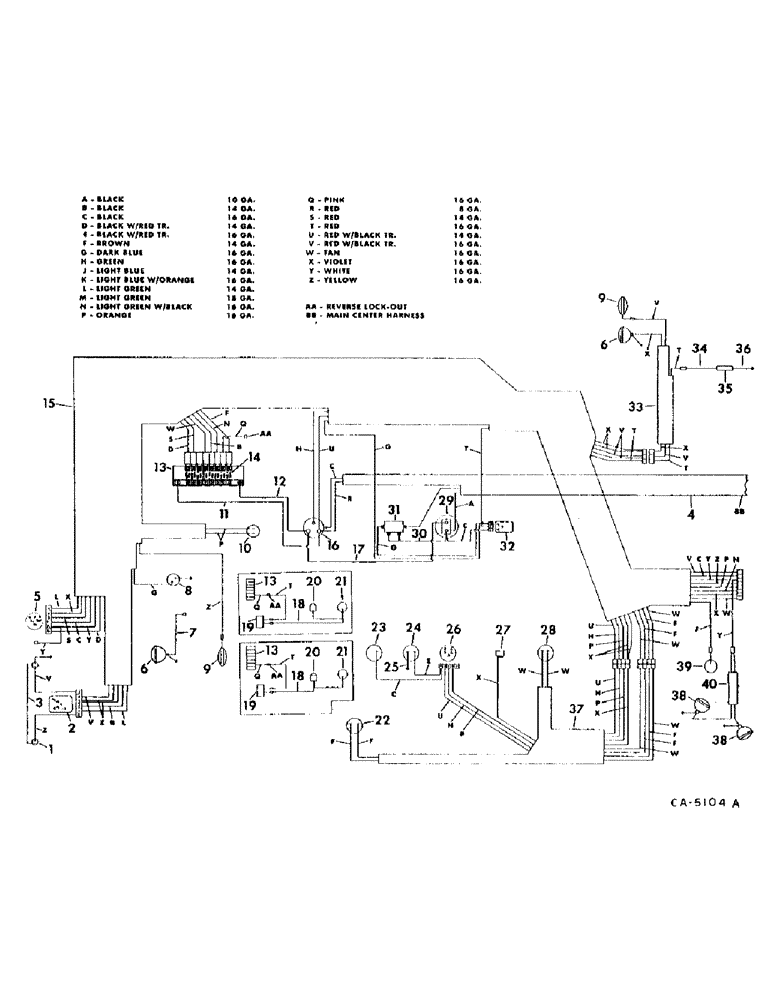

Запчасти Case IH 715 (08-02) - ELECTRICAL, WIRING DIAGRAM, FRONT SECTION (06) - ELECTRICAL

1

121684C91

LIGHT ASSY.

LIGHT, flasher indicator

2шт.

2

131066C91

SWITCH

turn signal, optional w/131209C91

1шт.

2

131209C91

SWITCH

ASSY, turnsignal and flasher, optional w/131 066 C91

1шт.

3

187500C1

CABLE ASSY, turn signal indicator ground

1шт.

4

HARNESS ASSY, main center, refer to this group under wiring diagram, rear section

1шт.

5

107200C2

LIGHT SWITCH

SWITCH ASSY, light

1шт.

6

LIGHT ASSY, headlight, refer to this group under lights

2шт.

7

167412C1

CABLE

left headlight, for operators cab

1шт.

8

121628C1

BUZZER

ALARM, electronic audible

1шт.

9

LIGHT ASSY, flasher, refer to this group under lights

2шт.

10

121629C1

IGNITION SWITCH

SWITCH ASSY, safety starting

1шт.

11

196861C1

CABLE, magnetic switch to fuse panel LH

1шт.

12

196862C1

CABLE, magnetic switch to fuse panel RH

1шт.

13

187575C1

BLOCK

fuse panel

1шт.

120361

NUT,Hex Mach Screw, #10 - 24

1шт.

436733

BOLT

SCREW, no. 10 x 5/8 znp p/hds mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

14

117142

FUSE,10 Amp, Type 3AG

cartridge type, 10 amp

5шт.

14

455844

FUSE,25 Amp, Type 3AG

cartridge type, 25 amp

2шт.

14

223-31

FUSE,10 Amp, Type 3AG

cartridge type, 30 amp

1шт.

15

198032C1

HARNESS ASSY, main front

1шт.

16

107655C1

SOLENOID SWITCH

SWITCH ASSY, magnetic

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 slt-truss-hd

1шт.

17

196860C1

CABLE, magnetic switch to circuit breaker

1шт.

18

HARNESS ASSY, reverse lockout, refer to group 10 under reverse lockout

1шт.

19

SOLENOID, reverse lockout, refer to group 10 under reverse lockout

1шт.

20

SWITCH, push button, refer to group 10 under reverse lockout

1шт.

21

SWITCH, feeder slide, refer to group 10 under reverse lockout

1шт.

22

244641R91

SWITCH

feeder clutch

1шт.

23

GAUGE ASSY, volt meter, refer to group 11 under instruments and gauges

1шт.

24

GAUGE ASSY, hourmeter, refer to group 11 under instruments and gauges

1шт.

25

CABLE, ground, refer to group 11 under instruments and gauges

1шт.

26

107682C1

SWITCH

ASSY, ignition

1шт.

131313C1

KEY, IGNITION

switch, replaces 382458R key

1шт.

27

SOCKET ASSY, instrument light, refer to group 11 under instruments and gauges

1шт.

28

395074R93

SWITCH

ASSY, ether push button

1шт.

120611

NUT,#10 - 32

no. 10-32 sq

1шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

no. 8 x 1/2 znp p/hds mach

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no 10-NF x 1/2 znp p/hds mach

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

29

173906C1

BREAKER

CIRCUIT, breaker, 30 amp

1шт.

19302R1

NUT

no. 10 CAD mach screw type 1

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znp p/hds mach

1шт.

115707

LOCK WASHER,#10

Washer, Lock, #10

1шт.

30

196863C1

CABLE ASSY, relay

1шт.

31

921926C1

SWITCH

RELAY, straw chopper

1шт.

19302R1

NUT

no. 10 cad mach screw type 1

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znp p/hds mach

1шт.

115707

LOCK WASHER,#10

Washer, Lock, #10

1шт.

32

241120R91

RELAY

tailings elevator

1шт.

19302R1

NUT

no. 10 cad mach screw type 1

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znp p/hds mach

1шт.

115707

LOCK WASHER,#10

Washer, Lock, #10

1шт.

33

198036C1

HARNESS ASSY, RH lights and tailings

1шт.

34

196961C2

CABLE, tailings elevator

1шт.

35

574649R91

SWITCH

ASSY, elevator slip clutch alarm

1шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

1шт.

436670

SCREW,Slotted Pan Hd, #6-32 x 1 1/4"

no. 6 x 1-1/4 znp p/hds mach

1шт.

107359H

WASHER, 5/32 x 3/8 x 18 ga znd

1шт.

131044

LOCK WASHER

Lock, #6

1шт.

36

CABLE, tailings elevator ground, use 4 in. of 14 ga from bulk roll marked 995055R1, one 54771R2, terminal

1шт.

37

198039C1

HARNESS ASSY, key switch

1шт.

38

LAMP ASSY, grain tank and unloader, refer to this group under lights, nights light attachment

1шт.

39

CLUTCH, feeder, refer to group 33 under feeder drive

1шт.

40

172025C2

CABLE ASSY, grain tank and unloader, night light attachment

1шт.
