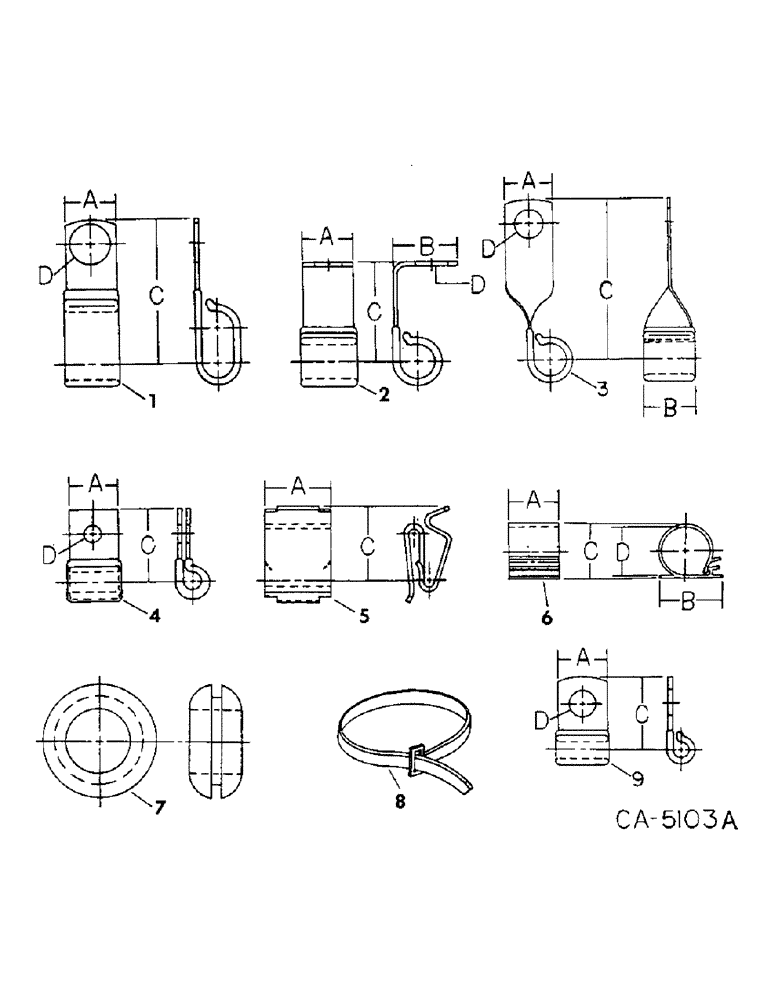

Запчасти Case IH 715 (08-01) - ELECTRICAL, CLIPS, GROMMET AND CABLE TIES (06) - ELECTRICAL

1

362666R1

CLIP

3/4, 2-1/4, 15/32 (I)

1шт.

2

362122R1

CLIP

3/4, 15/16, 1-1/2, 13/32 (I)

1шт.

3

363660R1

CLIP

3/4, 2-5/8, 13/32 (I)

1шт.

4

361656C1

CLAMP,1 3/16", Insul, 3/8" Bolt

3/4, 1-5/8, 13/32 (I)

1шт.

5

164788C1

1/2, 23/32 (I)

1шт.

6

166921C1

1, 1, 1, .41, .25

1шт.

7

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

1/4 diagonal cut rubber

1шт.

7

109390

GROMMET,5/16" ID x 23/32" x .062", Diag Cut

5/16 diagonal cut rubber

1шт.

7

117959

GROMMET,5/16" ID x .719" x .062"

diagonal cut rubber

1шт.

7

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

3/8 diagonal

1шт.

7

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

7/8 diagonal cut rubber

1шт.

8

291207C1

CLAMP

TIE

1шт.

8

702093C1

CABLE TIE

TIE, light cable

1шт.

9

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

3/4, 1-11/16 13/32 (I)

1шт.

9

362126R1

CLIP

3/4, 1-1/8, 13/32 (I)

1шт.

9

362127R1

CLIP

3/4, 1-1/8, 13/32

1шт.

9

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

3/4, 1-1/2, 13/32 (I)

1шт.
