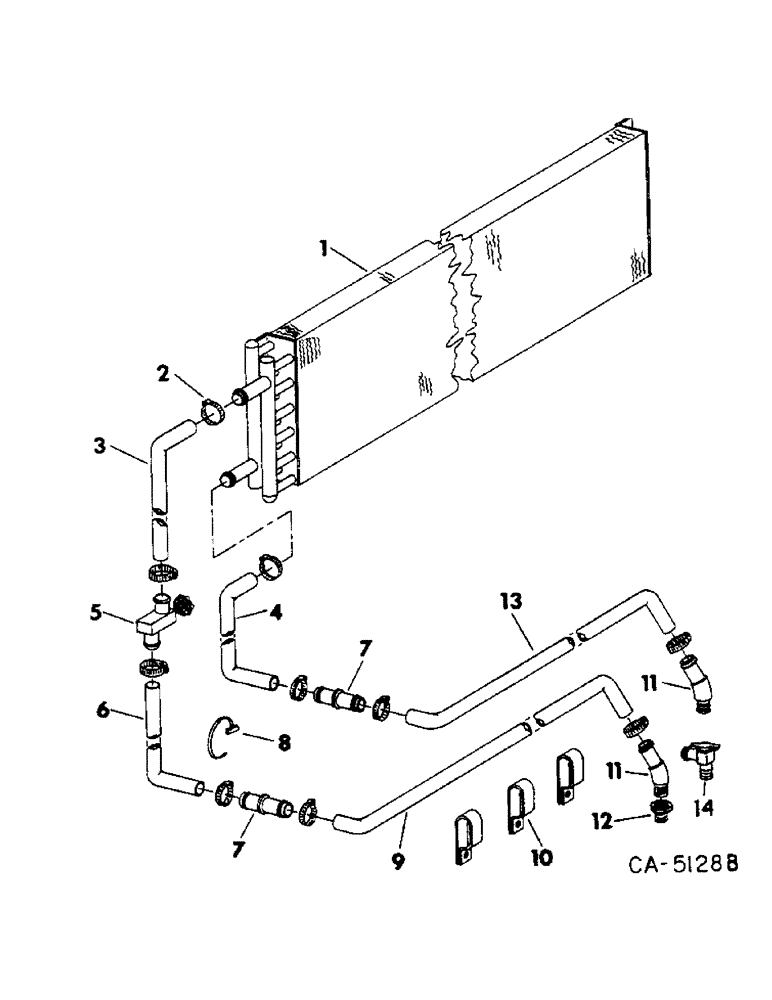

Запчасти Case IH 715 (13-14) - SUPERSTRUCTURE, HEATER HOSE, FITTING AND VALVE (05) - SUPERSTRUCTURE

1

173914C1

CORE ASSY, heater

1шт.

2

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, heater hose

10шт.

3

HOSE, heater upper, use 22 in. from bulk roll marked 117724C1

1шт.

4

HOSE, heater outer, use 96 in. form bulk roll marked 117724C1

1шт.

5

173908C1

VALVE

heater shut-off

1шт.

6

HOSE, heater lower, use 73 in. from bulk roll marked 117724C1

1шт.

7

173898C1

FITTING

ADAPTER, heater hose

2шт.

8

702093C1

CABLE TIE

STRAP, hose ty

2шт.

9

HOSE, heater, use 140 in. from bulk roll marked 117724C1

1шт.

10

154695C1

CLAMP

hose

3шт.

11

864449R1

ELBOW

1/2 - deg, serial no. 26000 and below

2шт.

12

NLS

NO LONGER SERVICED

ADAPTER, 1-1/4 x 3/8 reducing pipe

1шт.

13

HOSE, heater, use 156 in. of 5/8 ID from bulk roll marked 117724C1

1шт.

14

301803R91

VALVE

shut off, serial no. 26001 and above

2шт.
