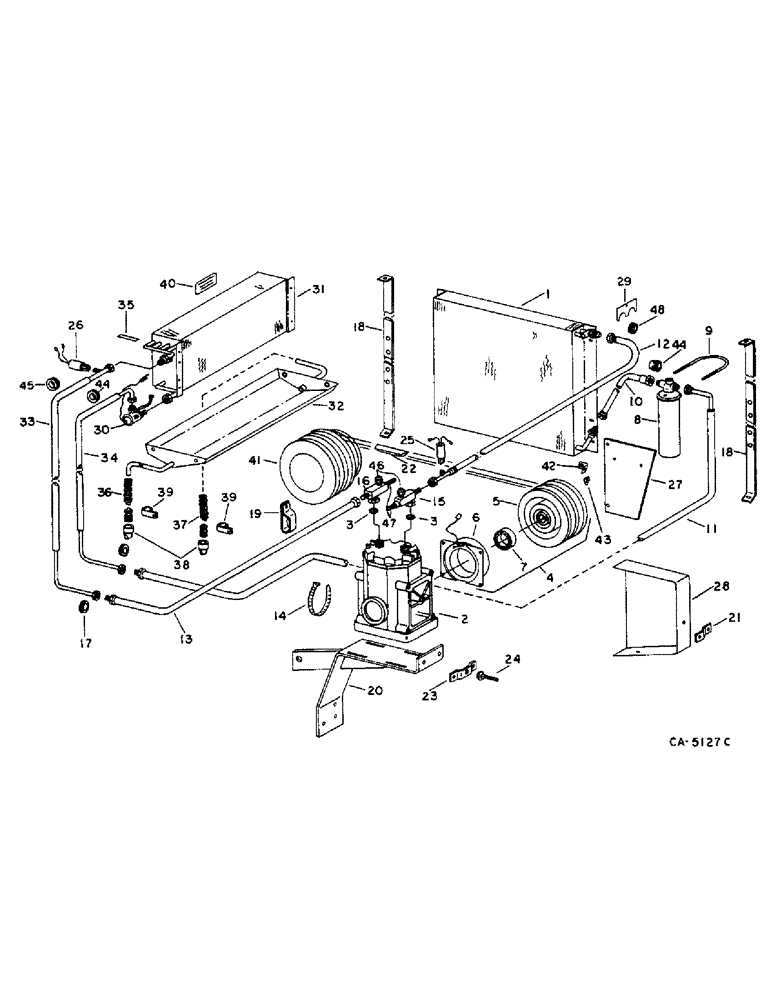

Запчасти Case IH 715 (13-12) - SUPERSTRUCTURE, AIR CONDITIONER AND EVAPORATOR (05) - SUPERSTRUCTURE

1

165130C91

COIL

CONE ASSY, condesor

1шт.

2

118250C91

COMPRESSOR

Compressor, A/C

1шт.

2

1924006C2

REMAN-A/C COMPRESSOR

Reman For New PN 118250C91

1шт.

2

1924007C1

CORE-A/C COMPRESSOR

Return Number

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

BOLT, 3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20803R1

WASHER

WASHER, .406 x 1.000 x .105

1шт.

3

431762C1

GASKET

GASKET, service valve

2шт.

21247R1

DOWEL,1/8" x 3/4"

PIN, 1.8 x .750 pln hdn dowel

1шт.

20641R1

SCREW

SCREW, 5/16 x 1-3/8 pln h/hd mach

1шт.

374805R1

12 PT SCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

SCREW, 5/16 x 1.500 type 8 12 pt flg

1шт.

4

111631C91

CLUTCH/Retired CLUTCH ASSY, compressor, includes ref. nos. 5 and 6

1шт.

5

117820C1

PULLEY

PULLEY ASSY, w/bearing, includes ref. no. 7

1шт.

6

117822C1

COIL

COIL ASSY, field

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 type 1

1шт.

181610

SCREW,Hex, 5/16" - 24 x 1 1/4", Gr 5

BOLT, 5/16-NF x 1-1/4 type 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22859R1

WASHER

WASHER, .344 x .750 x 164

1шт.

7

221438H1

BEARING ASSY,29.99mm ID x 62mm OD x 26.99mm W

BEARING, double row ball

1шт.

8

175254C1

TANK

DEHYDRATOR ASSY, receiver

1шт.

9

165164C1

BOLT

SPARE PART BOLT, receiver dryer filter u

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

NUT, 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

167888C1

HOSE ASSY.

HOLE ASSY, condensor to dryer filter

1шт.

11

196610C2

HOSE ASSY.

HOSE, discharge A/C

1шт.

12

187854C1

HOSE

HOLE ASSY, Serial Range: condensor-compressor

1шт.

13

196609C2

HOSE ASSY.

HOSE, suction

1шт.

14

702093C1

CABLE TIE

CABLE STRAP STRAP, hose tie

9шт.

15

399419R1

VALVE

VALVE ASSY, service, includes ref. nos. 46 and 47

1шт.

16

175086C1

LOCK VALVE

VALVE ASSY, service, includes ref. nos. 46 and 47

1шт.

17

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

GROMMET, 7/8 ID

2шт.

18

188514C1

SPARE PART SUPPORT, condensor

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 znp slt-truss-hd

1шт.

19

154695C1

CLAMP

CLAMP, cab to compressor hose

1шт.

20

190739C1

SPARE PART SUPPORT ASSY, compressor mounting

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4 type 1

1шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

BOLT, 5/8 x 1-3/4 type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

131165

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

21

190748C1

SPARE PART SUPPORT, shield rear

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

120376

NUT,5/16"-18, G5

NUT, 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

394013R1

V-BELT,0.50" W x 53.00" L

Compressor drive

1шт.

23

165125C1

SPARE PART STRAP, compressor tightener

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

166048C1

SPARE PART BOLT, compressor draw

1шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

25

111266C1

SWITCH, A/C HIGH PRE

SWITCH, high pressure

1шт.

26

111267C2

SWITCH

SWITCH, low pressure

1шт.

27

165165C91

SPARE PART SUPPORT ASSY, reciever dryer filter

1шт.

28

190794C1

SPARE PART SUPPORT, compressor drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT, 5/16 flange lock

1шт.

632277R1

SCREW, 5/16 x 3/4 znp slt-truss-hd

1шт.

29

159940C1

BAR

COVER, air chute tube opening

2шт.

145189

SCREW, no. 10-16 x 3/8 p/hds tap

1шт.

30

66398C1

VALVE

VALVE, expansion

1шт.

31

173915C1

CORE

CORE, evaporator

1шт.

32

175802C1

SPARE PART PAN, evaporator drain

1шт.

33

187583C1

HOSE

HOSE, air conditioner upper

1шт.

Note - Ref #33 & #34 should be reversed in the Artwork 11/17/95

1шт.

34

187584C1

HOSE

HOSE, air conditioner lower

1шт.

35

118463C1

TAPE, insulation

1шт.

36

HOSE, drain, use 76 in. form bulk stock marked 198191C1

1шт.

37

HOSE, drain, use 109 in from bulk stock marked 198091C1

1шт.

38

109239C2

CHECK VALVE

VALVE, CHECK, Drain hose

2шт.

39

362666R1

CLIP

CLIP, condensate hose RH

3шт.

40

2750450R2

SPARE PART PRODUCT GRAPHIC, important

1шт.

41

DAMPER AND PULLEY ASSY, refer to group 12 under engine belt diagram

1шт.

42

187703C1

ANGLE

ANGLE, condensor tube bracket

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, condensor tube bracket

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

SCREW, 1/4 x 3/4 slt-truss-hd

1шт.

43

589980R2

CLIP

CLAMP, condensor tube

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

NUT, 1/4 flange lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

SCREW, 1/4 x 3/4 slt-truss-hd

1шт.

44

166868C1

GROMMET

GROMMET, 1.0 in. ID

2шт.

45

173895C1

GROMMET

GROMMET, 3/4 in. ID

1шт.

46

118188C1

CAP

CAP, seal

2шт.

47

118185C1

CAP ASSY.

CAP ASSY, valve stem

2шт.

48

115329R1

GROMMET

GROMMET, 1.0 in. ID

1шт.

428606C91

SEAL

KIT, shaft seal front consists of

1шт.

431760C2

GASKET

GASKET, base

1шт.

431757C1

HOUSING

HOUSING, rear bearing

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

WOODRUFF KEY, #6, 5/32" x 5/8", HT

1шт.

431764C1

SEAL,8.484mm ID x 1.778mm Width

O-RING, plug

2шт.

431763C1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

O-RING, seal

1шт.

431755C1

PLATE

SPARE PART PLATE, base

1шт.

86982693

PLUG

PLUG

2шт.

21024R1

SCREW

SCREW, 1/4-20 x 5/8 hex-hd

14шт.

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

SCREW, 10-24 x 1/2 hex-hd cap,Course threads

6шт.

394430C91

KIT

KIT, valve plate, consists of

1шт.

431761C1

CYLINDER HEAD GASKET

GASKET, cylinder

1шт.

431756C1

CYLINDER HEAD GASKET

GASKET, head

1шт.

479011C91

KIT

KIT, cylinder head consists of

1шт.

431761C1

CYLINDER HEAD GASKET

GASKET, cylinder

1шт.

431756C1

CYLINDER HEAD GASKET

GASKET, head

1шт.
