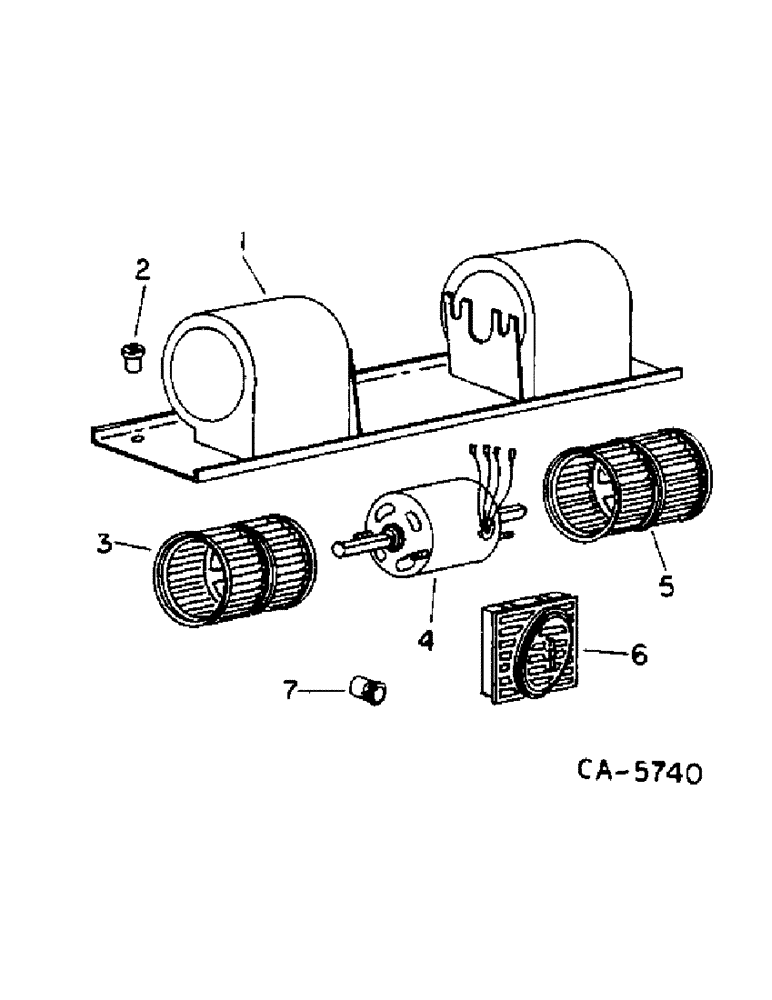

Запчасти Case IH 715 (13-11) - SUPERSTRUCTURE, BLOWER, OPERATORS CAB (05) - SUPERSTRUCTURE

175576C91

BLOWER

ASSY, includes ref. nos. 3, 4 and 5

1шт.

1

HOUSING, blower, not serviced separately order 175576C91 blower assy

1шт.

2

175578C1

INSULATOR

NUT, blower mounting

8шт.

3

174922C1

RIM

WHEEL, fan LH

1шт.

4

175577C1

MOTOR

blower

1шт.

5

175310C1

RIM

WHEEL, fan RH

1шт.

6

69526C2

VENT

LOUVER ASSY

5шт.

7

111282C1

KNOB

switch

1шт.
