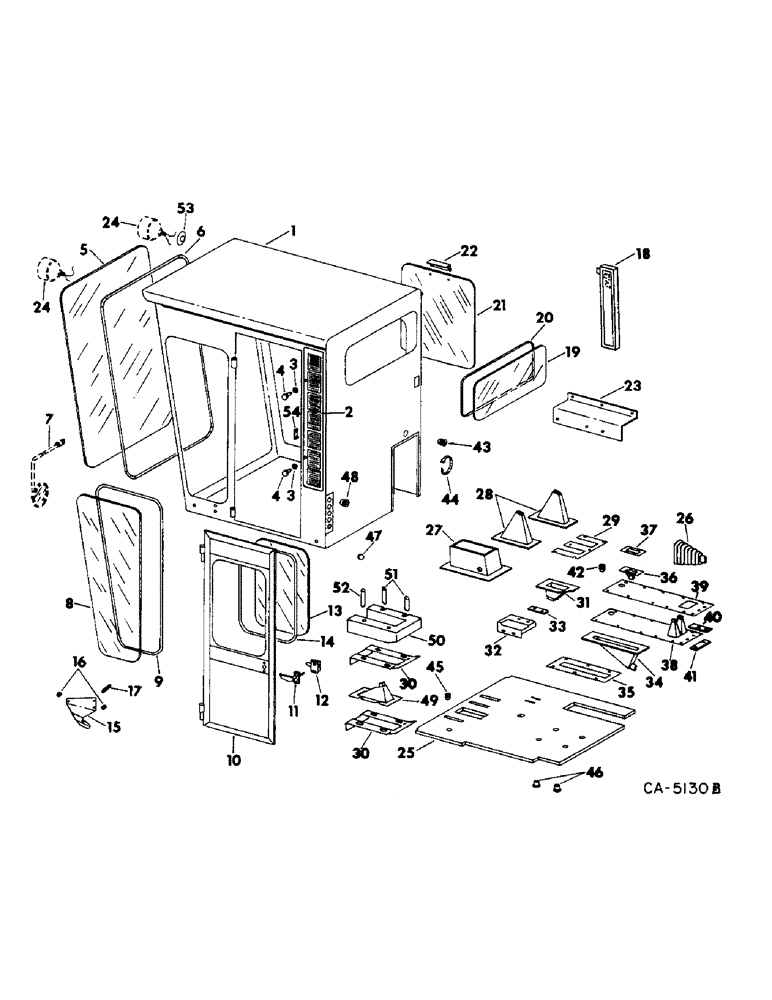

Запчасти Case IH 715 (13-08) - SUPERSTRUCTURE, OPERATORS CAB (05) - SUPERSTRUCTURE

1

187627C93

CAB ASSY, operators

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 crg type 1

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

2

183744C91

DOOR ASSY, filter, includes ref. nos. 3 and 4

1шт.

Filter is 537268R2

1шт.

3

183754C1

WASHER

filter door

2шт.

4

183753C1

FASTENER

filter door

2шт.

5

150972C1

GLASS

windshield

1шт.

6

SEAL, windshield, use 180 in. from a 50 ft roll marked 64516C1

1шт.

7

MIRROR ASSY, LH, refer to this group under rear view mirror

1шт.

8

150971C1

GLASS, front side window

2шт.

9

SEAL, front side window, use 174 in. from a 50 ft roll marked 64516C1

1шт.

10

183771C91

DOOR ASSY, includes ref. nos. 11 thru 13

1шт.

11

393237R91

HANDLE

ASSY, door

1шт.

12

159195H1

LOCK ASSY

LATCH, door

1шт.

13

150967C1

GLASS, door

1шт.

14

SEAL, door window glass, use 79 in. from a 50 ft roll marked 64516C1

1шт.

15

196701C1

SUPPORT, door stop

1шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

3/8 x 1-1/4 slt-truss-hd

1шт.

16

27251K

SPACER,5/8" Tube x 7/16"

.407 ID x 6.25 OD x .438

2шт.

178372R1

WASHER

.406 x 1.250 x .054

1шт.

464623R1

WASHER

.656 x 1.500 x .105

1шт.

17

M296

SPRING

1шт.

18

537268R2

FILTER

5 x 38 x 2.19

1шт.

19

166504C1

GLASS, rear window

1шт.

20

SEAL, rear window, use 96 in. from a 50 ft roll marked 64516C1

1шт.

21

150973C1

GLASS, sliding window

1шт.

22

156188C91

KIT, window pull, consist of (1) angle, (2) nut no. 10-24, (2) screw no. 10-24 x 5/8 pan, (1) shim, (2) spacer, (2) washer

1шт.

23

171218C2

ANGLE, cab support

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

24

LIGHT ASSY, night, refer to group 8 under lights, mountings and brackets

1шт.

25

196505C2

MAT

floor

1шт.

26

195944C1

INSULATOR

separator clutch

1шт.

27

195946C1

INSULATOR

steering pedestal base

1шт.

28

195948C1

INSULATOR

brake pedal

2шт.

29

195981C1

SUPPORT, brake pedal boot hold down

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

3/8 x 1 slt-truss-hd

1шт.

30

187860C1

SUPPORT, boot clamp

2шт.

31

195947C2

INSULATOR, parking brake control

1шт.

32

195975C2

SUPPORT, parking brake retainer

1шт.

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

33

195976C1

BAR, parking brake boot filler

1шт.

34

195949C1

INSULATOR, unloader control lever

1шт.

35

195979C2

BAR

unloader control boot retainer

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

36

195950C1

INSULATOR, propulsion control pedal

1шт.

37

195978C1

BAR, propulsion pedal boot hold down

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

38

195955C1

INSULATOR, lower right console

1шт.

39

195982C1

STRIP, right console bottom

1шт.

40

195977C1

BAR, right console boot hold down

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 znp slt-truss-hd

1шт.

41

195703C1

BAR

right console boot repair hold down

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znp slt-truss-hd

1шт.

42

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

3/8 ID

1шт.

43

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

3/4 ID

2шт.

44

702093C1

CABLE TIE

STRAP, tie

4шт.

45

195800C1

GROMMET

1 in. plug

1шт.

46

198830C1

ROUND NUT

INSULATOR, seat mount

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

614452R1

WASHER

.406 x 1.250 x .090

1шт.

47

432487

HOLE PLUG BUTTON,11/16"

PLUG, 11/16 button

1шт.

47

192769

PLUG,3/4"

(button) 3/4"

1шт.

188003

PLUG,7/16"

7/16 button

2шт.

48

173893C1

GROMMET

3/8 ID

1шт.

48

173894C1

GROMMET

5/8 ID

1шт.

49

187732C1

INSULATOR

foot pedal clutch

1шт.

50

187861C1

STRIP, foot pedal boot

1шт.

51

23929S

SPACER,3/8" Pipe x 1 7/8"

3/8 x 1.875 std pipe

2шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8 x 3-1/4 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

52

11531N

SPACER,3/8" Pipe x 2"

3/8 x 2 std pipe

2шт.

20628R1

BOLT,Hex, 3/8"-16 x 3 1/4", G2

3/8 x 3-1/4 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

53

196700C1

FLANGE

RETAINER, headlight washer

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

54

392801R1

STRIKER PLATE

PLATE, door striker

1шт.

SEAL, cab to deck, not illustrated, use 160 in. of 1/8 x 5 in. from bulk caulking compound

1шт.
